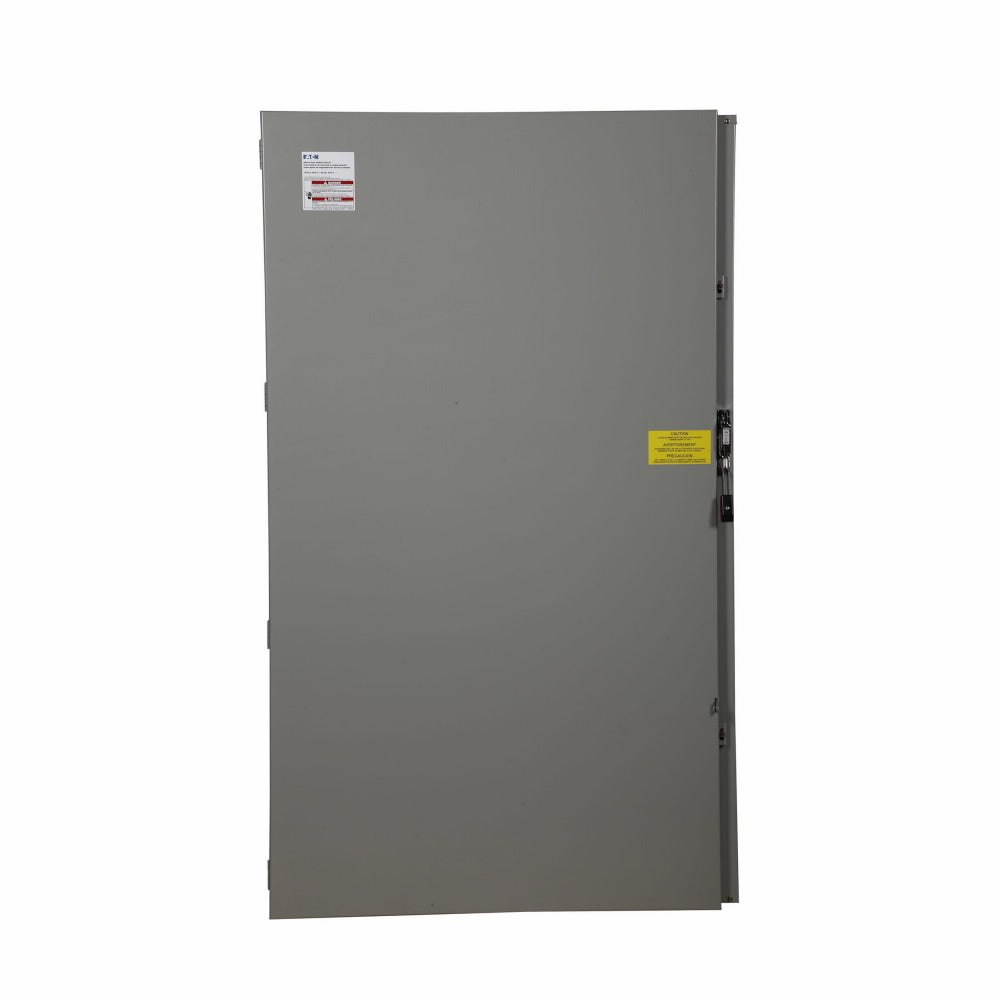

Cutler Hammer DH368UGK is a heavy-duty industrial disconnect switch designed for the safe isolation of three-phase electrical circuits. It provides reliable circuit protection with a 600V voltage rating and a 1200A current rating, housed within a robust NEMA 1 enclosure measuring 17.12" D x 70.97" H x 43.12" W and weighing 430 lb. The switch is UL Listed and features a NEC 230.62 (C) compliant barrier, ensuring adherence to critical safety standards for service equipment. Its non-fusible, three-pole, single-configuration design with a 200kA interrupting rating at 600V makes it suitable for main service disconnects and feeder circuits in industrial power distribution.
Key Features & Specifications
Type: DH Series, Non-Fusible Disconnect Switch
Voltage Rating: 600V AC
Current Rating: 1200A
Configuration: Single
Poles: 3
Phase: 3
AIC Rating: 200kA @ 600V
Switch Style: Non-Fusible
NEMA Rating: NEMA 1
Dimensions: 17.12 in (D) x 70.97 in (H) x 43.12 in (W)
Weight: 430 lb
Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
