Eaton DH366NGK - Fusible Safety Switch 600A 600V (100kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

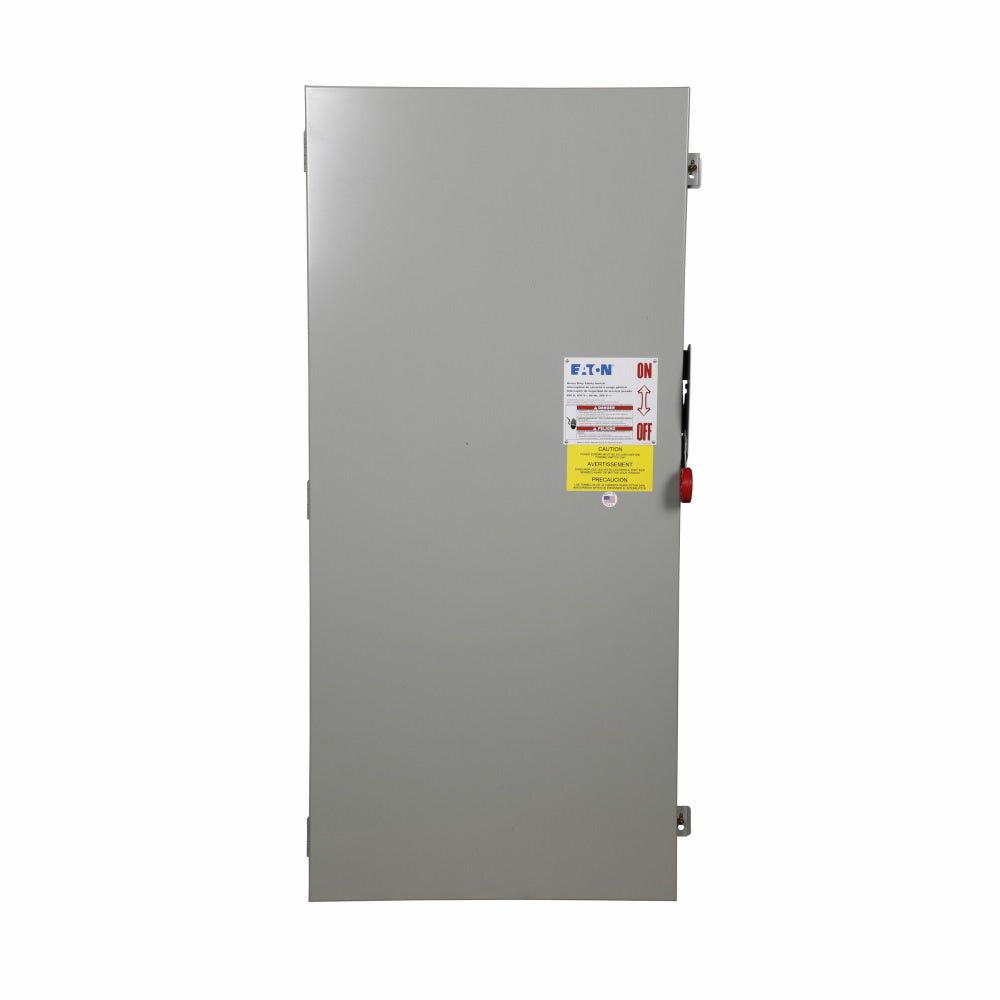

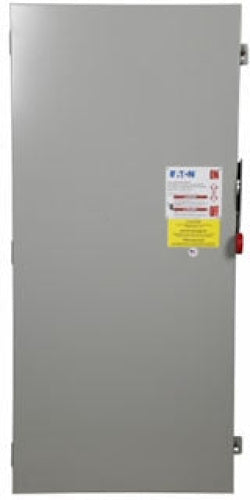

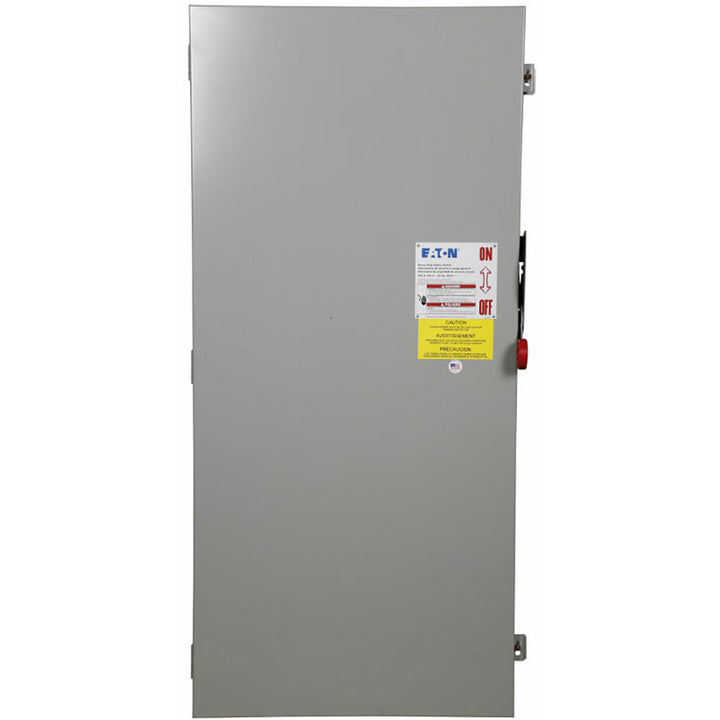

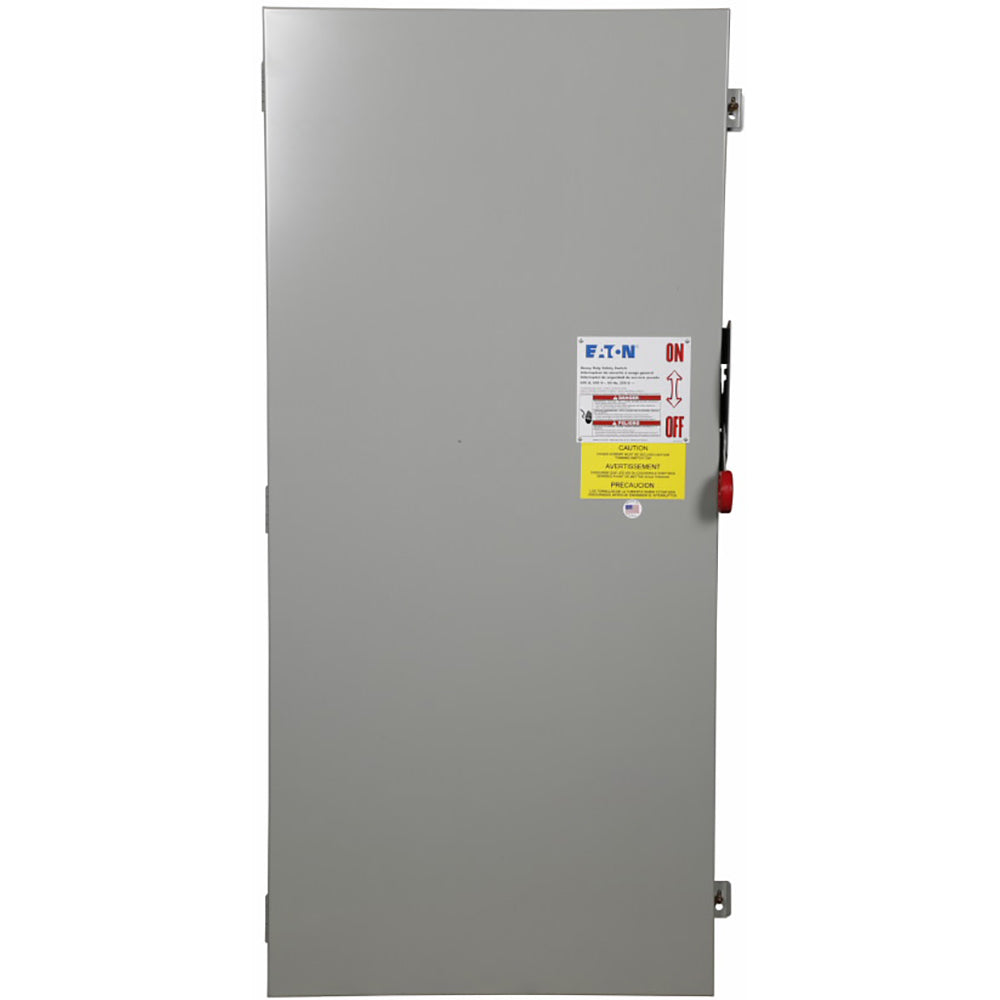

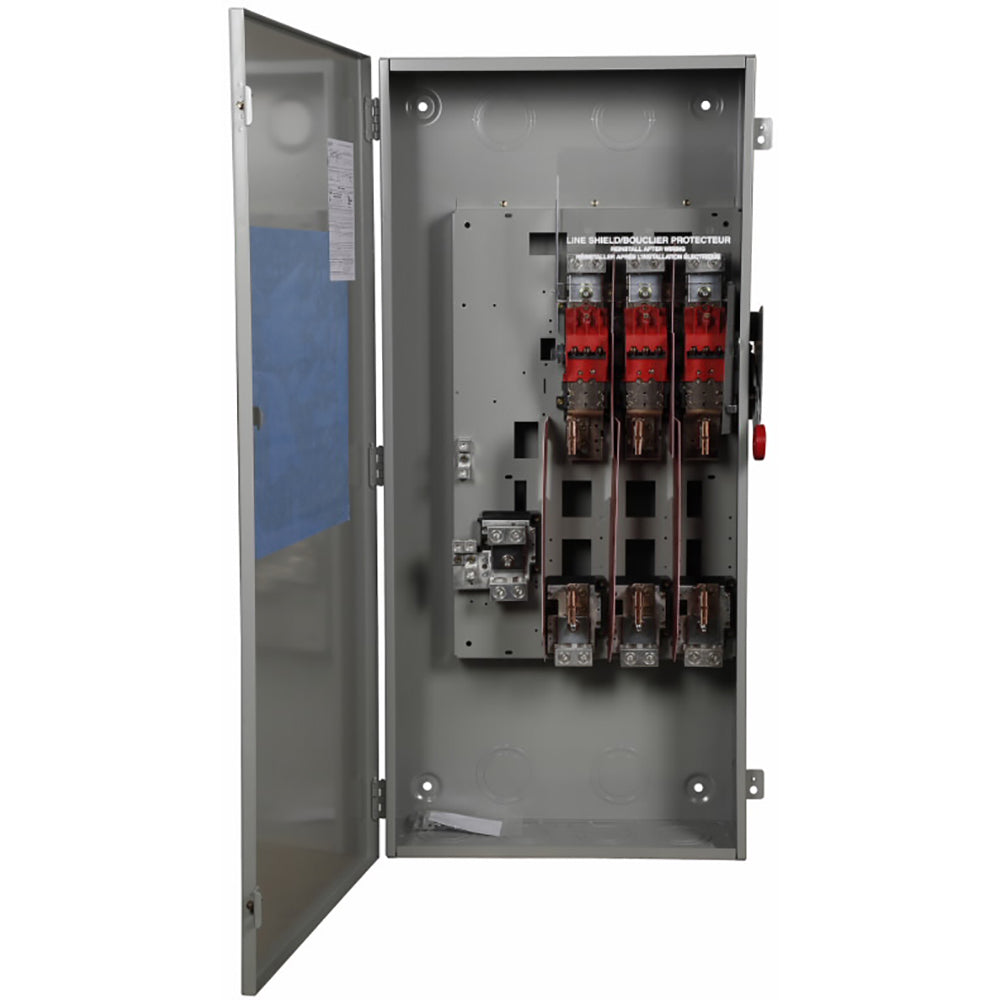

The Eaton DH366NGK is a heavy-duty fusible safety switch designed to provide reliable circuit isolation and protection in industrial power distribution systems. It is rated for 600V AC and 600A, featuring a robust three-pole, single-configuration design within a NEMA 1 enclosure for indoor use. Constructed with durable materials, this unit measures 58" x 12" x 27.5" (LxHxW) and weighs 120 lb, engineered to withstand demanding electrical environments. It is UL Listed and offers an interrupting capacity of 100kA at 600V when used with Class R fuses. This disconnect switch is typically applied in industrial facilities, data centers, and large commercial buildings for main feeder and branch circuit protection.

Key Features & Specifications
  • Type: DH Series, Fusible Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 58 in (L) x 12 in (H) x 27.5 in (W)
  • Weight: 120 lb
  • Standards: UL Listed
  • Applications: Main Feeder & Branch Circuit Protection
  • Switch Style: Fusible
  • Configuration: Single
  • AIC Rating: 100kA @ 600V
  • Poles: 3
  • Phase: 3
  • NEMA Rating: NEMA 1
  • Fuse Class: R
  • Country of Origin: United States


Product Identification
  • UPC: 782113207599
  • GTIN: 00782113207599
