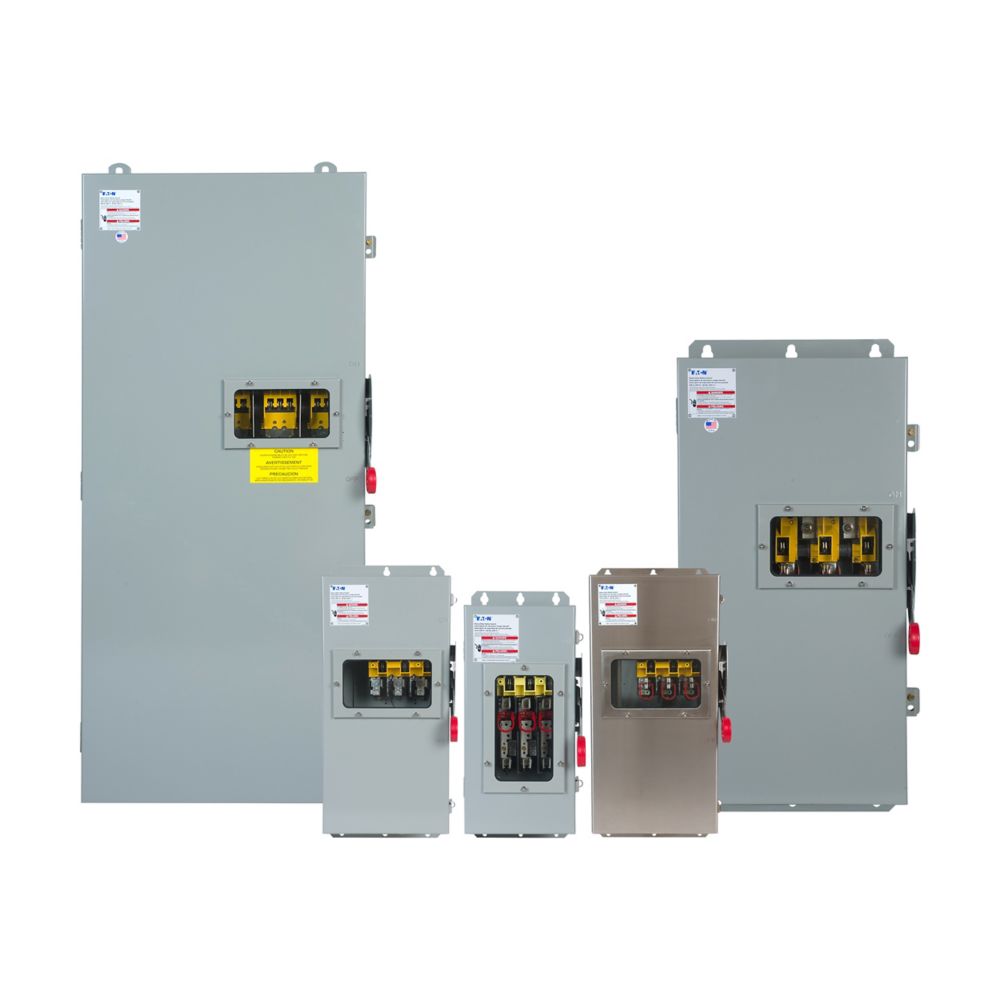

Cutler Hammer DH364UDKW - Non-Fusible Disconnect Switch 200A@600V (200kA AIC, NEMA 12)

Cutler Hammer DH364UDKW is a non-fusible disconnect switch designed for industrial power distribution systems requiring 600V protection. This UL-listed, NEMA 12-rated switch delivers 200A current capacity with a 200kA interrupting rating at 600V, housed in a robust 16" x 11.5" x 34.38" (WxDxH) enclosure weighing 50 lb. Compliant with NEC 230.62(C) barrier requirements, it features a 3-pole single configuration for three-phase circuits and is compatible with TJK frames for panel integration.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch with NEC-compliant barrier
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 16" x 11.5" x 34.38" (WxDxH)
• Standards: UL Listed, NEC 230.62(C)
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• AIC Rating: 200kA@600V
• NEMA Rating: NEMA 12
• Phase: 3
• Compatible Frames: TJK
• Wire: 3
• Country of Origin: United States

Product Identification

• UPC: 782114140833
• GTIN: 00782114000000
