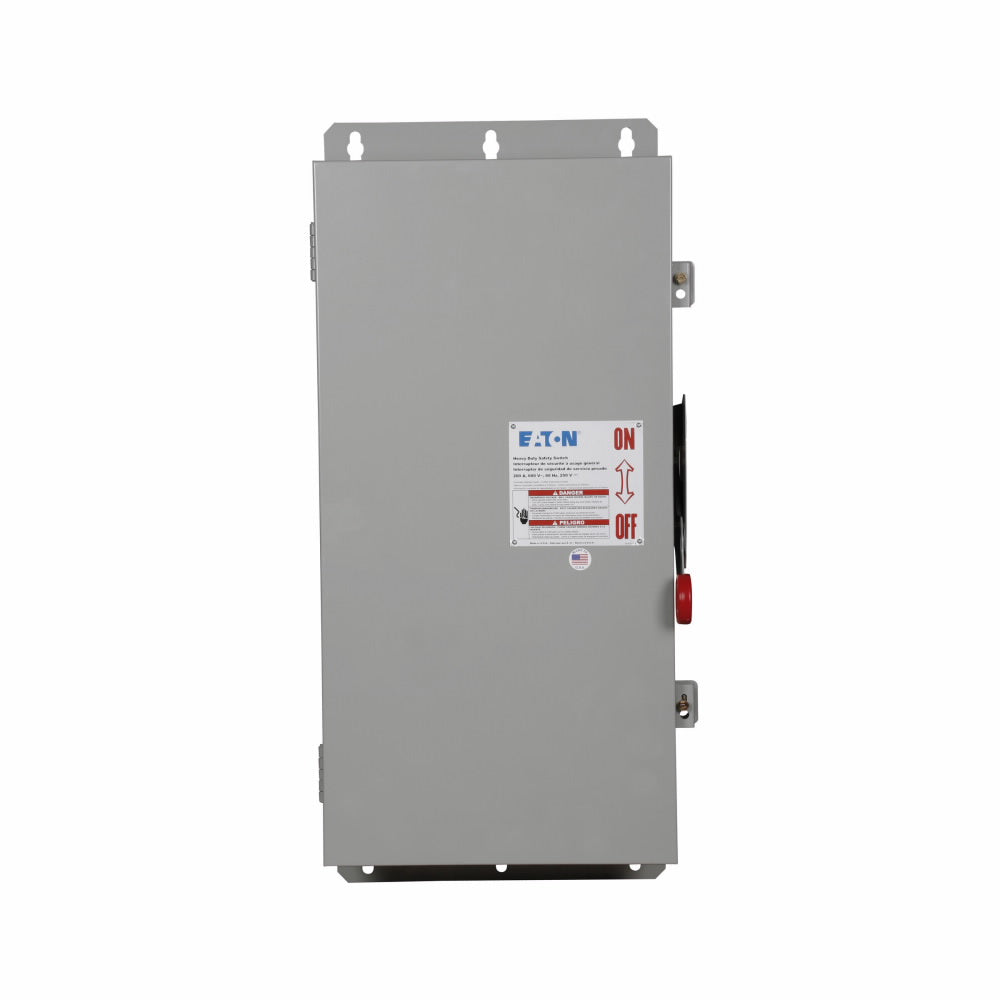

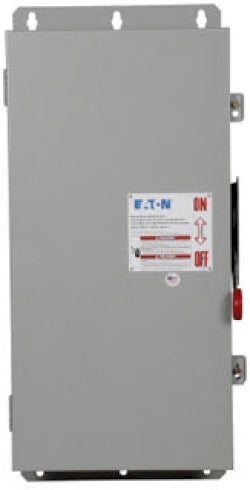

Cutler Hammer DH364UDK - Non-Fusible Disconnect 200A 600V 3P

Eaton
Price
Save $783.85
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler Hammer DH364UDK is a heavy-duty, non-fusible disconnect switch designed for the safe isolation of three-phase electrical circuits up to 200A. It is rated for 600V AC systems and features a robust 200kA interrupting capacity at that voltage for reliable protection. The unit is constructed with a durable NEMA 12 enclosure measuring 11.5" D x 34.38" H x 16" W and weighs 55 lb, providing a secure and compliant barrier as per NEC 230.62(C). This disconnect is UL Listed and is typically applied in industrial power distribution, motor control centers, and as a service entrance disconnect where a visible break is required.

Key Features & Specifications
  • Type: DH Series, Non-Fusible Disconnect Switch, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 11.5 in (Depth) x 34.38 in (Height) x 16 in (Width)
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Industrial Power Distribution, Motor Control, Service Entrance
  • Switch Style: Non-Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 12
  • Weight: 55 lb
  • Country of Origin: United States


Product Identification
  • UPC: 782113206882
  • GTIN: 00782113206882
