Cutler Hammer DH364NGK - Fusible Safety Switch, 600V 200A 3-Pole

Eaton
Price
Save $2,467.83
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

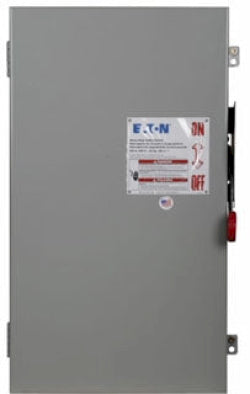

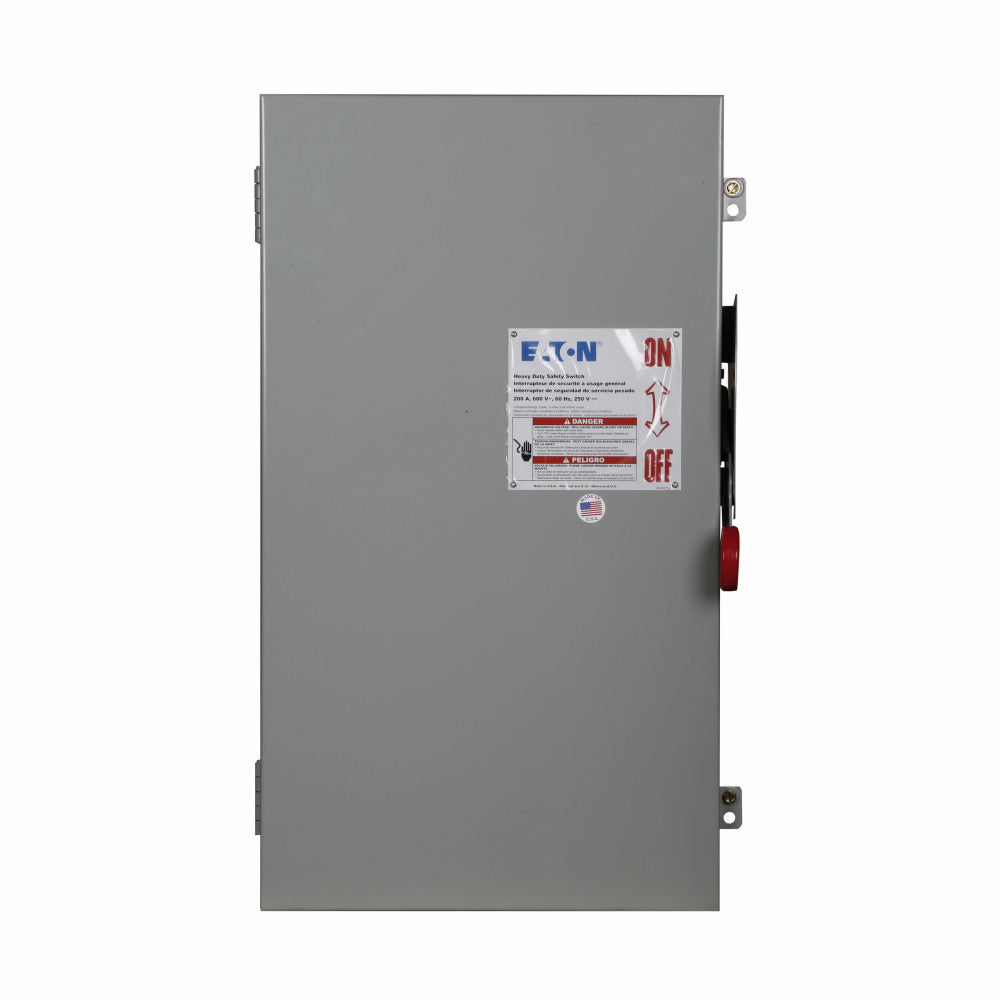

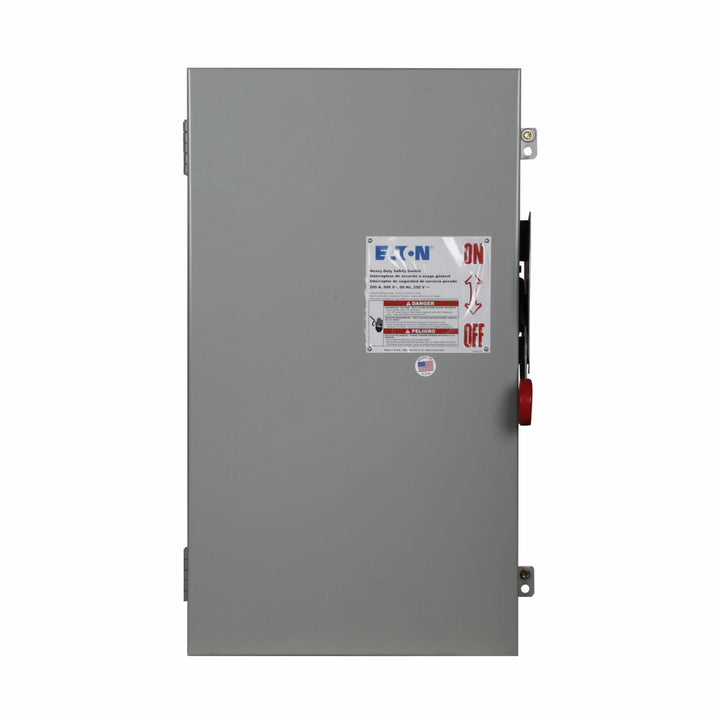

Cutler Hammer DH364NGK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 200A, featuring a robust three-pole, single-configuration design with a 200kA interrupting capacity at its rated voltage. The switch is constructed with a NEMA 1 enclosure measuring 30" x 9.5" x 18" (LxHxW) and a weight of 38 lb, utilizing Class R fuses and accommodating wire sizes from 6 to 250 kcmil for copper or aluminum conductors. It complies with UL standards and NEC 230.62(C) for barrier requirements, ensuring safe operation. Typical applications include service entrance equipment, motor control centers, and main disconnects for machinery and industrial panels.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, DH Series
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: 6-250 kcmil Cu/Al
  • Switch Style: Fusible
  • NEMA Rating: NEMA 1
  • Enclosure Dimensions: 30 in x 9.5 in x 18 in (LxHxW)
  • Weight: 38 lb
  • Certification: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Country of Origin: United States


Product Identification
  • UPC: 782113206820
  • GTIN: 00782113206820
