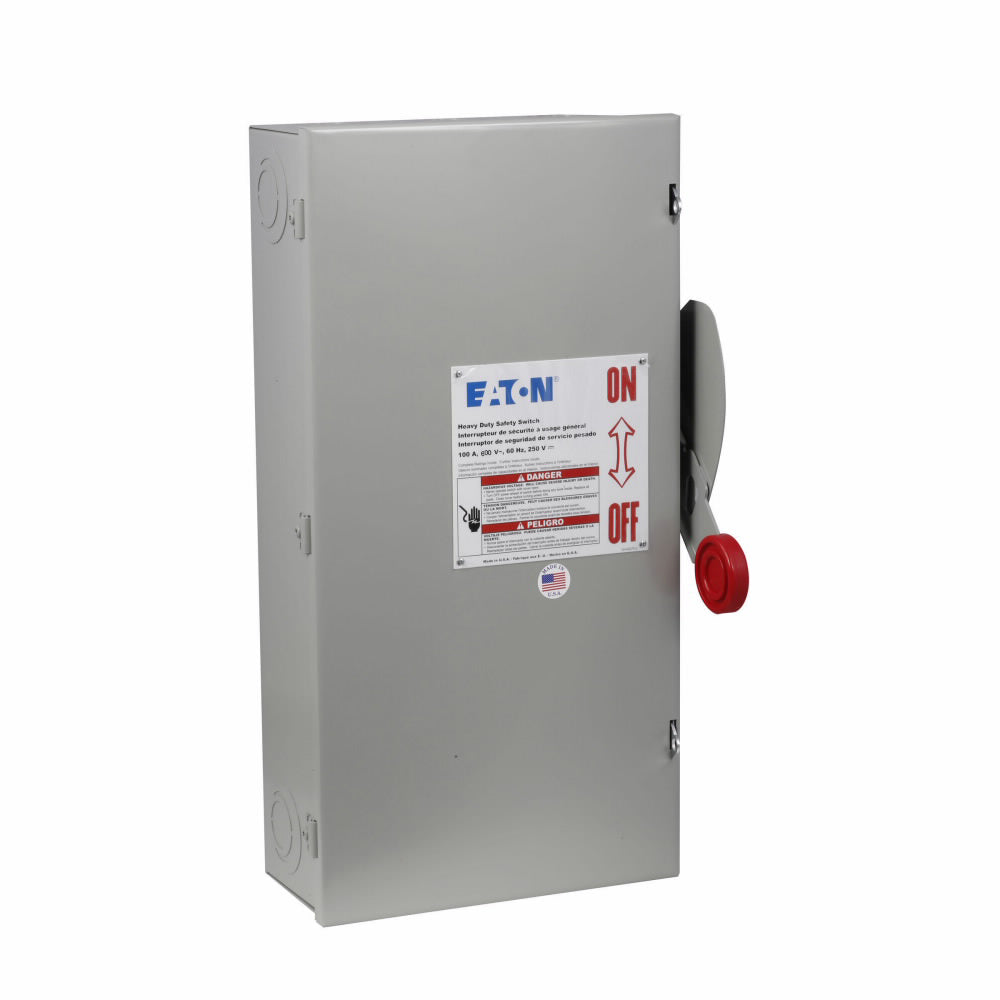

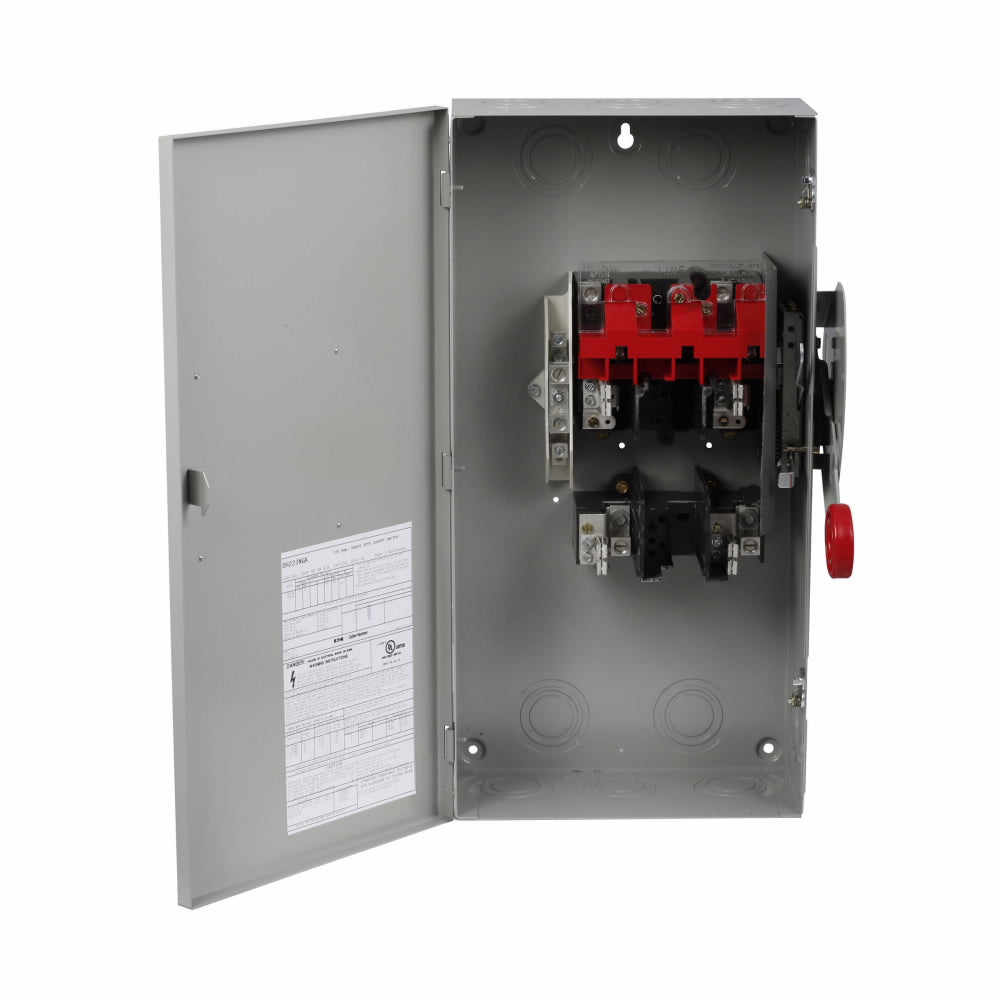

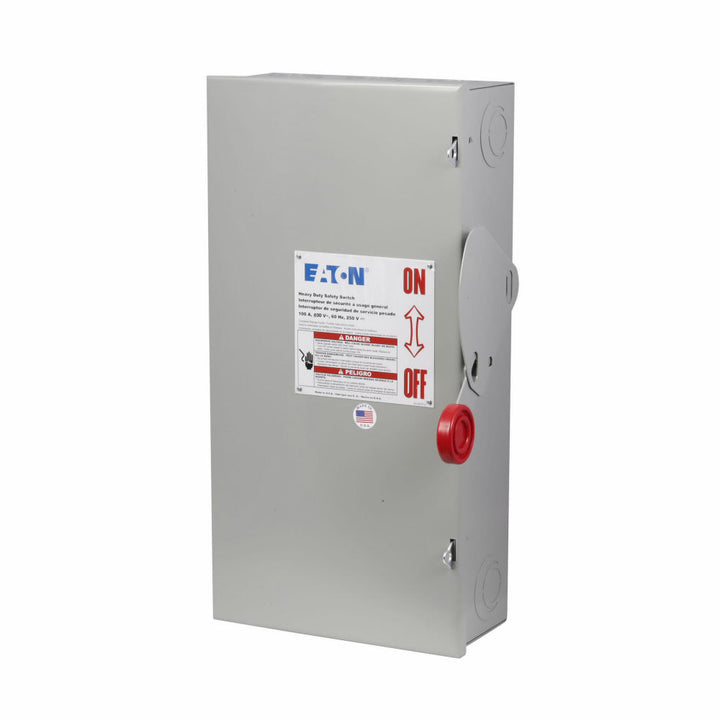

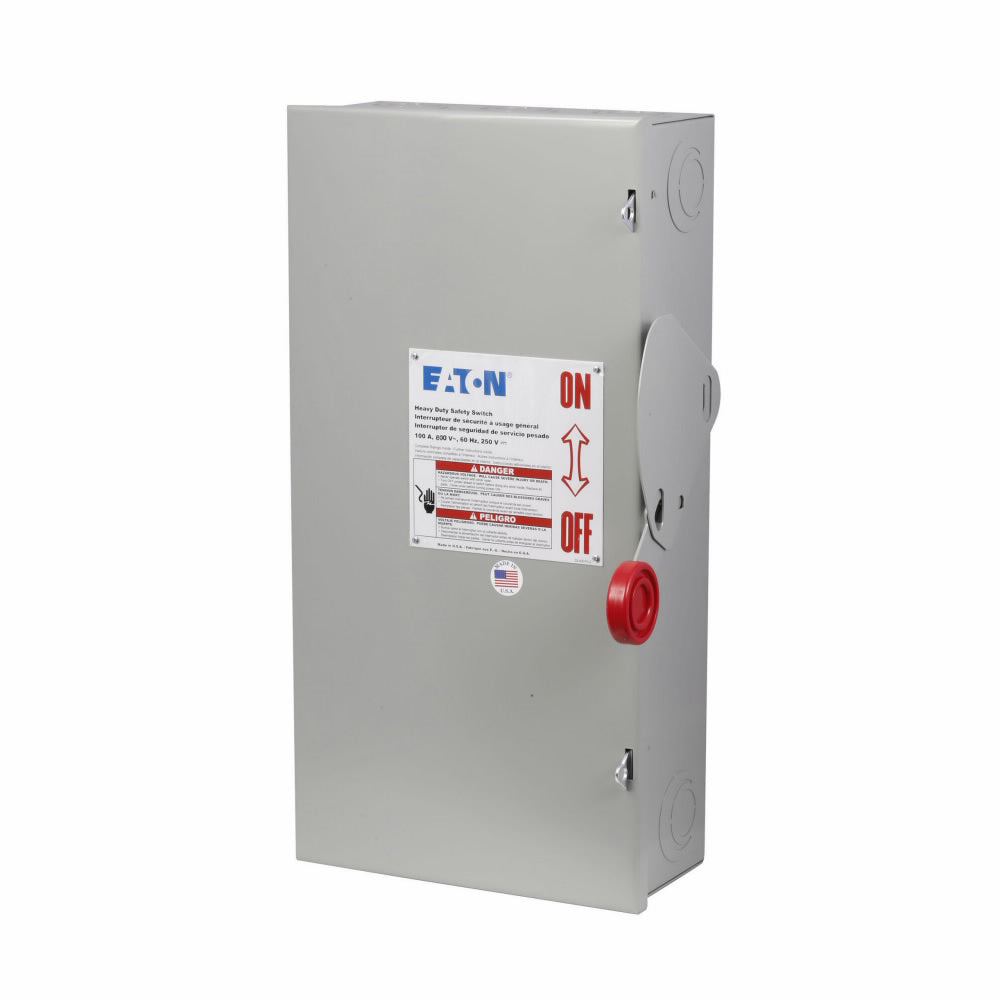

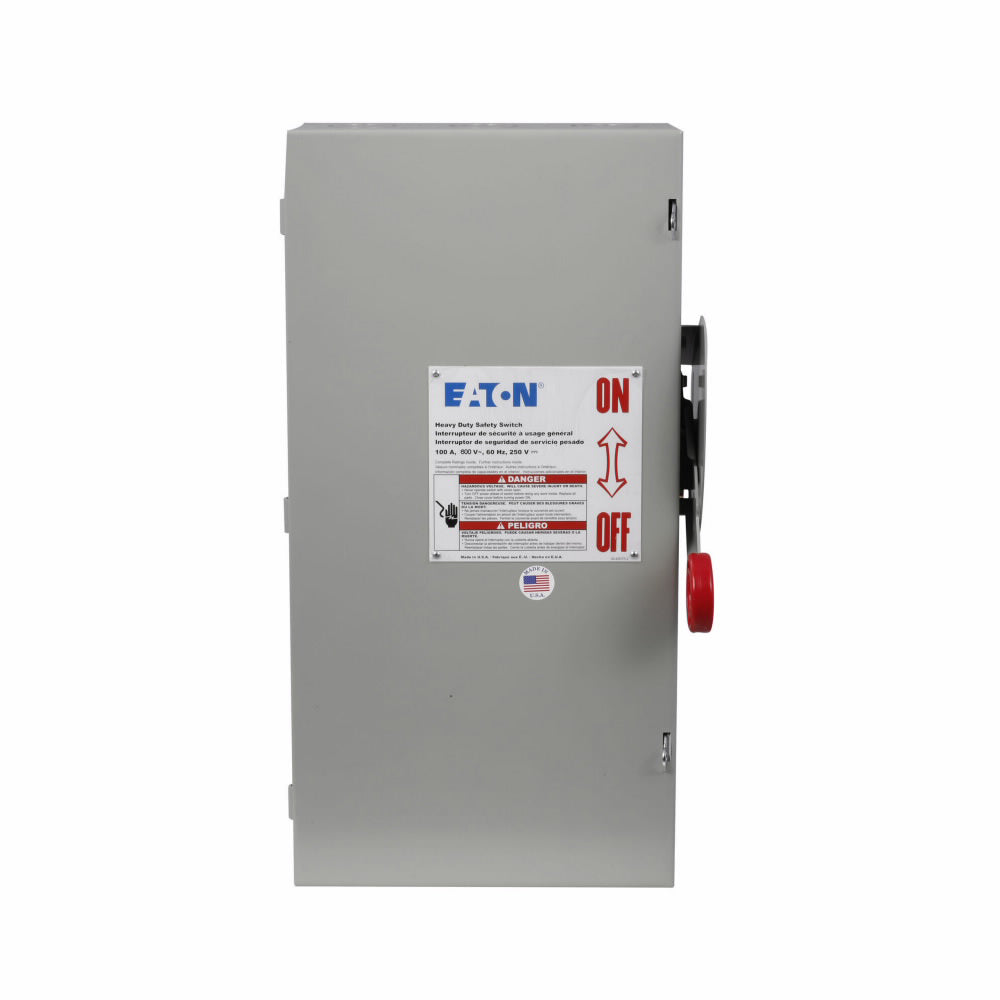

Cutler Hammer DH363FGK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 100A at 600V AC/250V DC and features a robust NEMA 1 enclosure with dimensions of 23.3" x 8.5" x 13" (LxHxW) and a weight of 21.7 lb. The switch is certified to NEMA KS-1, UL98, and UL Listed standards, ensuring reliable performance and safety compliance. Its 100kA interrupting rating at 600V makes it suitable for demanding applications such as motor control centers, industrial machinery, and power distribution panels where high-fault protection is required.
Key Features & Specifications
Type: DH Series, Fusible Safety Disconnect Switch
Voltage Rating: 600V AC / 250V DC
Current Rating: 100 Amps
Configuration: Single, 3-Pole
AIC Rating: 100kA @ 600V
Fuse Class: R
Phase: 3
NEMA Rating: NEMA 1
Dimensions: 23.3 in L x 8.5 in H x 13 in W
Weight: 21.7 lb
Standards: NEMA KS-1, UL Listed, UL98
Compatible Frames: SKPA
Applications: Industrial power distribution, motor control, machinery disconnecting means
