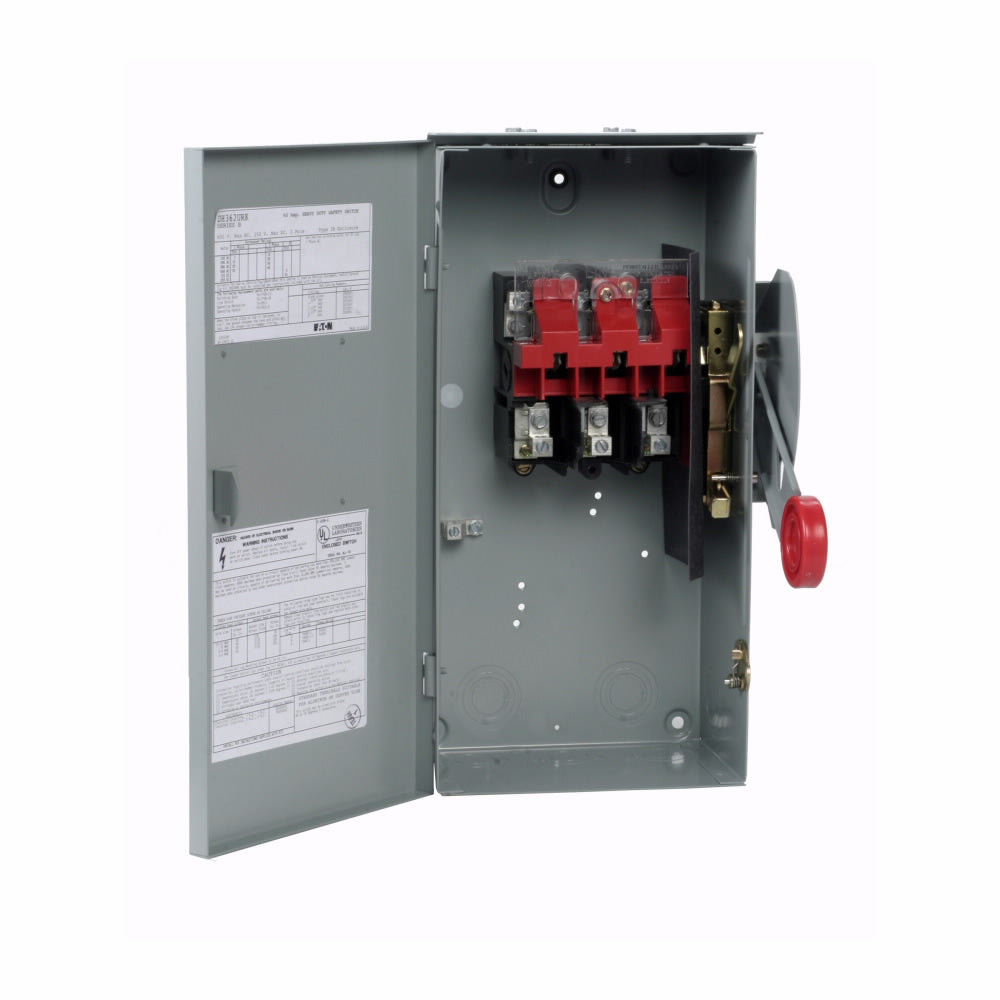

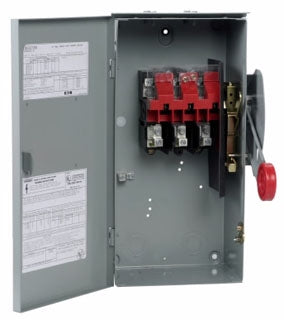

Cutler Hammer DH362URK - Non-Fusible Disconnect Switch 60A 600V AC (3-Pole NEMA 3R)

Cutler Hammer DH362URK is a heavy-duty disconnect switch designed for reliable circuit isolation and load-breaking operations in industrial power distribution systems. This 3-pole switch features a 600V AC/250V DC voltage rating with a 60A current capacity, housed in a robust NEMA 3R enclosure measuring 8.13 x 10 x 15.88 inches (WxDxH) and weighing 16 lb. It meets NEMA KS-1, UL98, and UL Listed standards while providing 200kA interrupting capacity at 600V for superior fault protection. The non-fusible single configuration switch is engineered for three-phase applications including motor control centers, industrial machinery, and power distribution panels where safe maintenance isolation is required.

Key Features & Specifications

• Type: DH Series non-fusible disconnect switch with heavy-duty construction
• Voltage Rating: 600V AC/250V DC
• Current Rating: 60A
• Dimensions: 8.13 in x 10 in x 15.88 in (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Switch Style: Non-Fusible
• Nema Rating: NEMA 3R
• Phase: 3
• Weight: 16 lb
• Family: DH Series
• Country of Origin: United States

Product Identification

• UPC: 782113206028
• GTIN: 00785901995166
