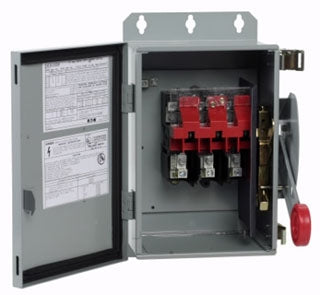

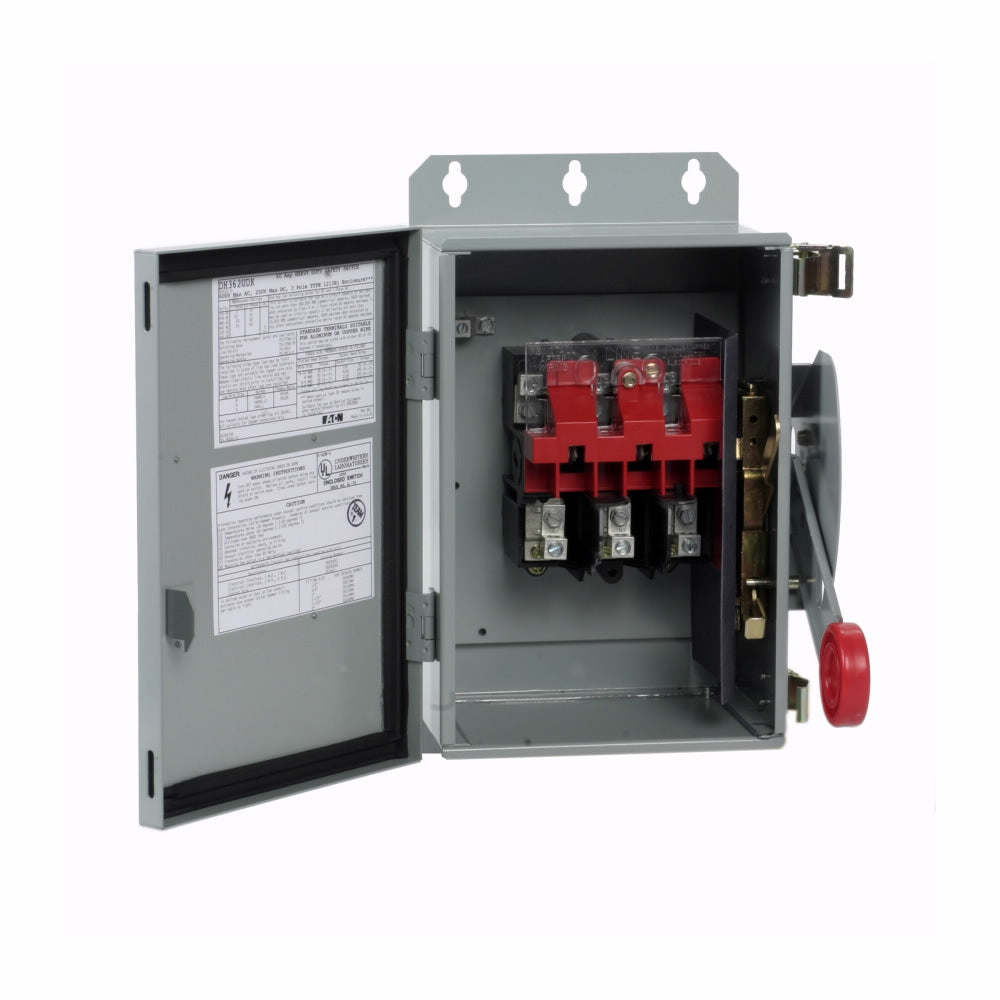

Cutler Hammer DH362UDK - Non-Fusible Disconnect Switch 60A 600V 3-Pole (200kA AIC NEMA 12)

Cutler Hammer DH362UDK is a heavy-duty disconnect switch designed for reliable circuit isolation and safety in industrial power distribution systems. This 3-pole switch operates at 600V AC with a 60A current rating and features a robust non-fusible design capable of handling 200kA interrupting capacity. The unit measures 8.76 x 10.22 x 8 inches (WxDxH) and weighs 14.17 lb, constructed with NEMA 12 rated enclosure for protection against dust and dripping liquids. It complies with UL standards and NEC 230.62 (C) requirements for barrier compliance, making it suitable for industrial control panels, motor disconnecting means, and machinery power distribution applications where safe maintenance operations are critical.

Key Features & Specifications

• Type: Non-fusible disconnect switch, DH Series, single configuration
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 8.76 in x 10.22 in x 8 in (WxDxH)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Industrial power distribution, motor control centers, machinery disconnects
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Nema Rating: NEMA 12
• Weight: 14.17 lb
• Country of Origin: United States

Product Identification

• UPC: 782113206158
• GTIN: 00782274061801
