Cutler Hammer DH361FWK - Fusible Disconnect 600V 30A 3P NEMA 4X
Cutler Hammer DH361FWK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH361FWK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH361FWK - Fusible Disconnect 600V 30A 3P NEMA 4X

Cutler Hammer DH361FWK - Fusible Disconnect 600V 30A 3P NEMA 4X

Eaton
Price
Save $1,971.65
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

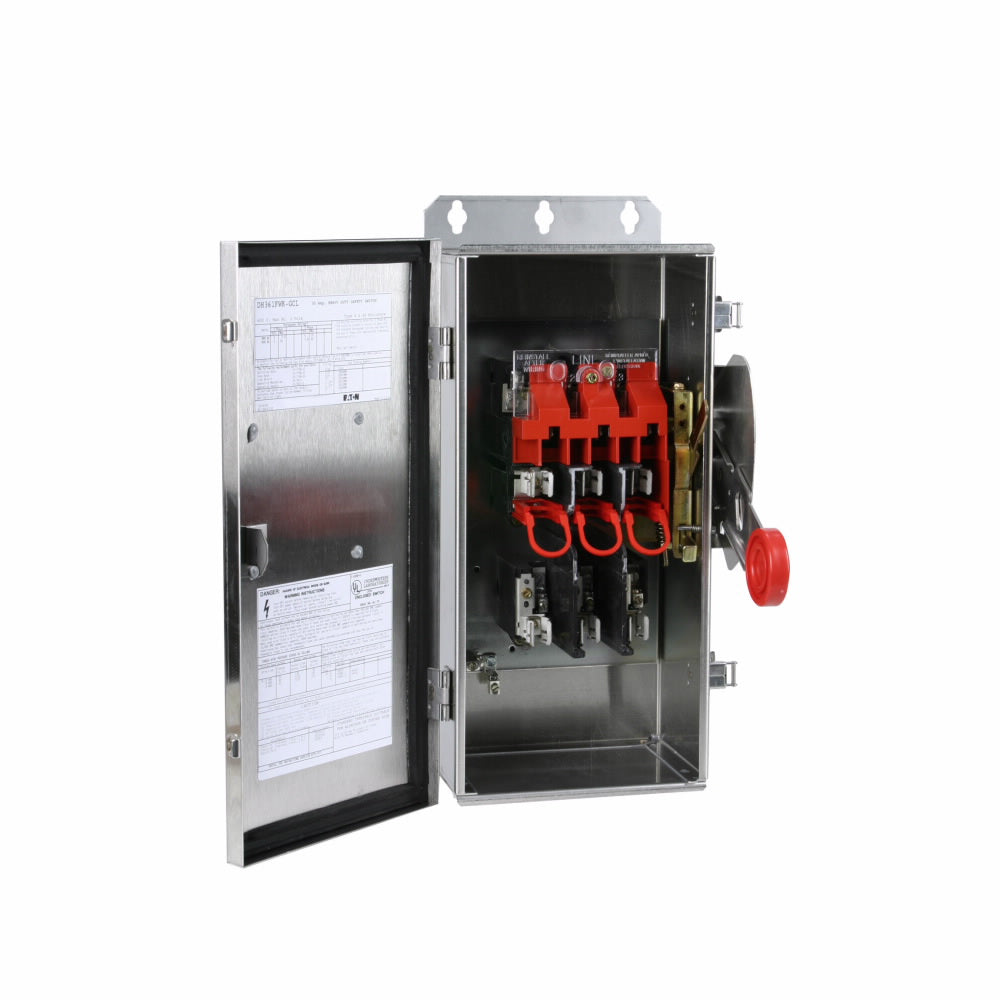

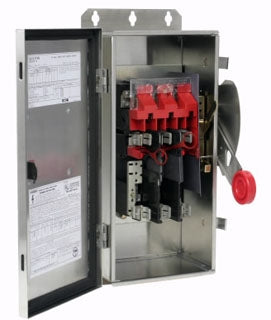

Cutler Hammer DH361FWK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 600V AC and 30A in a 3-phase configuration, featuring a robust NEMA 4X enclosure with dimensions of 19.08" H x 19.08" W x 8.05" D and a weight of 19 lb for durability in harsh environments. The switch is UL Listed and complies with NEC 230.62(C) for barrier requirements, ensuring safe operation. Its 200kA interrupting rating and use of Class R fuses make it suitable for protecting motor control centers, industrial machinery, and panelboards where high fault currents are present.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, DH Series, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 19.08 in (H) x 19.08 in (W) x 8.05 in (D)
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Industrial power distribution, motor control, panelboard protection
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: 14-2 AWG Cu/Al
  • Fuse Class: R
  • NEMA Rating: 4X
  • Enclosure: NEMA 4X
  • Country of Origin: United States
  • Weight: 19 lb


Product Identification
  • UPC: 782113205618
  • GTIN: 00782274052205
