Cutler Hammer DH325NGK - Fusible Disconnect Switch 400A 240V 3P

Price
Regular price $1,521.23
Regular price $5,705.00 Sale price $1,521.23
Save $4,183.77
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

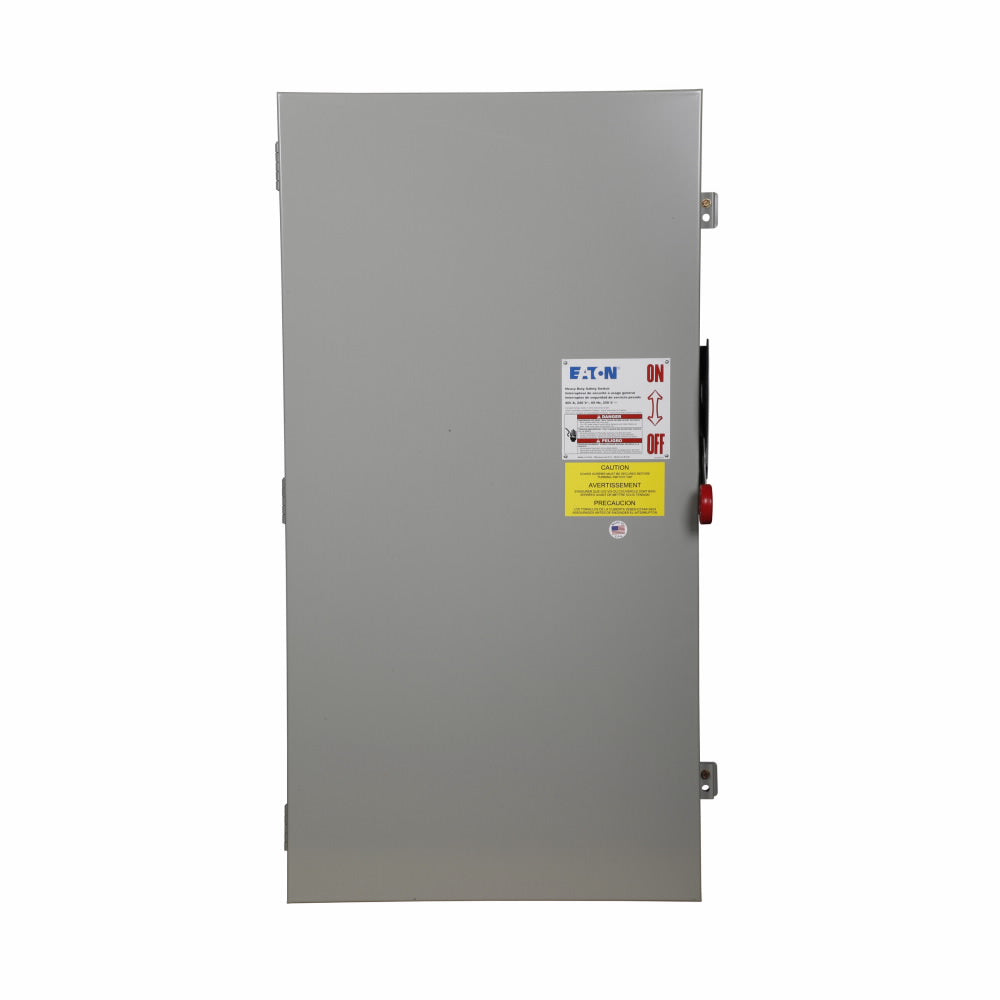

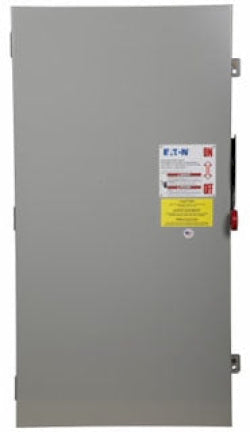

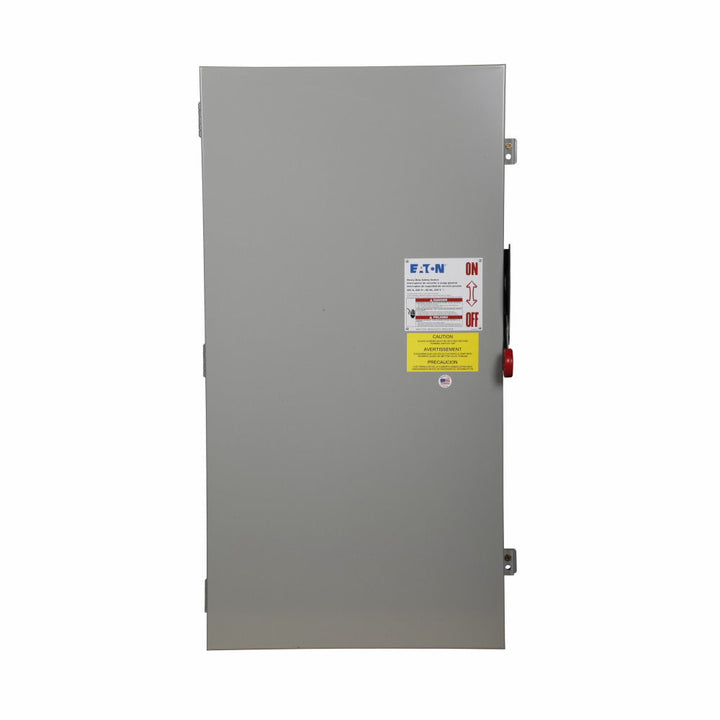

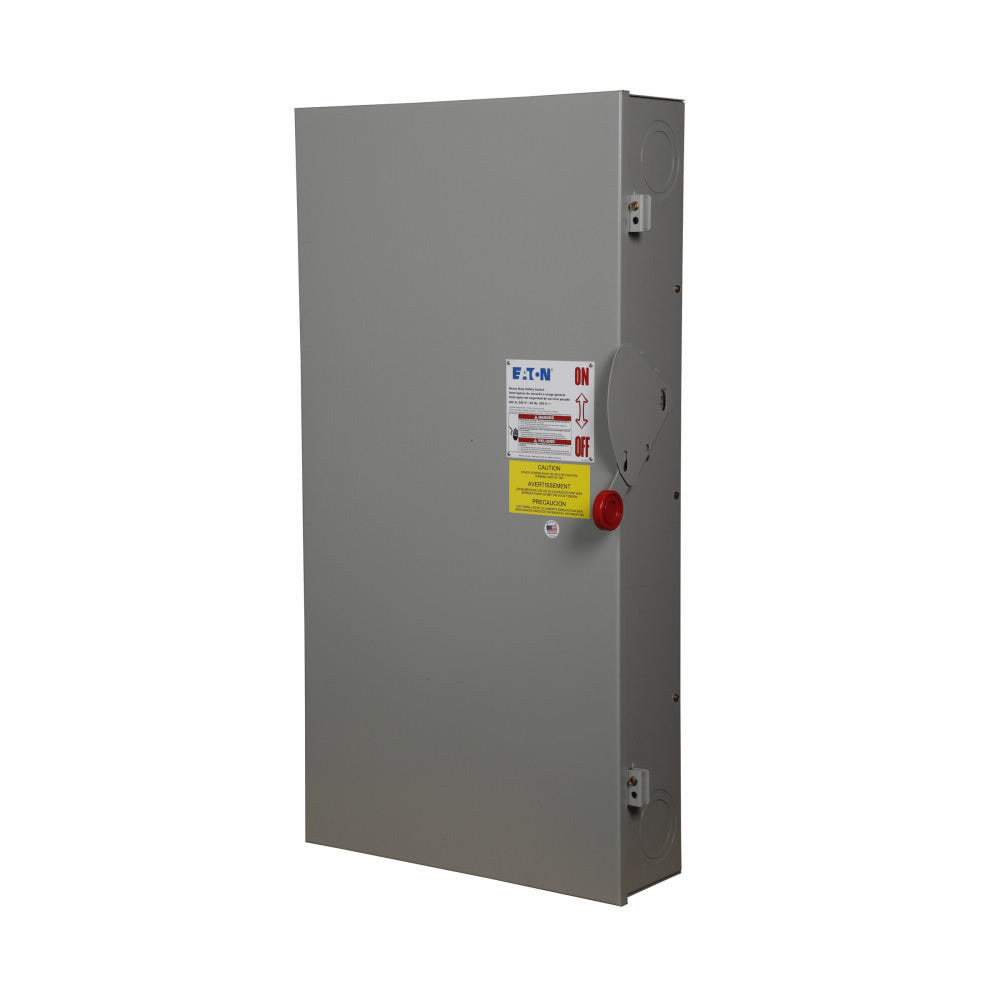

The Cutler Hammer DH325NGK is a heavy-duty fusible safety switch designed to provide reliable circuit isolation and overcurrent protection in demanding industrial environments. It is rated for 400A at 240V AC in a three-phase configuration and features a robust NEMA 3R enclosure measuring 7.27" D x 44.74" H x 23.08" W with a weight of 120 lb for durable outdoor or indoor installation. This UL Listed disconnect switch complies with industry standards and offers a high interrupting capacity of 100kA at 240V for enhanced safety. Its design is suitable for applications such as industrial control panels, motor disconnects, and main service entrance equipment where a fusible, three-pole disconnect is required.

Key Features & Specifications
  • Type: DH Series, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Dimensions: 7.27 in (Depth) x 44.74 in (Height) x 23.08 in (Width)
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial Control Panels, Motor Disconnects, Main Service Equipment
  • Switch Type: Fusible Disconnect
  • Configuration: Single Unit
  • Phase: 3
  • Amperage: 400A
  • AIC Rating: 100kA @ 240V
  • Connection: Fusible
  • Poles: 3
  • Protection: Overcurrent via Class R Fuses
  • Fuse Class: R
  • Compatible Frames: SKLA
  • Weight: 120 lb
  • Country of Origin: United States


Product Identification
  • UPC: 782113207063
  • GTIN: 00782113207063
