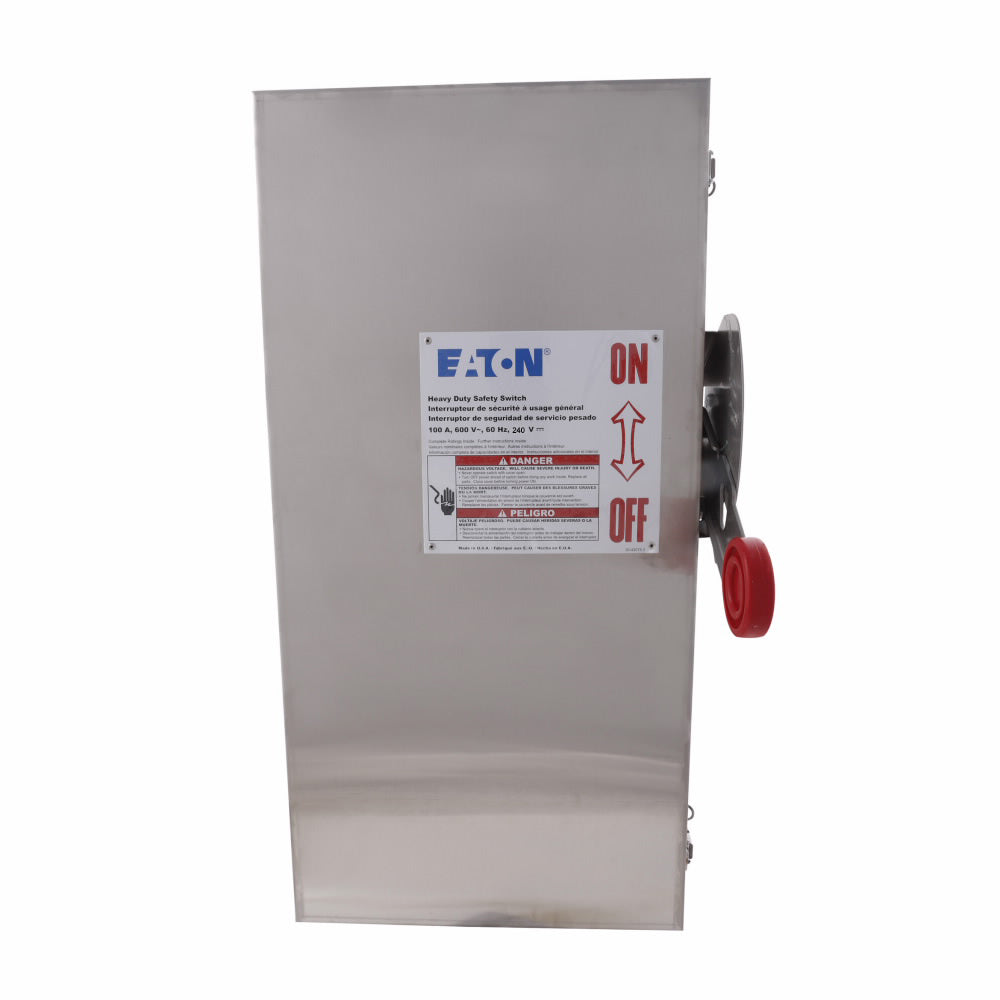

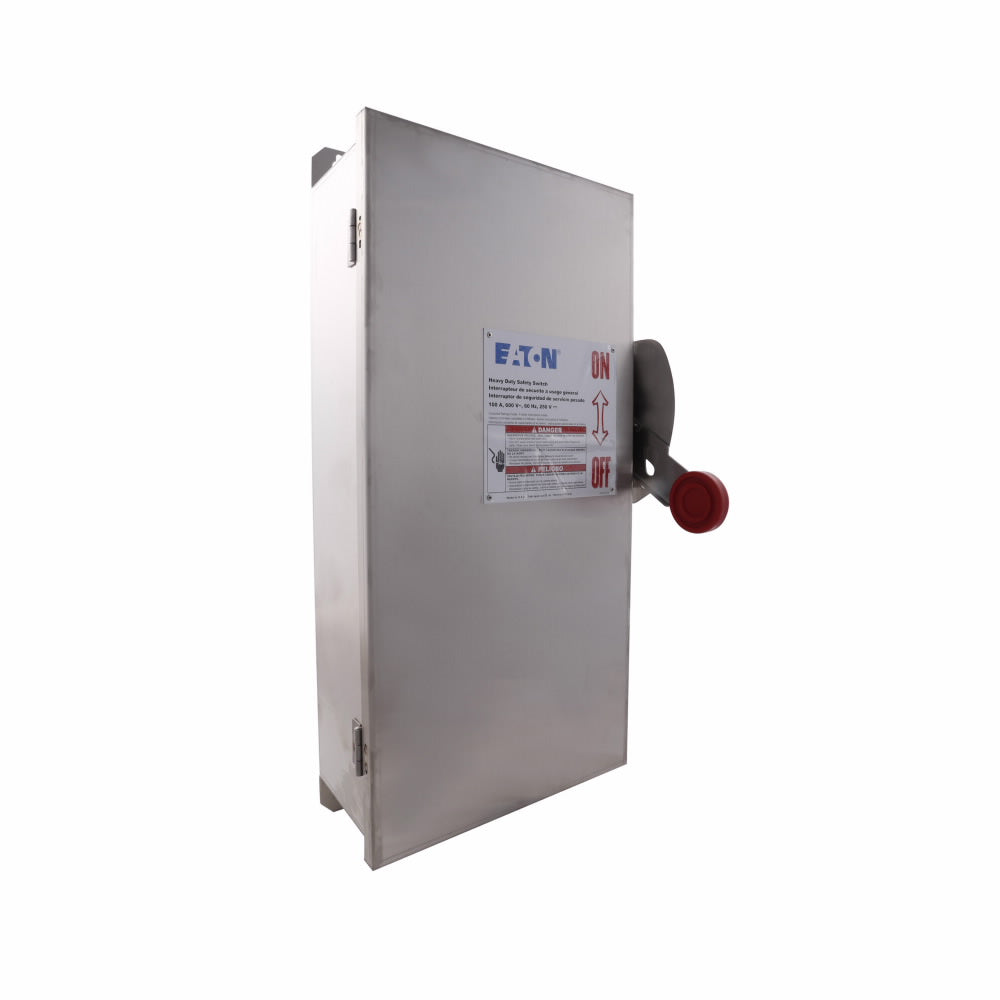

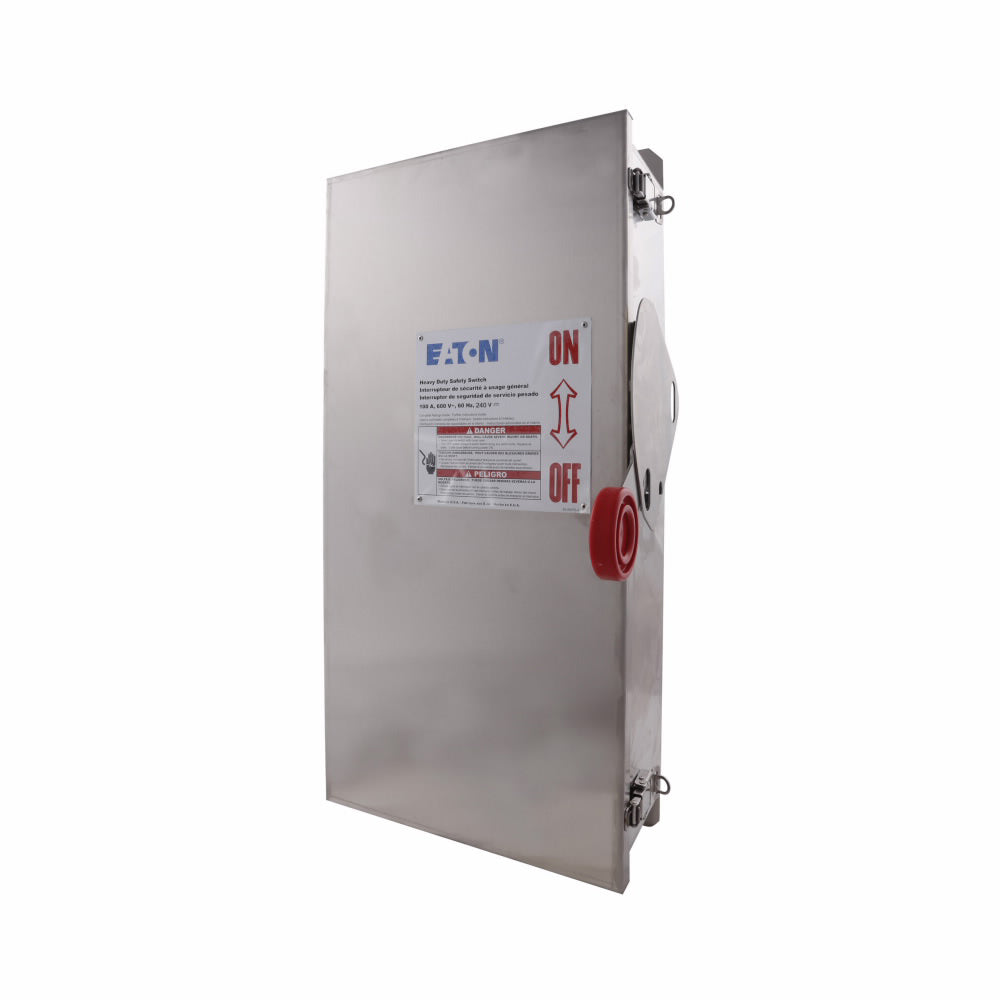

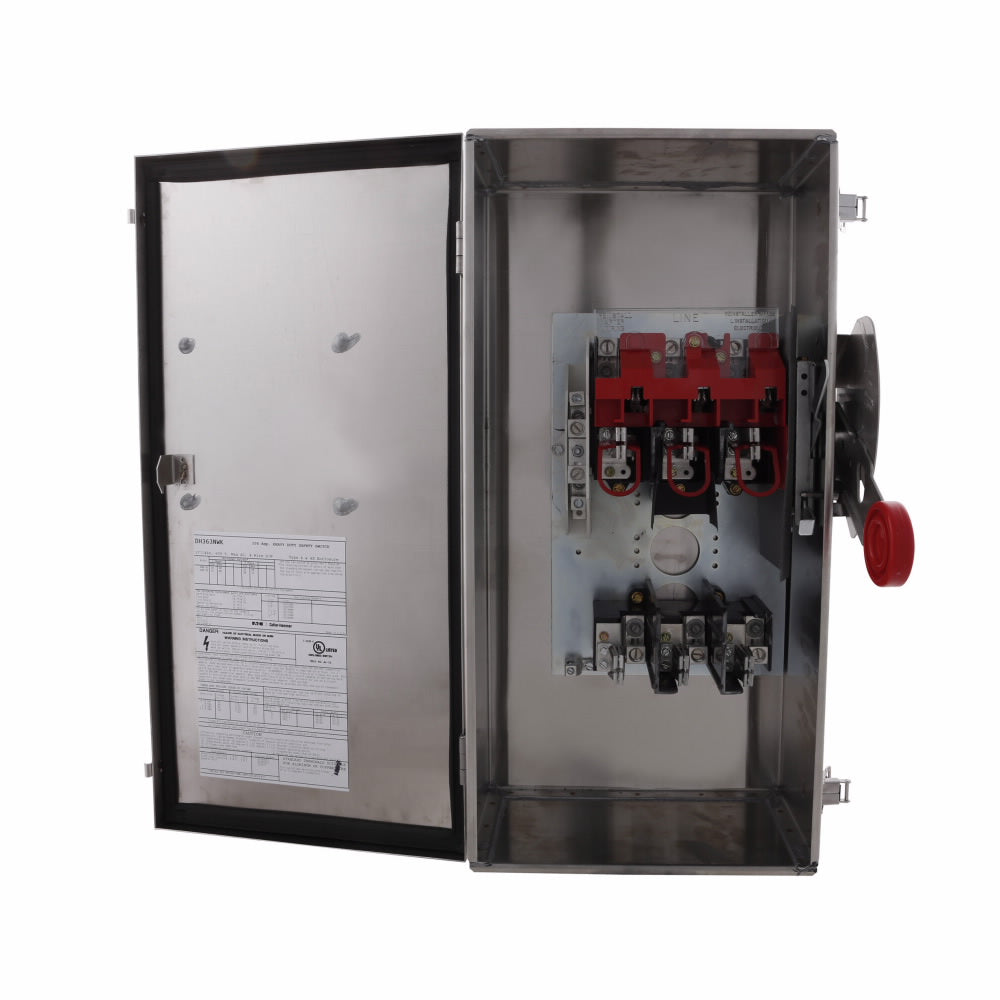

Cutler Hammer DH323NWK - Fusible Safety Switch, 100A 3P 240V (200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer DH323NWK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 240V AC operation with a 100A current rating and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed within a NEMA 3R rated enclosure measuring 25.5 in (L) x 9 in (H) x 13.25 in (W) and weighs 30 lb, and it is UL Listed for safety compliance. This disconnect is engineered for integration with TEB panelboards and is suited for applications requiring a reliable means of isolation and circuit protection in industrial environments.

Key Features & Specifications
  • Type: DH Series, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Configuration: Single, 3-Pole
  • Interrupting Rating (AIC): 200kA @ 240V
  • Fuse Class: R
  • Enclosure Rating: NEMA 3R
  • Phase: 3
  • Dimensions: 25.5 in x 9 in x 13.25 in (L x H x W)
  • Weight: 30 lb
  • Certification: UL Listed
  • Compatible Frames: TEB
  • Country of Origin: United States


Product Identification
  • UPC: 782113206349
  • GTIN: 00782113206349
