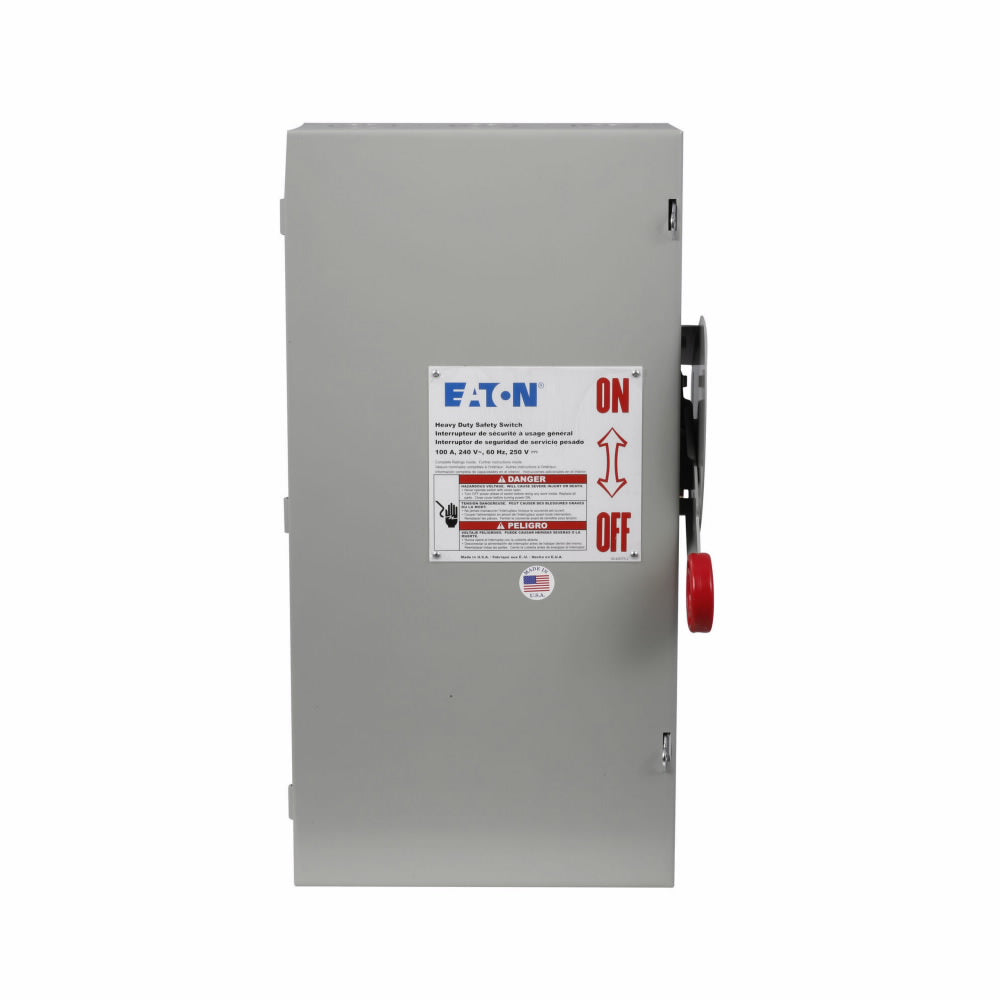

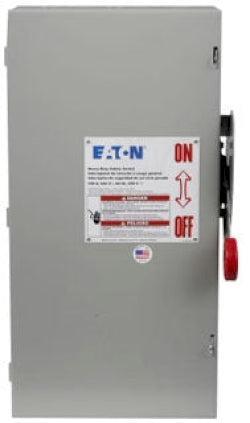

Cutler Hammer DH323FGK - Fusible Safety Switch 100A 240V (3-Pole NEMA 4X)

The Cutler Hammer DH323FGK is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial applications. This 3-pole disconnect switch features a 240V voltage rating and 100A current rating, providing robust electrical control capabilities. Constructed with a NEMA 4X rated enclosure measuring 12.7 x 22.5 x 8.7 inches (WxDxH) and weighing 20.5 lb, it offers superior corrosion resistance and durability. The switch is UL Listed and compatible with SGHA frames, ensuring compliance with industry safety standards. Typical applications include industrial machinery, motor control centers, and power distribution systems requiring 100kA interrupting capacity at 240V with Class R fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 12.7 in x 22.5 in x 8.7 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial machinery, motor control centers, power distribution
• Switch Type: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 100kA@240V
• Connection: Wire size #14 to 1/0 AWG, Copper/Aluminum
• Protection: Class R fuse compatible
• Nema Rating: NEMA 4X
• Enclosure: NEMA 4X rated
• Compatible Frames: SGHA
• Country of Origin: United States
• Weight: 20.5 lb

Product Identification

• UPC: 782113206240
• GTIN: 00782113206240
