Eaton DH321FRK - Fusible Safety Switch 30A 240V 3P (100kA AIC)
Cutler Hammer DH321FRK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH321FRK Disconnect Switch (Fusible) - Essential Electric Supply
Eaton DH321FRK - Fusible Safety Switch 30A 240V 3P (100kA AIC)

Eaton DH321FRK - Fusible Safety Switch 30A 240V 3P (100kA AIC)

Eaton
Price
Save $412.72
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

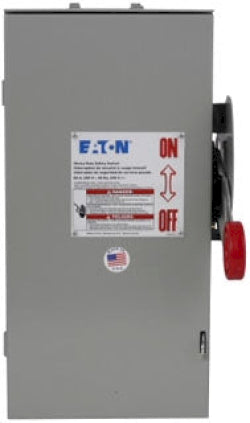

Eaton Cutler-Hammer DH321FRK is a fusible safety switch designed for providing visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 30A at 240V AC with a 100kA interrupting capacity and features a rugged NEMA 3R rainproof enclosure measuring 16.5" x 16.27" x 9.5" (LxHxW) for reliable outdoor or indoor service. The switch is UL Listed, accepts Class R fuses, and accommodates copper or aluminum conductors from AWG 14 to AWG 2, making it suitable for use with compatible THJK panelboards in manufacturing, HVAC, and machinery applications.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, DH Series
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Fuse Class: R
  • Wire Size: AWG 14 to AWG 2, Cu/Al
  • NEMA Rating: 3R (Rainproof)
  • Dimensions: 16.5 in L x 16.27 in H x 9.5 in W
  • Weight: 10 lb
  • Certification: UL Listed
  • Compatible Frames: THJK
  • Country of Origin: United States


Product Identification
  • UPC: 782113208497
  • GTIN: 00782113208497
