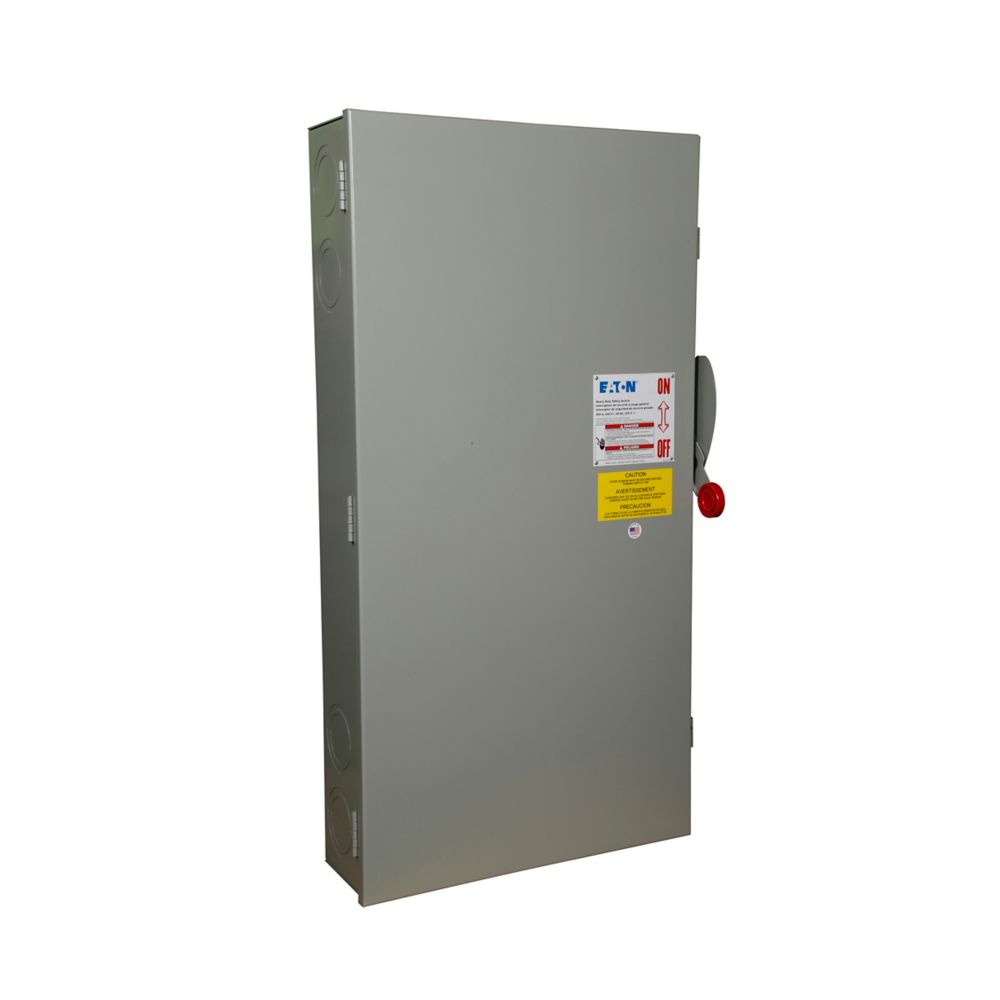

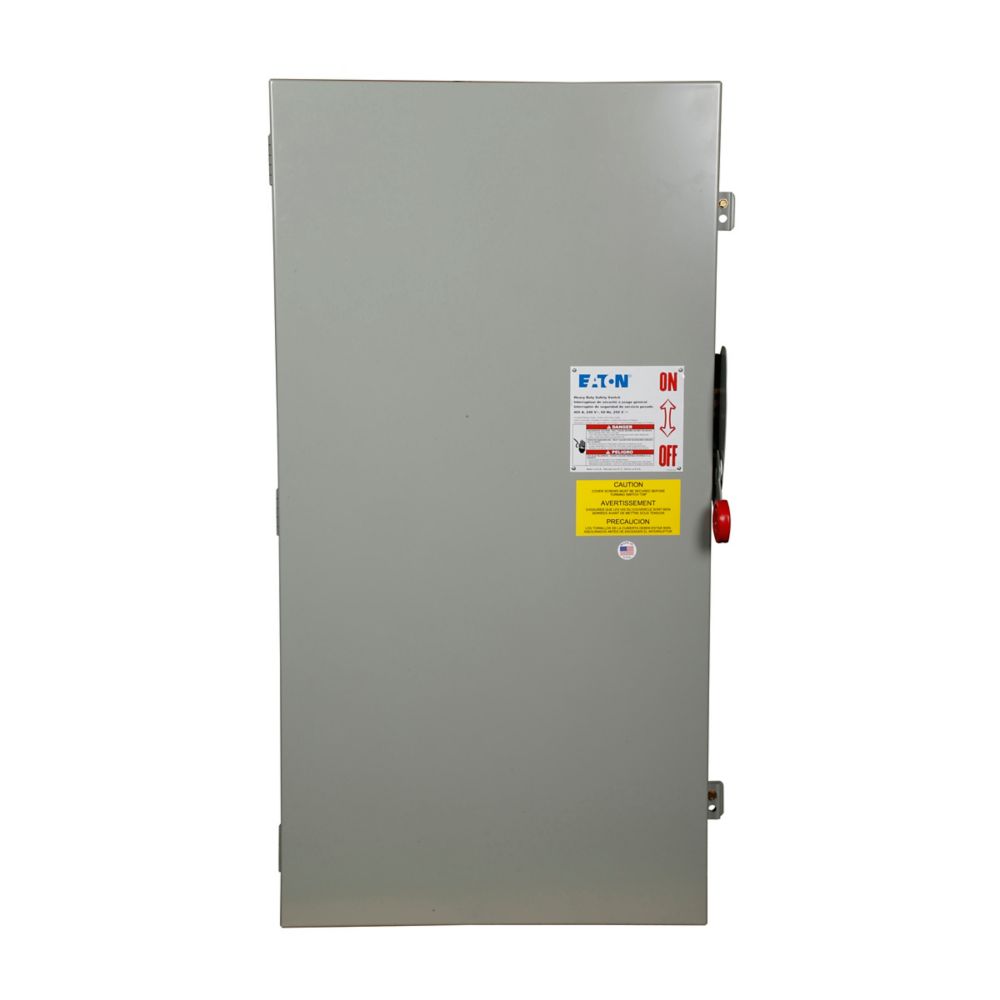

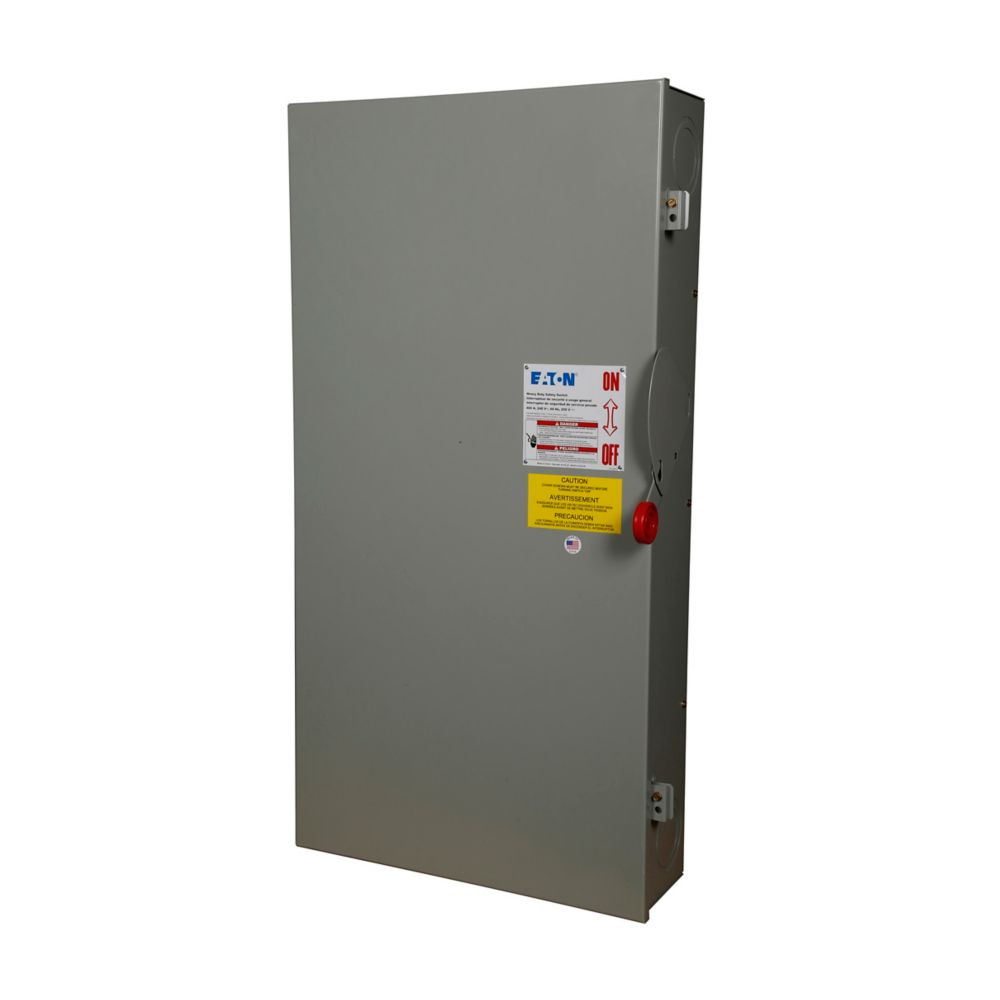

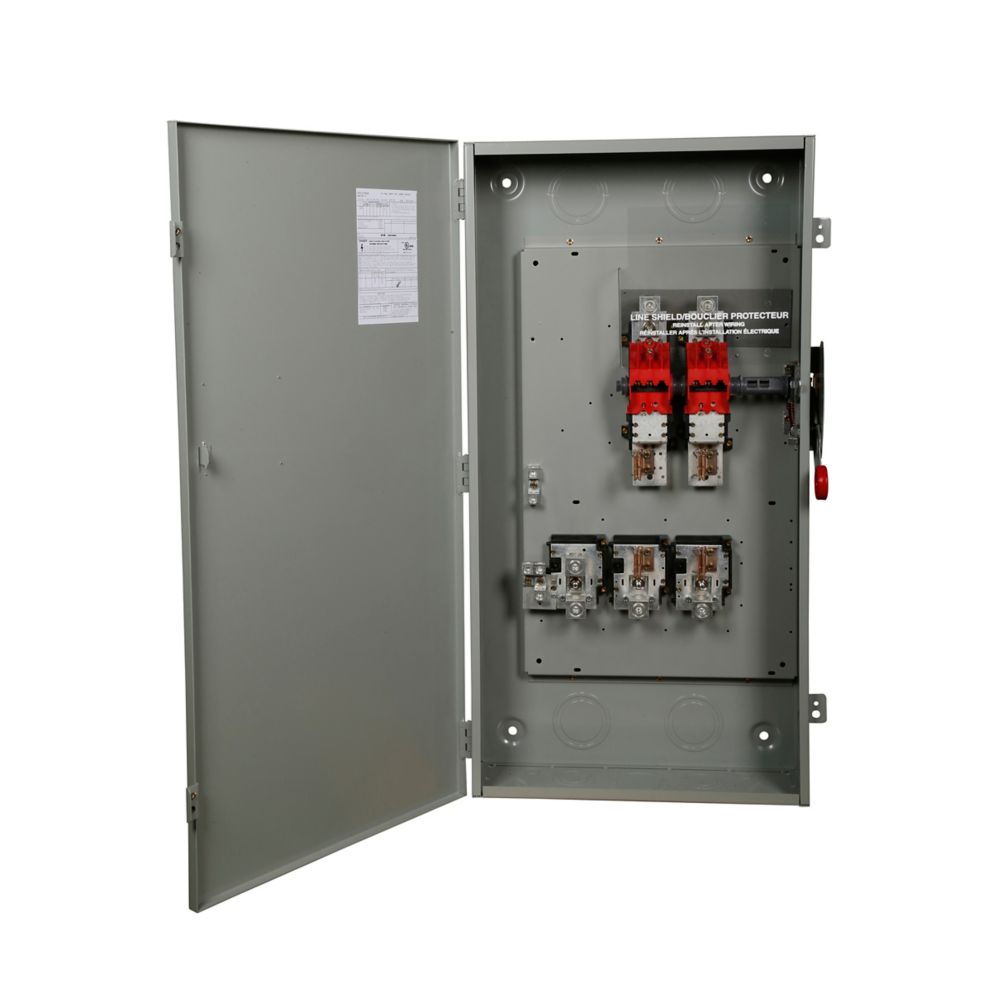

Eaton DH265FGK - Fusible Disconnect Switch 400A (100kA@600V AIC)

Eaton DH265FGK is a fusible disconnect switch designed for industrial power distribution protection, featuring solid-state protection with long-time and instantaneous (LI) trip functions. The unit operates at 400A current rating with a 100kA@600V AIC rating and 1V voltage rating, housed in a NEMA 1 enclosure measuring 24.38 x 45.5 x 10.25 inches (WxDxH) and weighing 110 lb. Compliant with industry standards for safety disconnects, it features bolt-on connections, R-class fuses, and compatibility with TB frames for panel integration. Typical applications include motor control centers and heavy-duty electrical distribution systems requiring reliable circuit isolation.

Key Features & Specifications

• Type: Fusible disconnect switch with solid-state protection
• Voltage Rating: 1V
• Current Rating: 400A
• Dimensions: 24.38 x 45.5 x 10.25 in (WxDxH)
• Standards: NEMA 1
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Coil Voltage Maximum: 12V
• Temp Rating: Not specified
• Phase: 1
• AIC rating: 100kA@600V
• Connection: Bolt-On
• Poles: 2
• Protection: Solid State
• Functions: LI - Long-Time and Instantaneous
• Compatible Frames: TB
• Coil Voltage Minimum: 12V
• Fuse Class: R
• Wire: 4
• Country of Origin: United States

Product Identification

• UPC: 782113207186
• GTIN: 00782113000000
