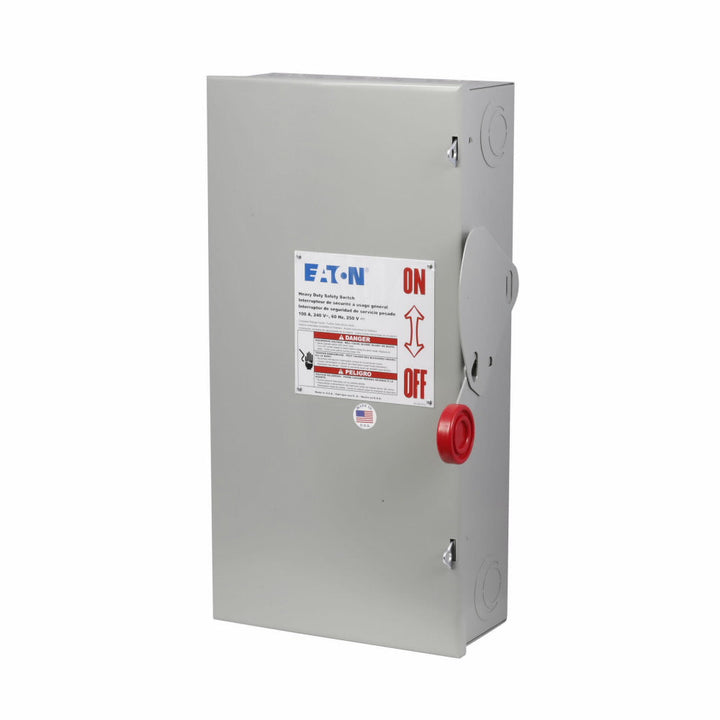

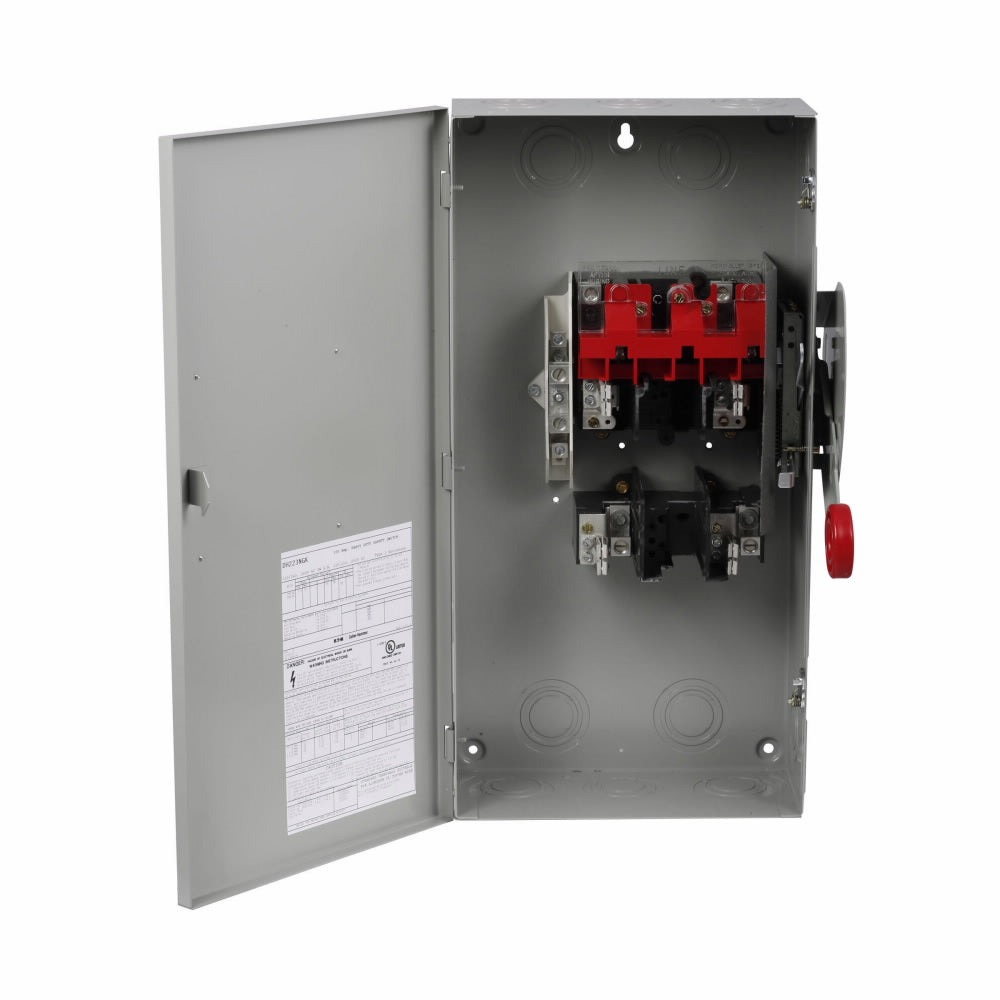

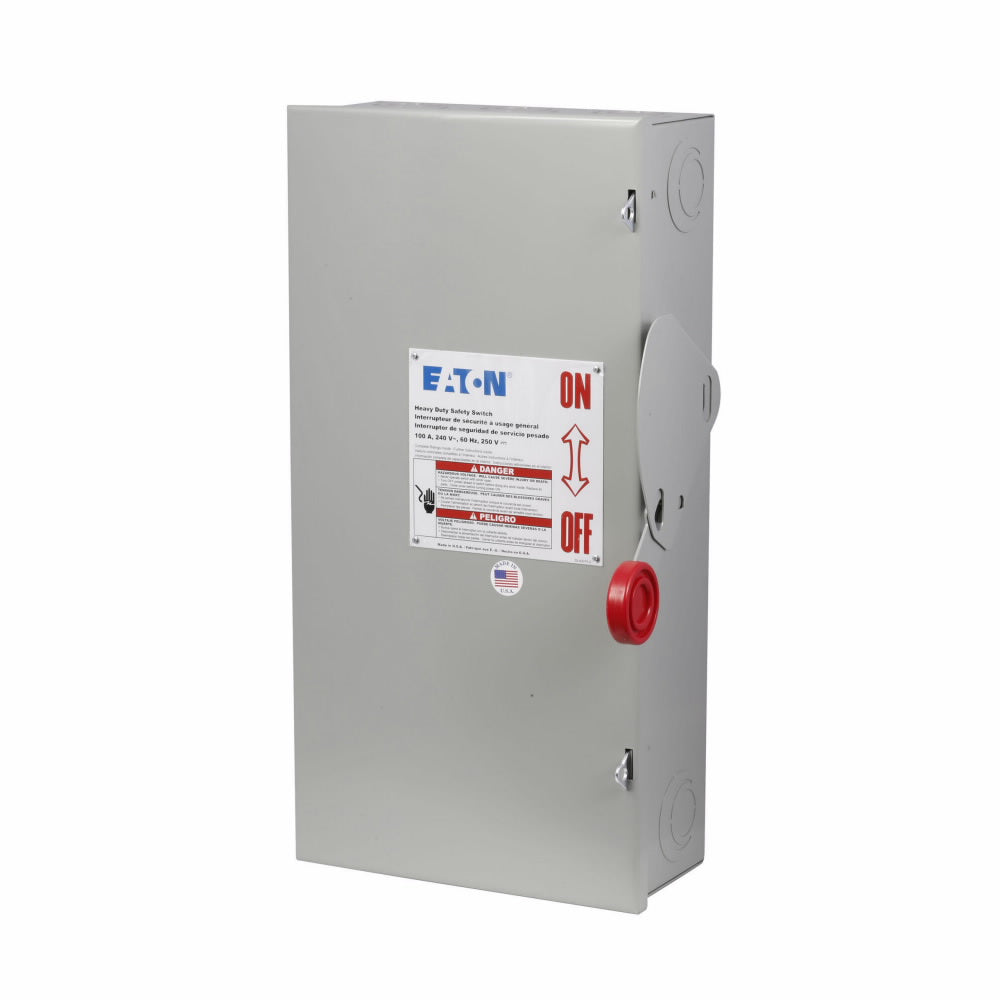

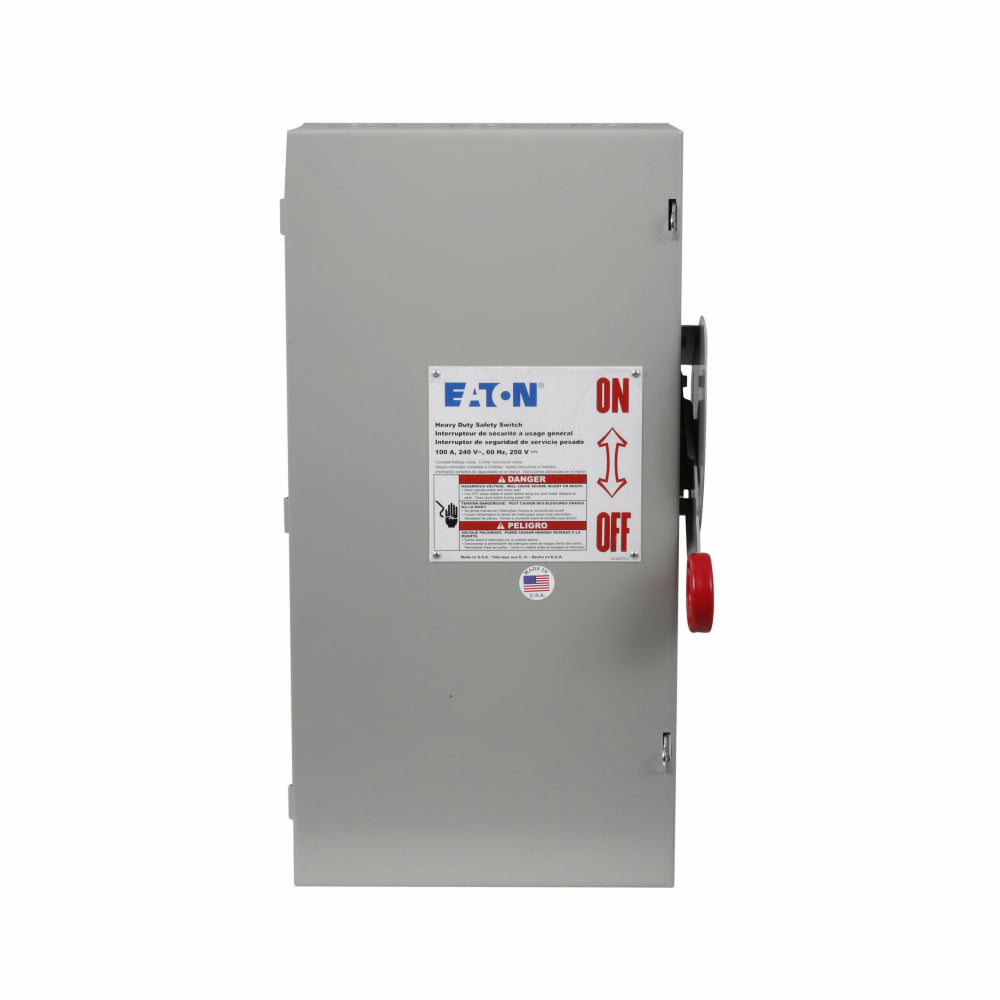

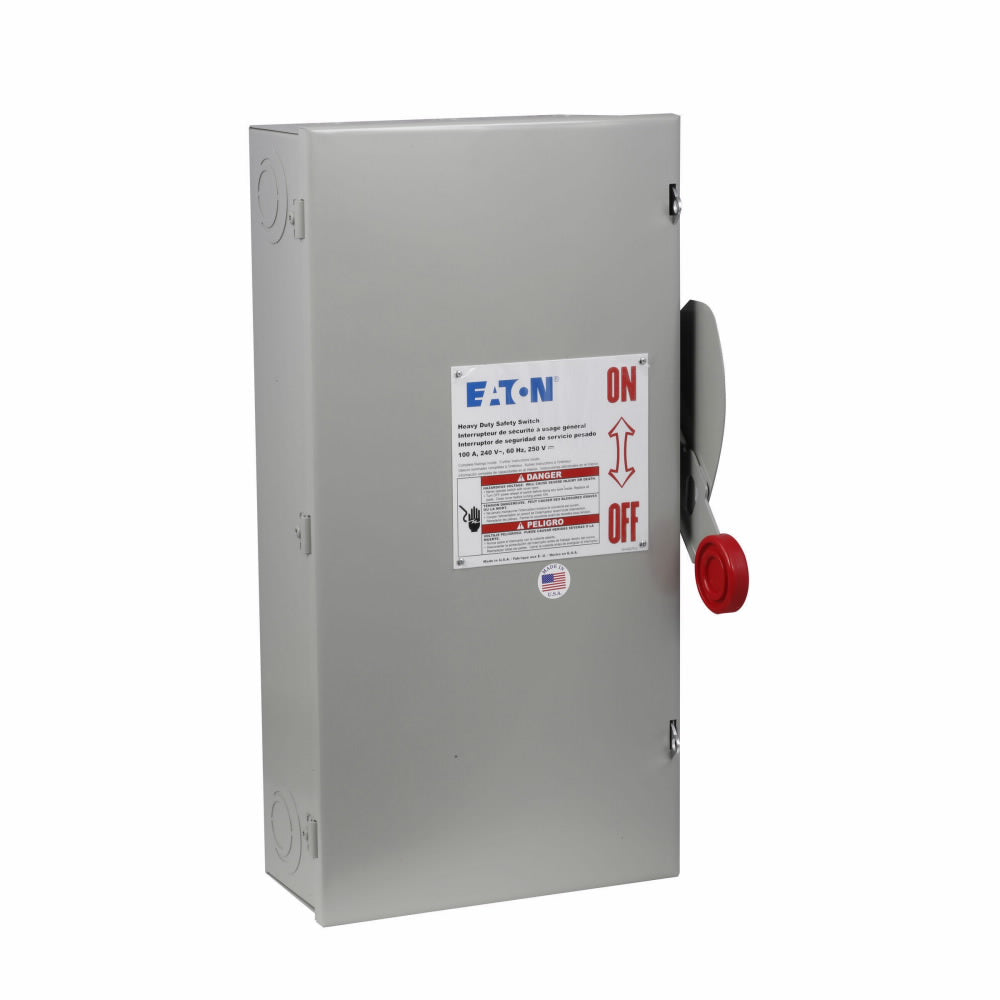

Cutler Hammer DH223NGK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC systems with a 100A current capacity and features a robust NEMA 1 enclosure measuring 22.5" x 9" x 12.75" with a weight of 23 lb. The switch is UL Listed and complies with NEC 230.62(C) for barrier requirements, ensuring safe operation. It is typically applied in single-phase circuits for motor control and feeder disconnects where a 100kA interrupting rating at 240V is required.
Key Features & Specifications
Type: DH Series fusible disconnect safety switch
Voltage Rating: 240V AC
Current Rating: 100A
Configuration: Single
Poles: 2
Phase: 1
AIC Rating: 100kA @ 240V
Fuse Class: R
Switch Style: Fusible
Wire Size: AWG 14 to AWG 1/0, Cu/Al
NEMA Rating: NEMA 1
Dimensions: 22.5 in x 9 in x 12.75 in (L x H x W)
Weight: 23 lb
Certification: UL Listed, NEC 230.62 (C) Compliant Barrier
