Cutler Hammer DH222NGK - Fusible Disconnect 60A 240V (100kA AIC)
Cutler Hammer DH222NGK - Fusible Disconnect 60A 240V (100kA AIC)
Cutler Hammer DH222NGK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH222NGK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH222NGK - Fusible Disconnect 60A 240V (100kA AIC)
Cutler Hammer DH222NGK - Fusible Disconnect 60A 240V (100kA AIC)

Cutler Hammer DH222NGK - Fusible Disconnect 60A 240V (100kA AIC)

Eaton
Price
Save $549.34
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

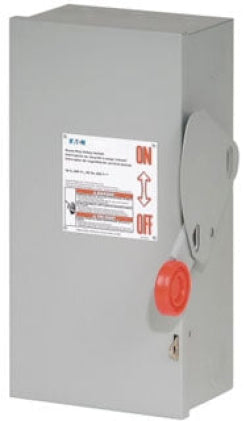

Cutler Hammer DH222NGK is a fusible safety disconnect switch designed for providing reliable circuit isolation and protection in industrial power distribution. It is rated for 240V AC operation with a 60A current capacity, housed in a robust NEMA 1 enclosure measuring 16.5" x 8.31" x 9.12" (LxHxW) and weighing 17 lb. The unit is CSA Certified and UL Listed, featuring an NEC 230.62 (C) compliant barrier for enhanced safety, and is typically applied in motor control centers and panelboards requiring a 100kA interrupting capacity at 240V.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, DH Series
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 16.5 in x 8.31 in x 9.12 in (Length/Depth x Height x Width)
  • Standards: CSA Certified, UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 2
  • AIC Rating: 100kA @ 240V
  • NEMA Rating: NEMA 1
  • Phase: 1
  • Fuse Class: R
  • Compatible Frames: SKHA
  • Country of Origin: United States
  • Weight: 17 lb


Product Identification
  • UPC: 782113205779
  • GTIN: 00782113205779
