Cutler Hammer DG325UGK - Non-Fusible Disconnect 400A 240V

Eaton
Price
Save $2,081.24
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

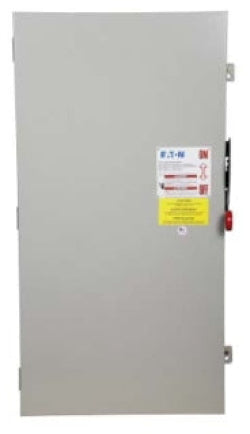

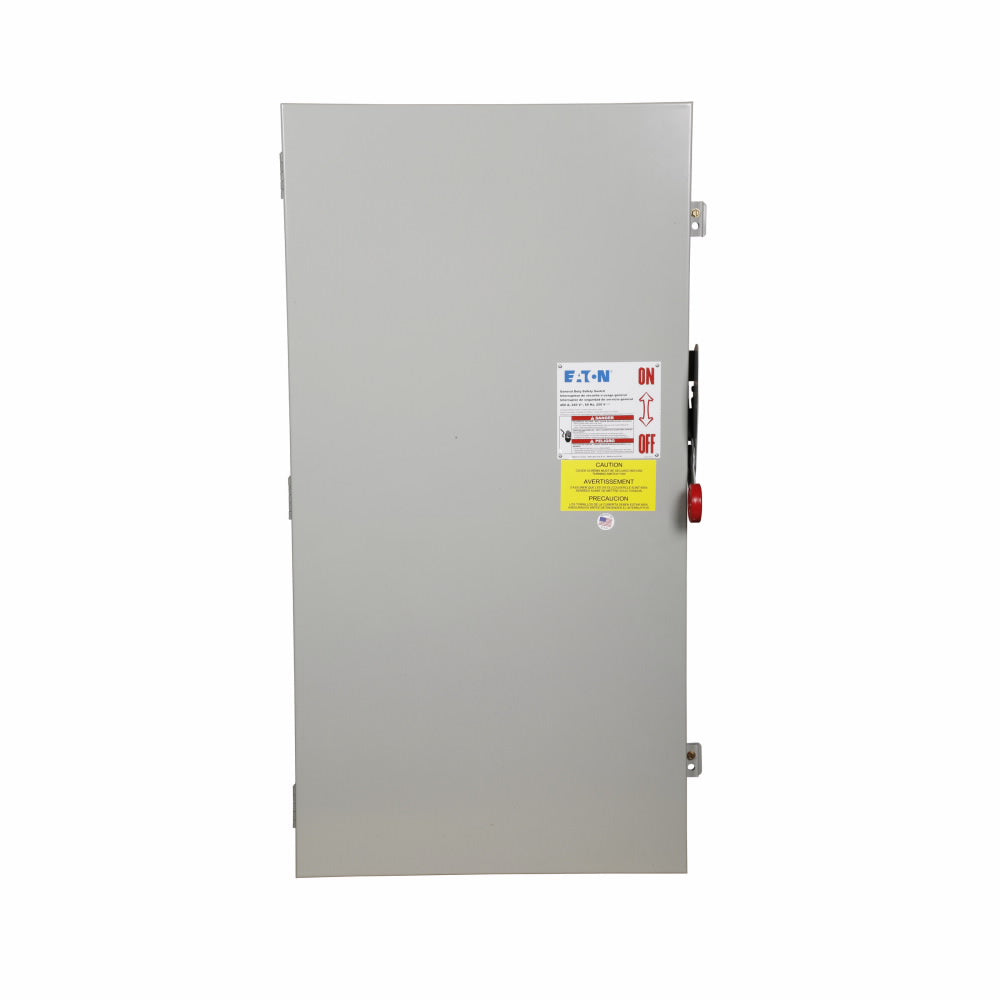

The Cutler Hammer DG325UGK is a heavy-duty, non-fusible safety disconnect switch designed for the safe isolation of three-phase electrical circuits in industrial applications. It is rated for 400A at 240V AC and features a robust NEMA 1 enclosure with dimensions of 7.27" D x 44.74" H x 23.08" W and a weight of 120 lb. This switch is UL Listed and complies with NEC 230.62(C) for barrier requirements, ensuring safe operation. It is engineered for use with compatible TKM frames and provides reliable circuit protection with an interrupting capacity of 100kA at 240V, making it suitable for service entrance and main disconnect functions in panelboards and switchboards.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, DG Series
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Dimensions: 7.27 in (Depth) x 44.74 in (Height) x 23.08 in (Width)
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Main Disconnect, Service Entrance, Industrial Panelboards
  • Switch Type: Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 100kA @ 240V
  • NEMA Rating: NEMA 1
  • Phase: 3
  • Compatible Frames: TKM
  • Country of Origin: United States
  • Weight: 120 lb


Product Identification
  • UPC: 782113589534
  • GTIN: 00782113589534
