Cutler Hammer DG324UGK - Non-Fusible Disconnect 200A 240V 3P

Eaton
Price
Save $565.09
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

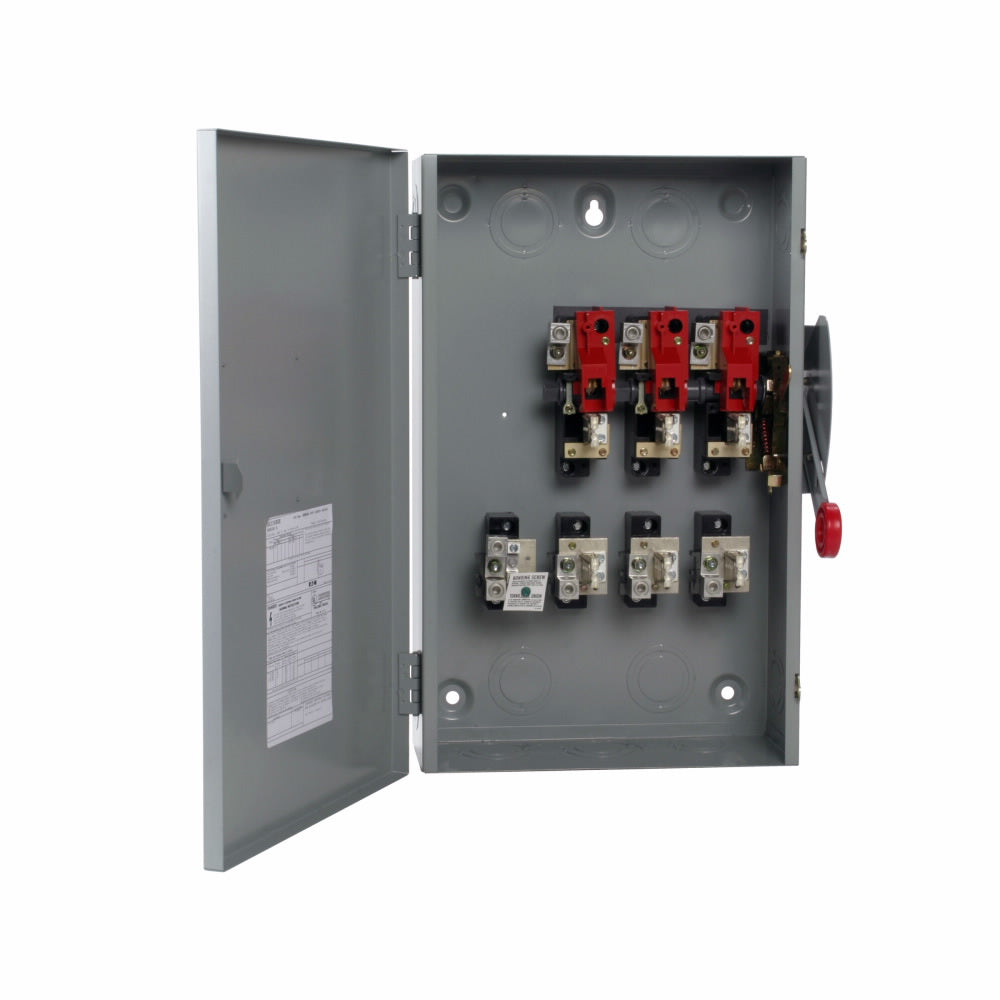

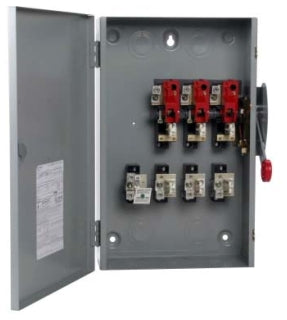

The Cutler Hammer DG324UGK is a heavy-duty, non-fusible safety disconnect switch designed for isolating electrical circuits in industrial power distribution. It is rated for 240V AC, 3-phase operation with a 200A current rating and a high 100kA interrupting capacity at 240V. The switch features a robust NEMA 1 enclosure measuring 11.25" D x 24.75" H x 16" W, weighs 48 lb, and is constructed with three poles in a single configuration. It is UL Listed and complies with NEC 230.62(C) for barrier requirements, ensuring safe operation. This disconnect is typically applied in industrial panels and motor control centers, compatible with THKM frames, for main circuit isolation and safety lockout/tagout procedures.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, DG Series
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 11.25 in (Depth) x 24.75 in (Height) x 16 in (Width)
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Main circuit isolation in industrial panels and motor control centers
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • AIC rating: 100kA @ 240V
  • Poles: 3
  • Nema Rating: NEMA 1
  • Compatible Frames: THKM
  • Country of Origin: United States
  • Weight: 48 lb


Product Identification
  • UPC: 782113213552
  • GTIN: 00782113213552
