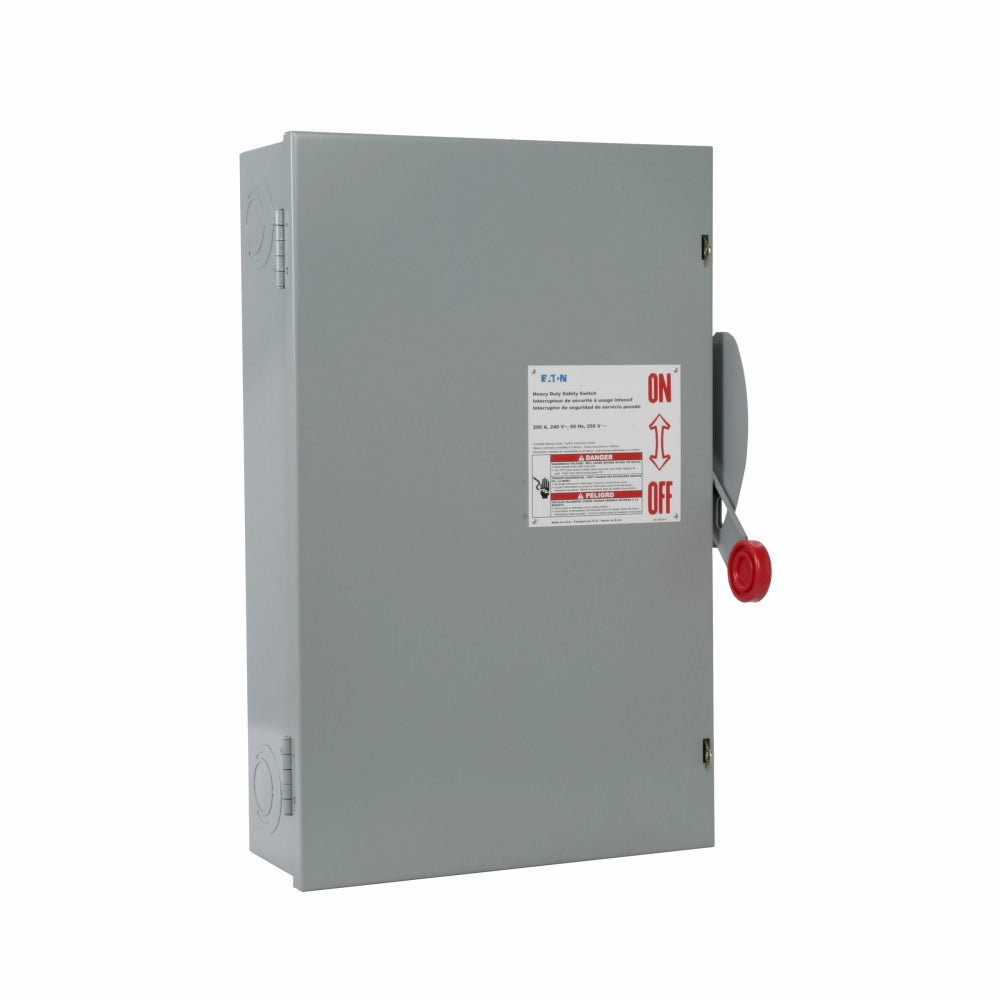

Cutler Hammer DG324NGK - Fusible Safety Switch 200A 240V 3P
Cutler Hammer DG324NGK - Fusible Safety Switch 200A 240V 3P
Cutler Hammer DG324NGK - Fusible Safety Switch 200A 240V 3P
Cutler Hammer DG324NGK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DG324NGK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DG324NGK - Fusible Safety Switch 200A 240V 3P
Cutler Hammer DG324NGK - Fusible Safety Switch 200A 240V 3P
Cutler Hammer DG324NGK - Fusible Safety Switch 200A 240V 3P

Cutler Hammer DG324NGK - Fusible Safety Switch 200A 240V 3P

Eaton
Price
Save $1,242.82
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

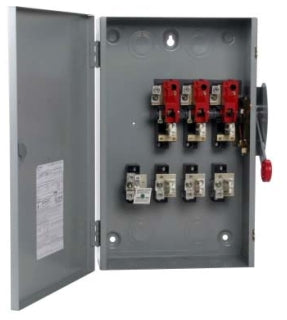

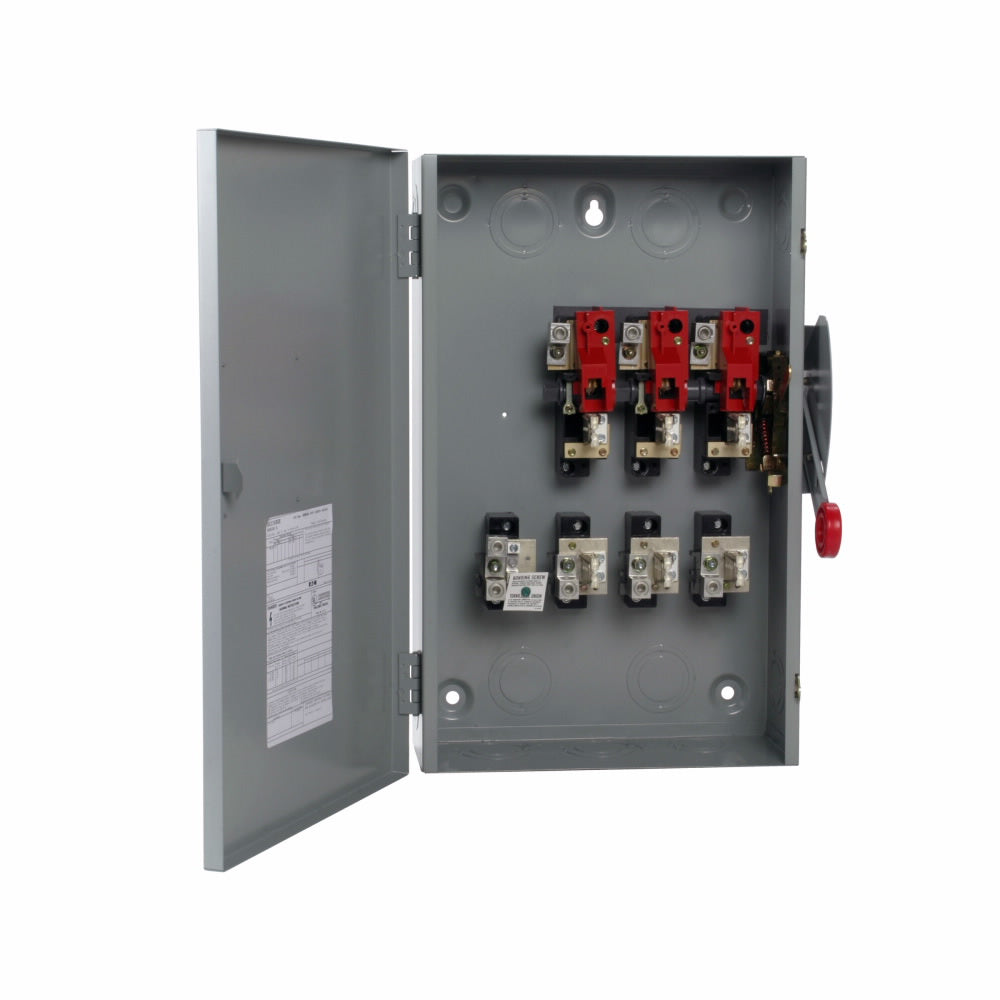

Cutler Hammer DG324NGK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 240V AC operation with a 200A current capacity and features a robust three-pole, single-configuration design within a NEMA 1 enclosure measuring 11.25 in (D) x 24.75 in (H) x 16 in (W) and weighing 48 lb. The unit is UL Listed and complies with NEC 230.62(C) for barrier requirements, ensuring safe isolation. It is engineered for demanding three-phase applications, offering a high 100kA interrupting capacity at 240V and is compatible with Class R fuses and THKM frames for integrated system protection.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, DG Series
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 11.25 in (Depth) x 24.75 in (Height) x 16 in (Width)
  • Weight: 48 lb
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Industrial power distribution, motor control, main service disconnect
  • Switch Type: Fusible
  • Configuration: Single
  • AIC Rating: 100kA @ 240V
  • Connection: Line/Load
  • Poles: 3
  • Protection: Overcurrent (via Class R fuses)
  • Phase: 3
  • Fuse Class: R
  • NEMA Rating: NEMA 1
  • Compatible Frames: THKM
  • Country of Origin: United States


Product Identification
  • UPC: 782113213538
  • GTIN: 00782113213538
