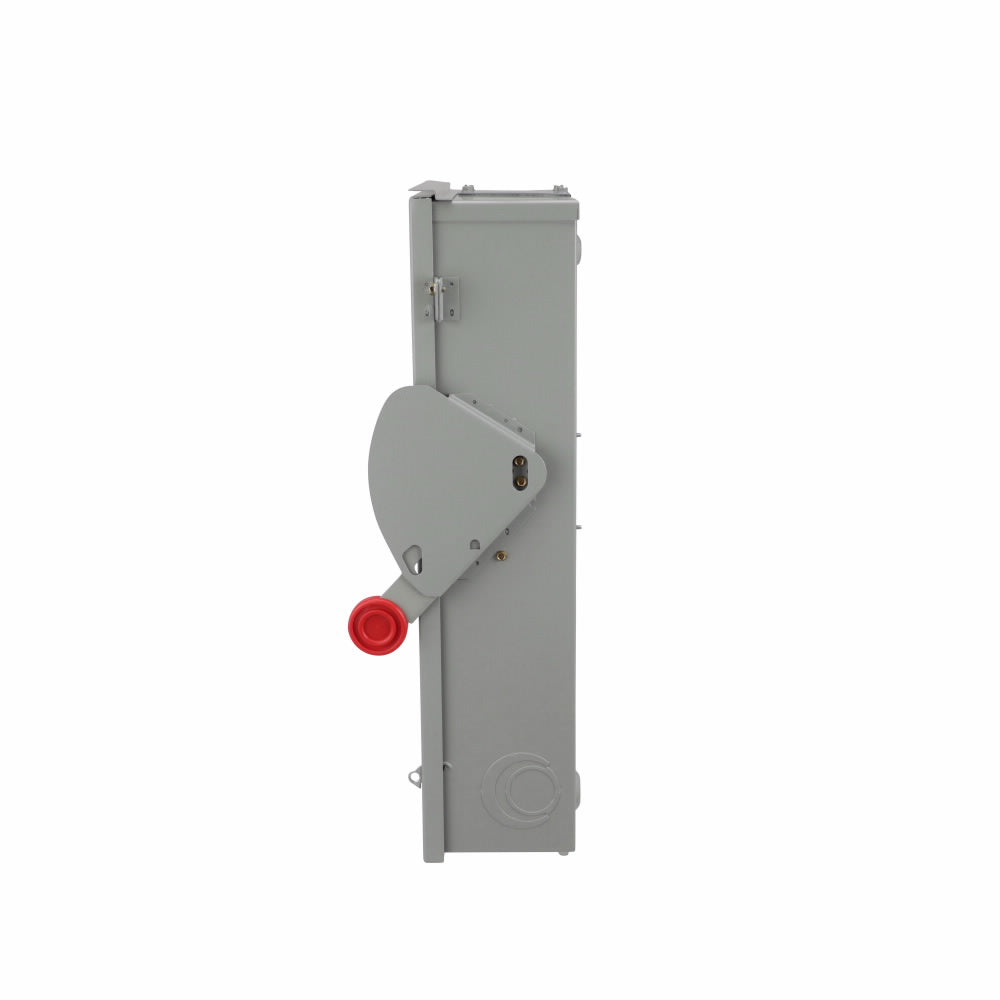

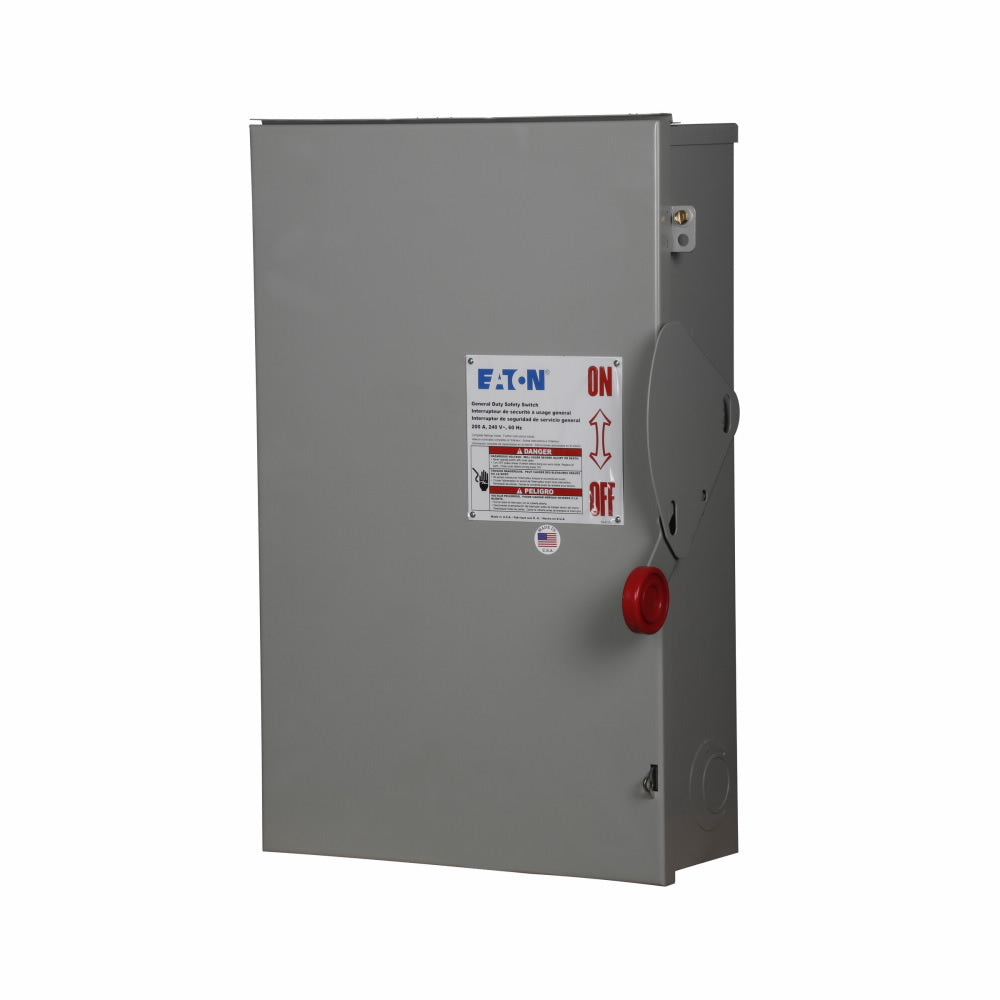

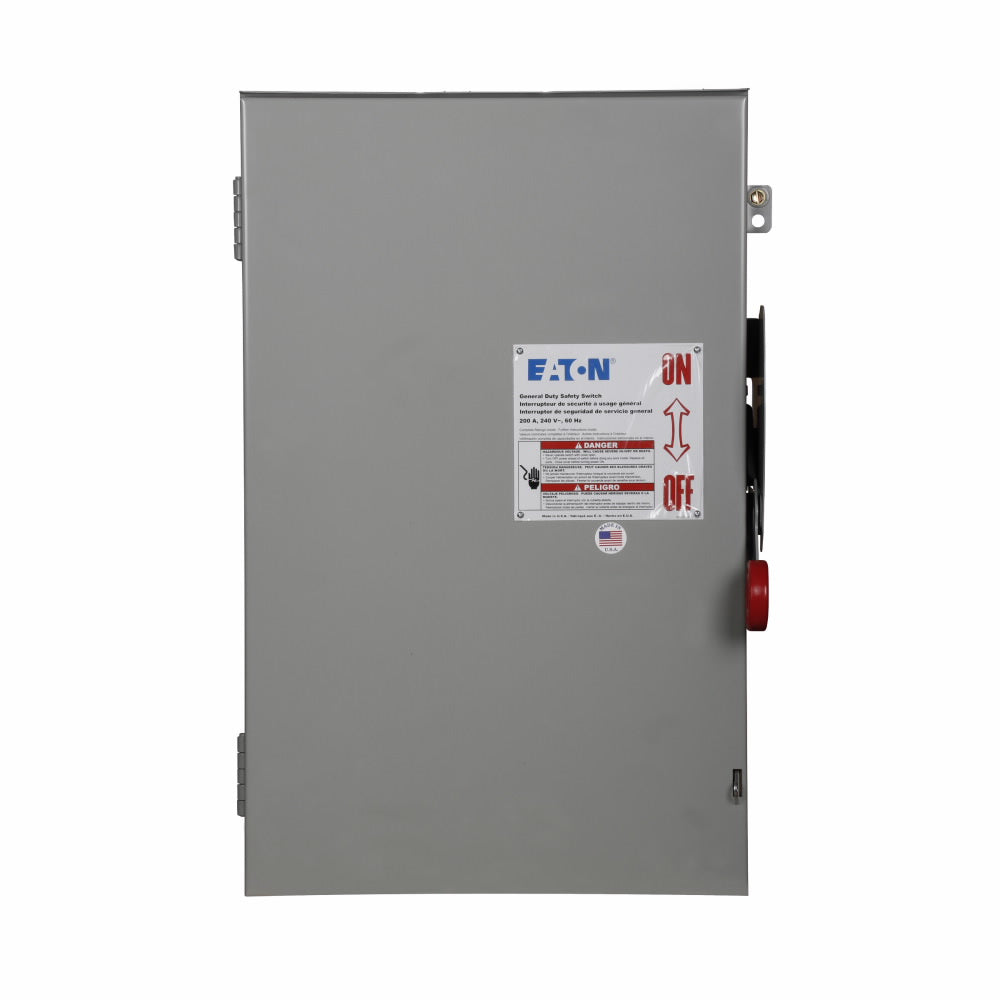

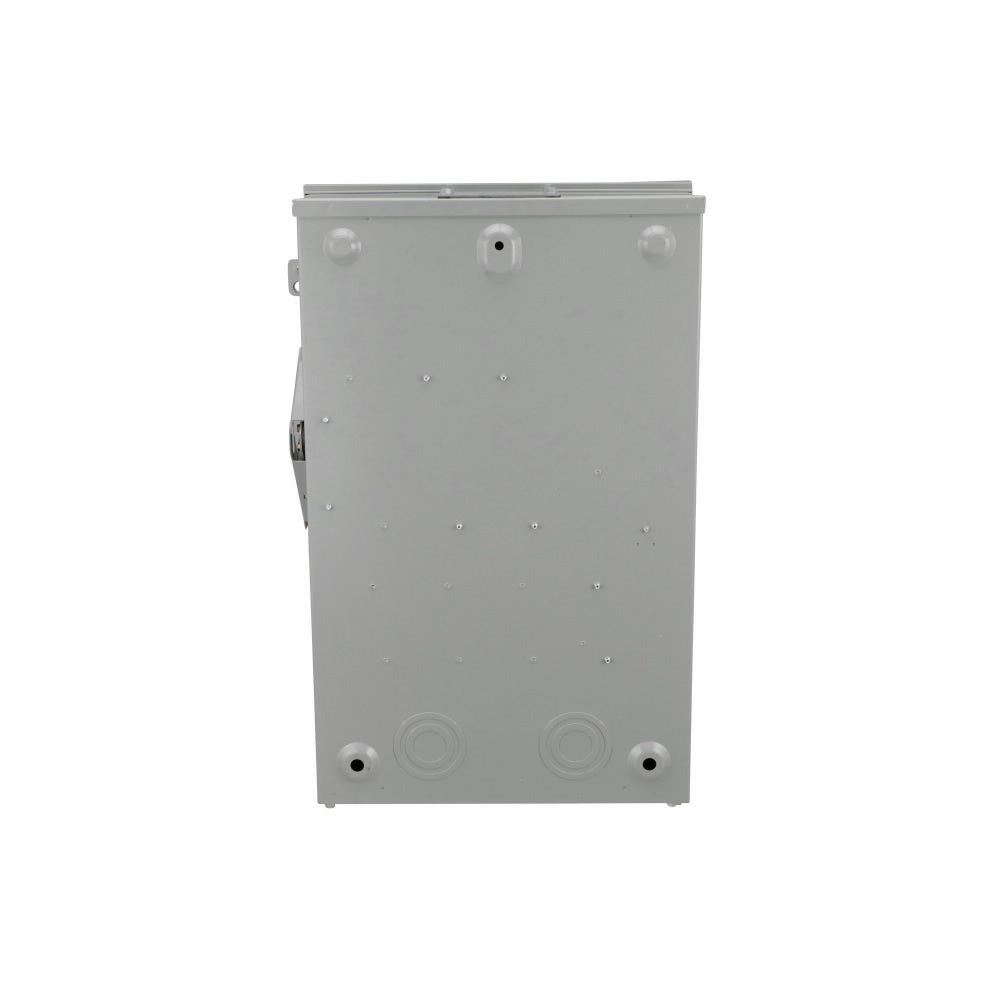

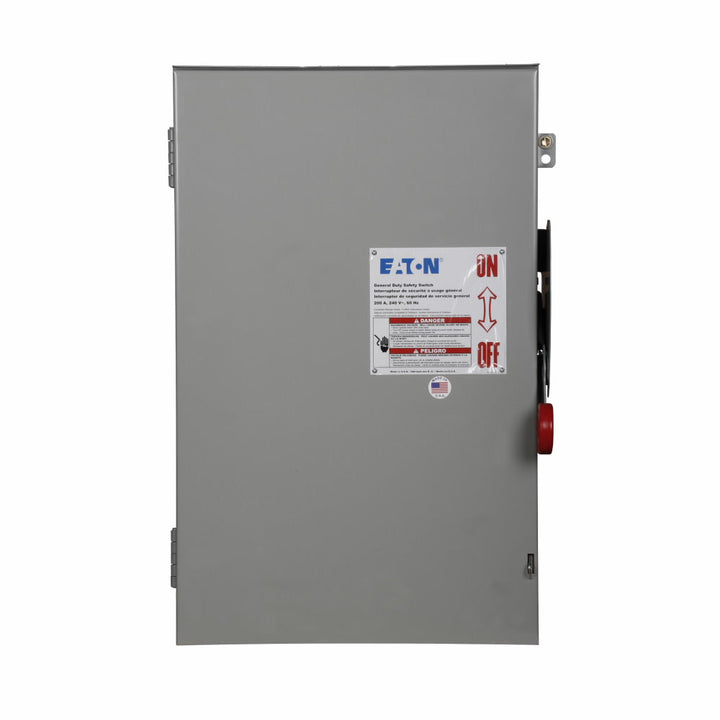

Cutler Hammer DG224NRK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC, 200A, and features a 100kA interrupting capacity at 240V for robust short-circuit protection. The unit is constructed with a NEMA 3R rainproof enclosure measuring 11.25" D x 25.5" H x 16" W and weighs 55 lb, built for durability. It is UL Listed and complies with industry standards for safety disconnects. This single-phase, 2-pole switch is typically applied in motor control centers, industrial machinery, and HVAC systems where a fused disconnect is required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, DG Series
Voltage Rating: 240V AC
Current Rating: 200A
Configuration: Single
Poles: 2
Phase: 1
AIC Rating: 100kA @ 240V
Fuse Class: R
NEMA Rating: NEMA 3R (Rainproof)
Dimensions: 11.25 in (Depth) x 25.5 in (Height) x 16 in (Width)
Weight: 55 lb
Standards: UL Listed
Compatible Frames: SGPA
Applications: Industrial power distribution, motor control centers, machinery disconnects
