Cutler Hammer DG223URB - Non-Fusible Disconnect 240V 100A 100kA AIC

Eaton
Price
Save $248.42
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

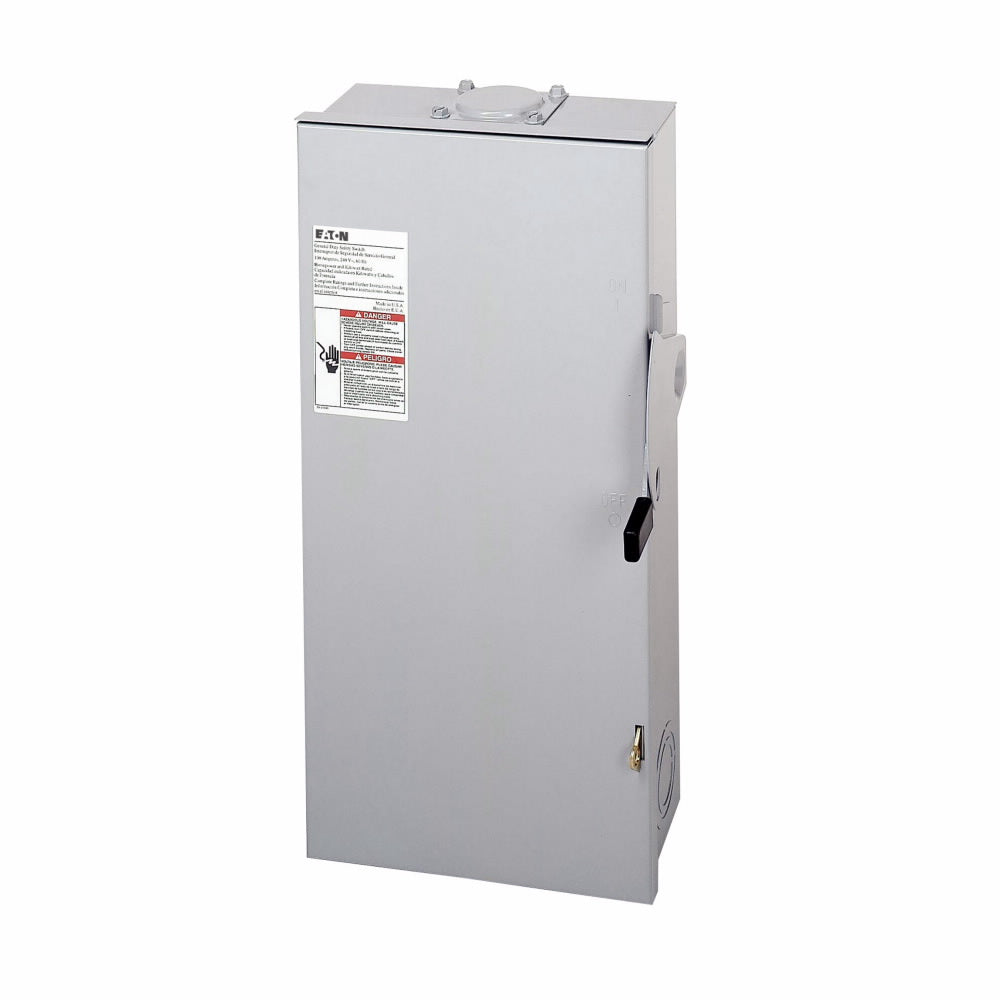

Cutler Hammer DG223URB is a non-fusible safety disconnect switch designed for providing a visible means of isolation and circuit protection in industrial power distribution. It is rated for 240V AC, 100A, and 1-phase operation with a high interrupting capacity of 100kA, housed in a robust NEMA 3R enclosure measuring 7.38" D x 19.25" H x 9.13" W and weighing 12 lb. The switch is UL Listed and features a NEC 230.62(C) compliant barrier for safe operation, and it is compatible with TED series panelboards. Its primary application is for service entrance and branch circuit isolation where a non-fusible disconnect is required.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, DG Series
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 100kA @ 240V
  • NEMA Rating: NEMA 3R
  • Dimensions: 7.38 in (Depth) x 19.25 in (Height) x 9.13 in (Width)
  • Weight: 12 lb
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Compatible Frames: TED
  • Country of Origin: United States


Product Identification
  • UPC: 782114731154
  • GTIN: 00782114731154
