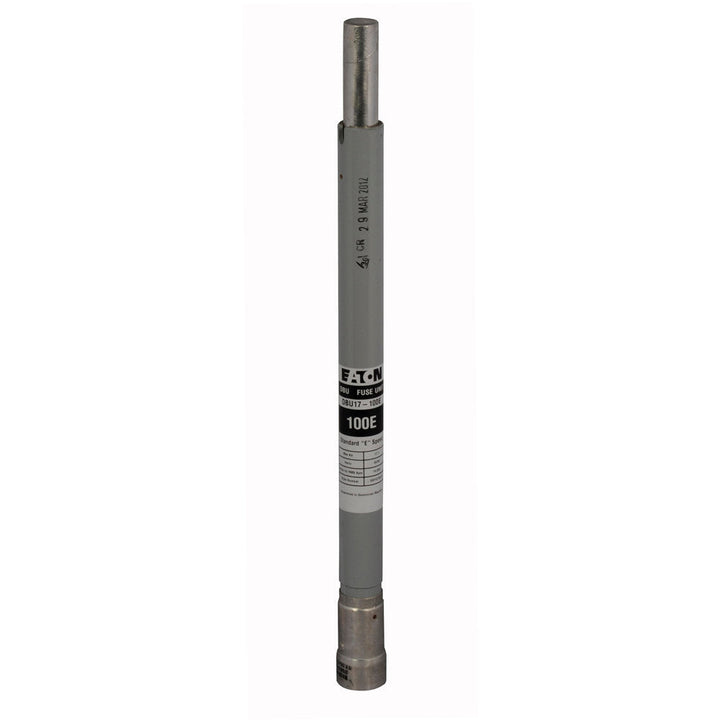

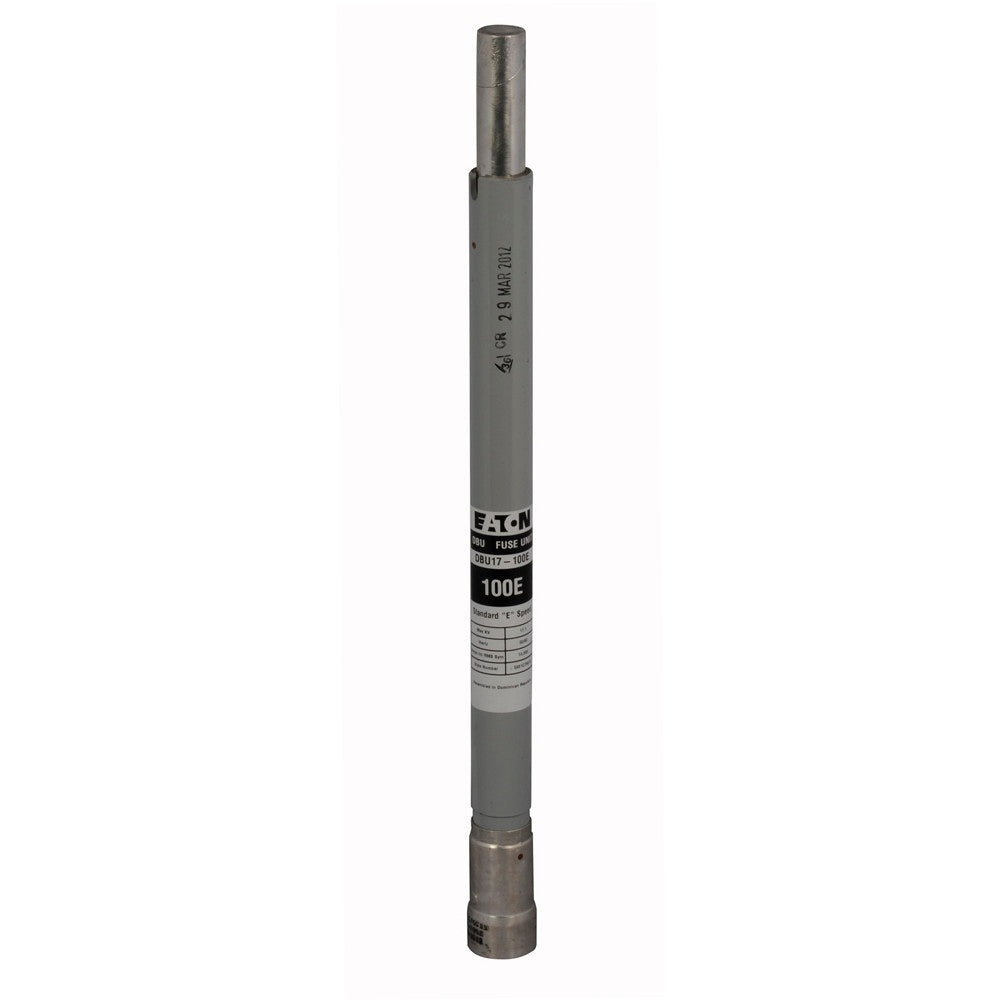

Eaton DBU17-100E - Medium Voltage Fuse 100A @ 17kV

Eaton
Price
Save $-210.96
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton DBU17-100E is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems up to 17kV. It features a 100A continuous current rating and provides a 14kA interrupting capacity at its rated voltage, housed within a robust, single-barrel ferrule-connected design with a 1.24-inch diameter and a total length of 19.1 inches. Constructed as a Class E fuse, it employs standard velocity operation to ensure reliable clearing characteristics and is engineered for compliance with the IEEE Std. C37.41 standard for design tests.

Key Features & Specifications
  • Type: DBU, Medium Voltage Current-Limiting Fuse, Single Barrel, Ferrule Connection
  • Voltage Rating: 17000V AC
  • Current Rating: 100A
  • Dimensions: 19.1 in L x 1.44 in H x 1.44 in W (1.24 in Diameter)
  • Weight: 2.13 lb
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • AIC Rating: 14kA @ 17kV
  • Class Rating: E
  • Velocity: Standard
  • Connection: Ferrule
  • Barrels: 1


Product Identification
  • UPC: 786676011099
  • GTIN: 00786676011099
