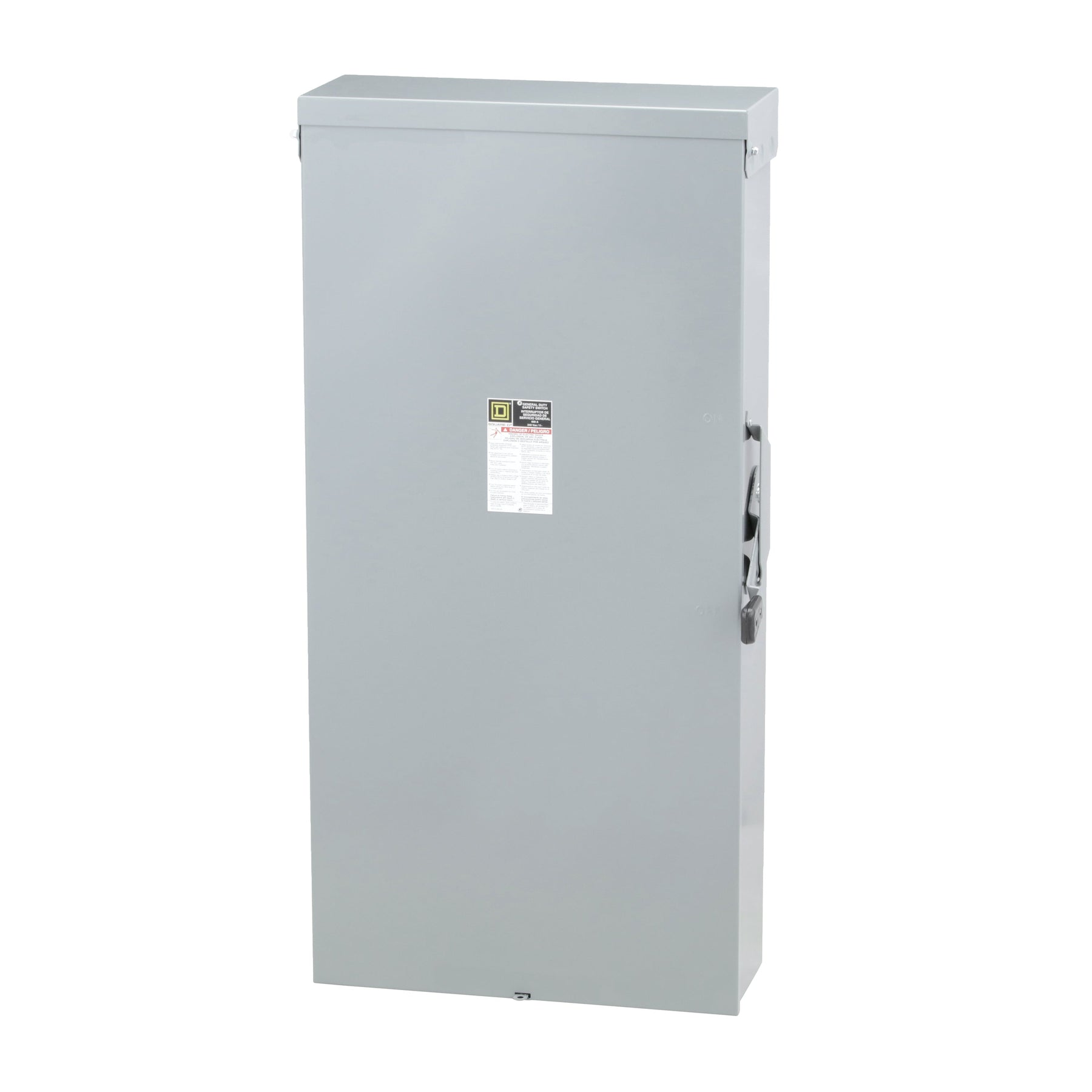

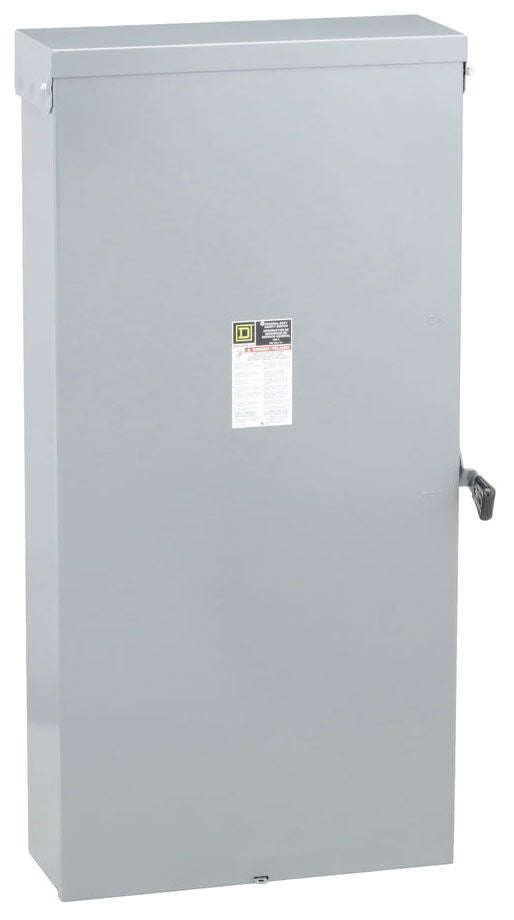

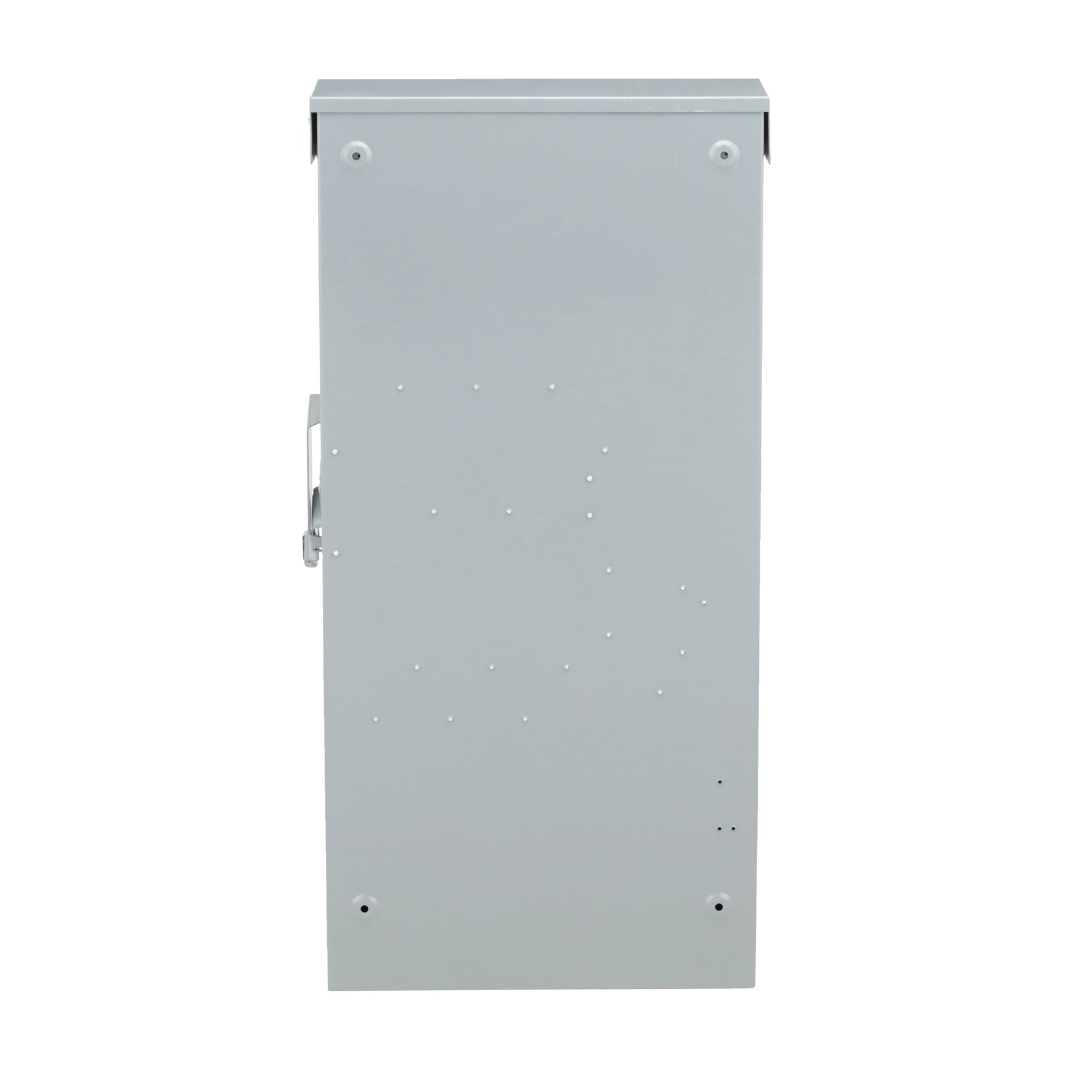

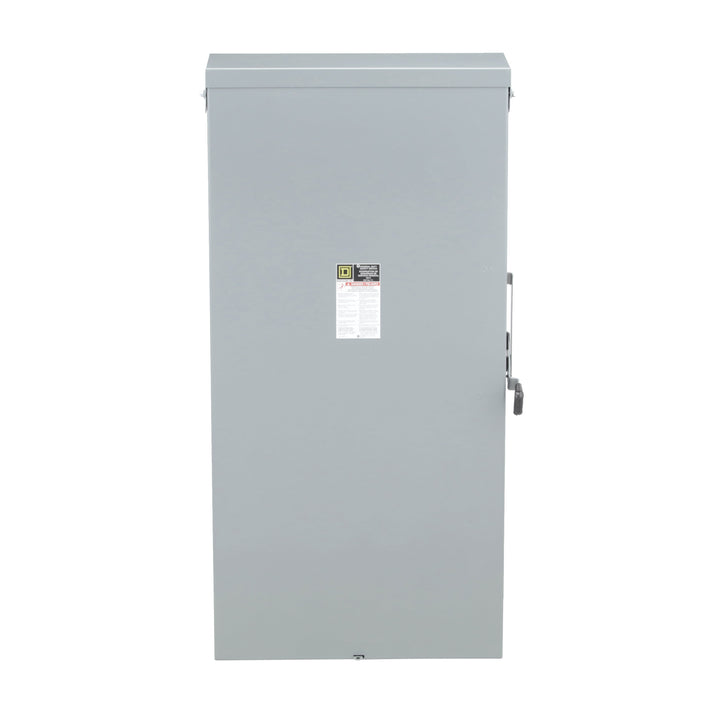

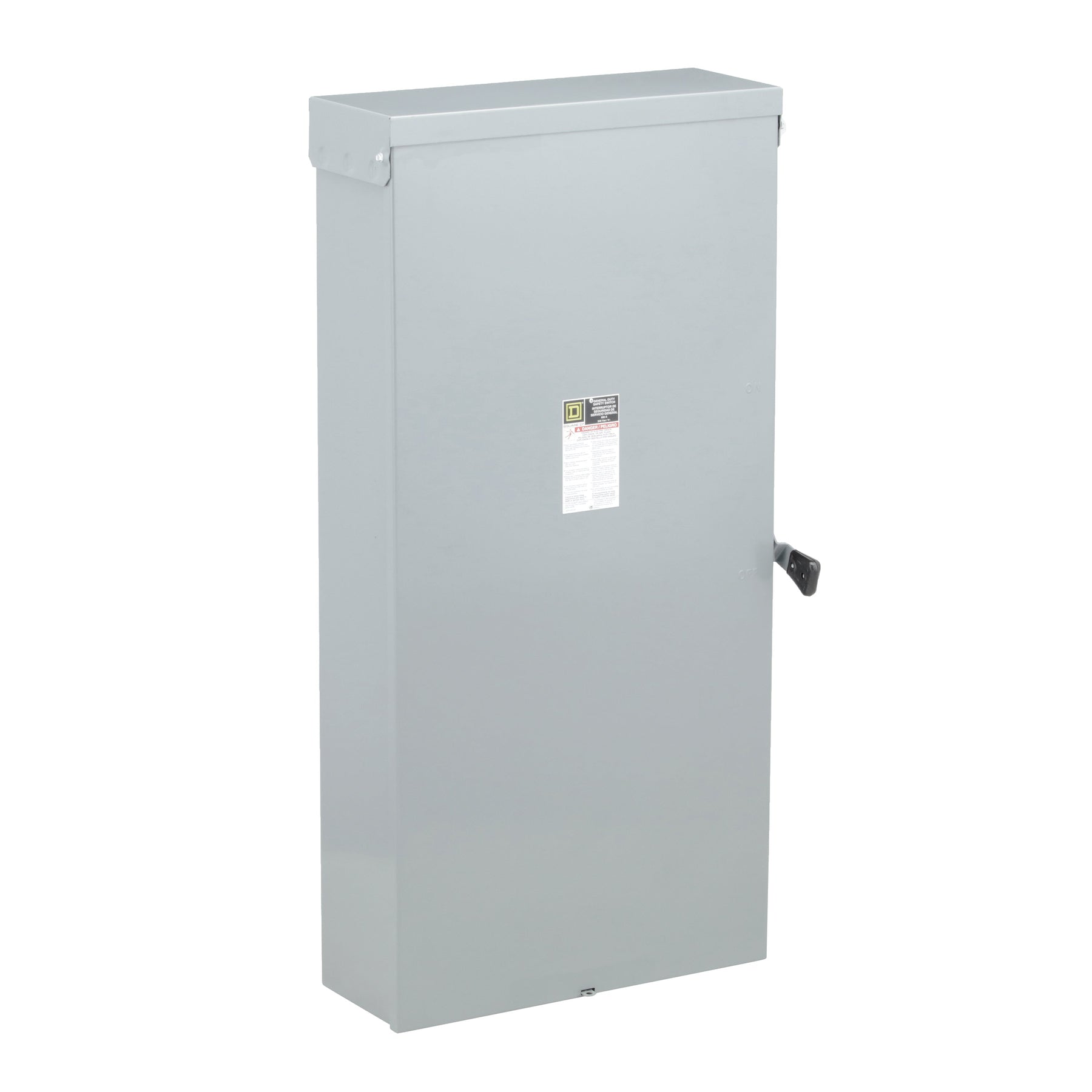

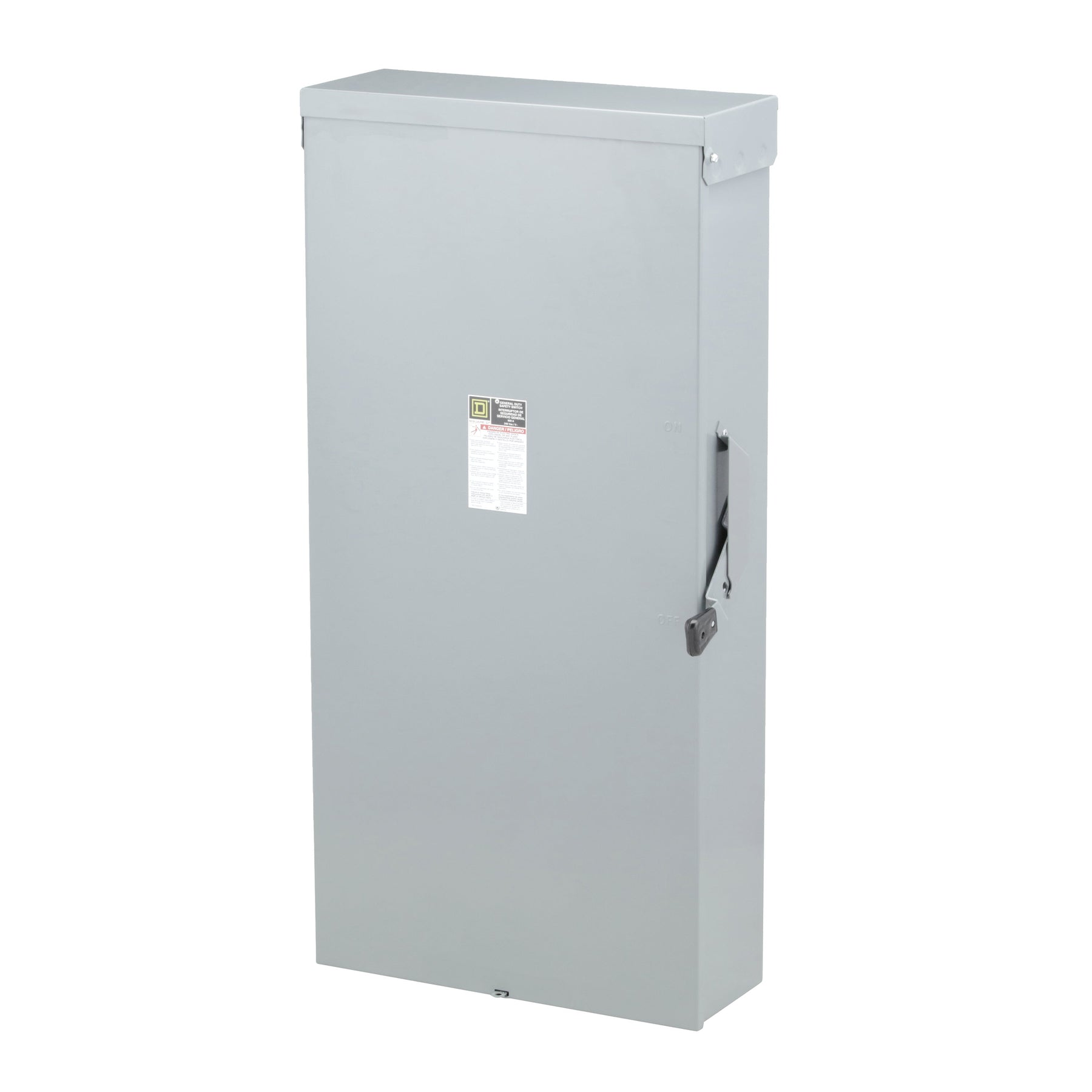

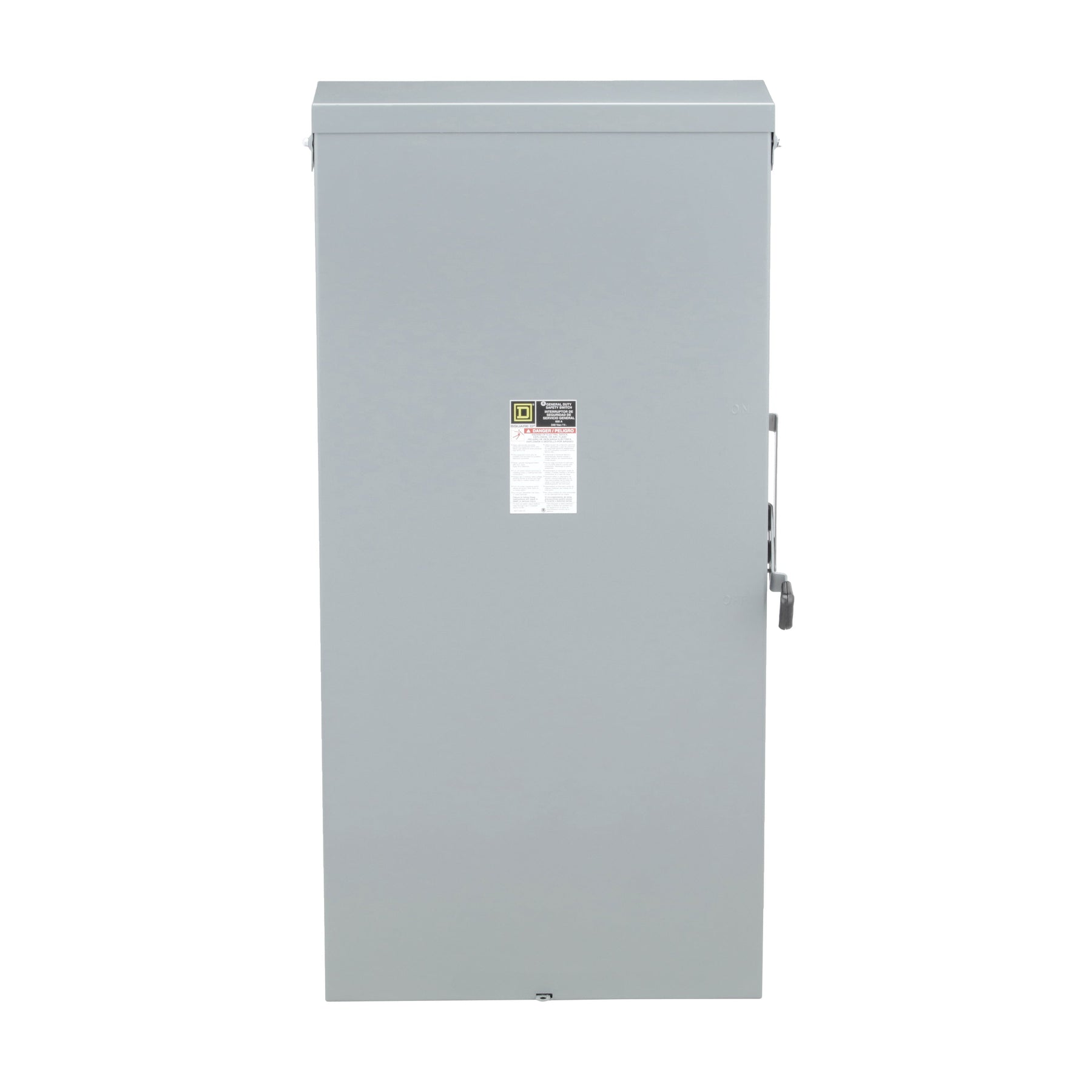

Square D D326NR - Fusible Disconnect 600A 3P (100kA AIC, NEMA 3R)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D D326NR is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding three-phase industrial applications. It features a 600A current rating and a 240V AC voltage rating, housed within a robust NEMA 3R enclosure measuring 1247.90 mm H x 638.30 mm W x 225.55 mm D and weighing 117 lb. This UL-listed disconnect switch is engineered for compliance with industry standards and offers a 100kA interrupting capacity at 240V. Its construction supports typical applications in industrial power distribution, motor control centers, and main service entrances where a fusible disconnect is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series E, Type D
  • Voltage Rating: 240V AC
  • Current Rating: 600A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Fuse Class: R
  • Wire Size: AWG 4 to 500 KCMil (Aluminum/Copper)
  • NEMA Rating: NEMA 3R
  • Dimensions: 1247.90 mm H x 638.30 mm W x 225.55 mm D (49.13 in x 25.13 in x 8.88 in)
  • Weight: 117 lb
  • Standards: UL Listed
  • Compatible Frames: RLF
  • Applications: Industrial power distribution, main disconnects, motor control centers
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901461661
  • GTIN: 00785901461661
