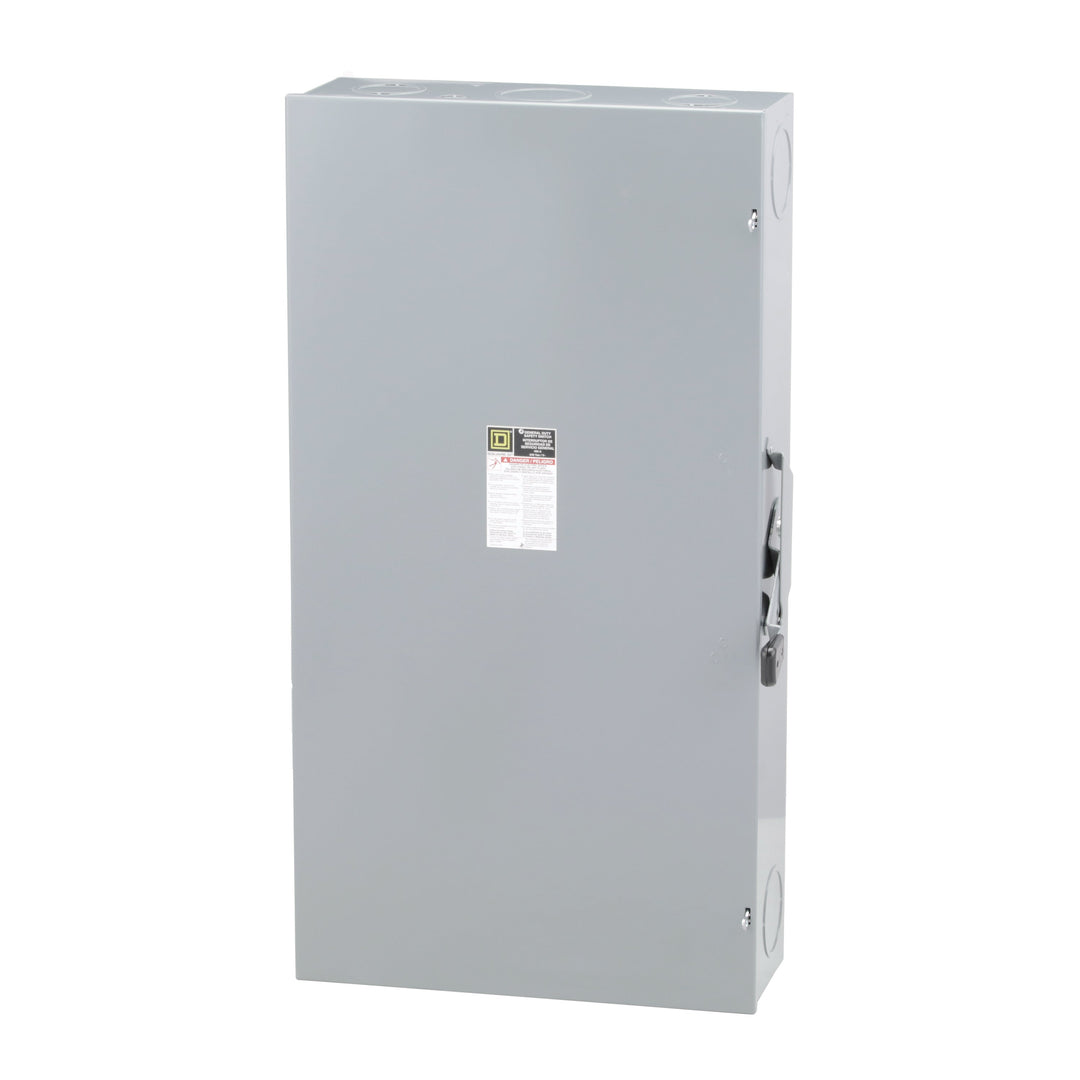

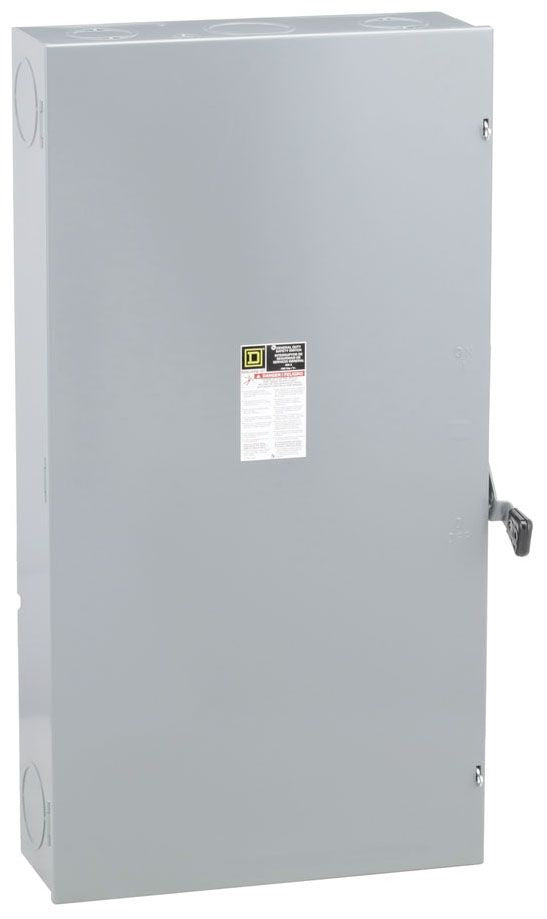

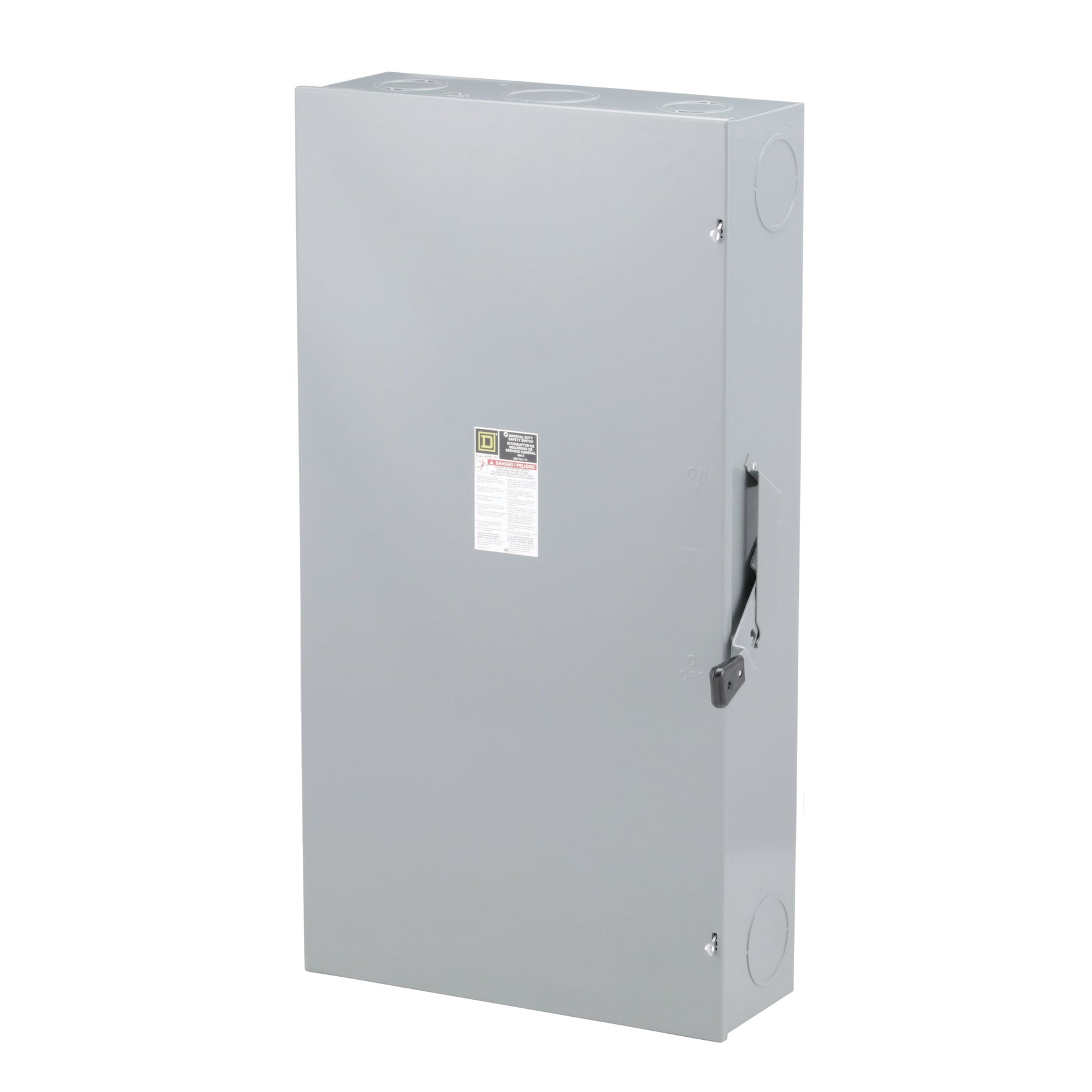

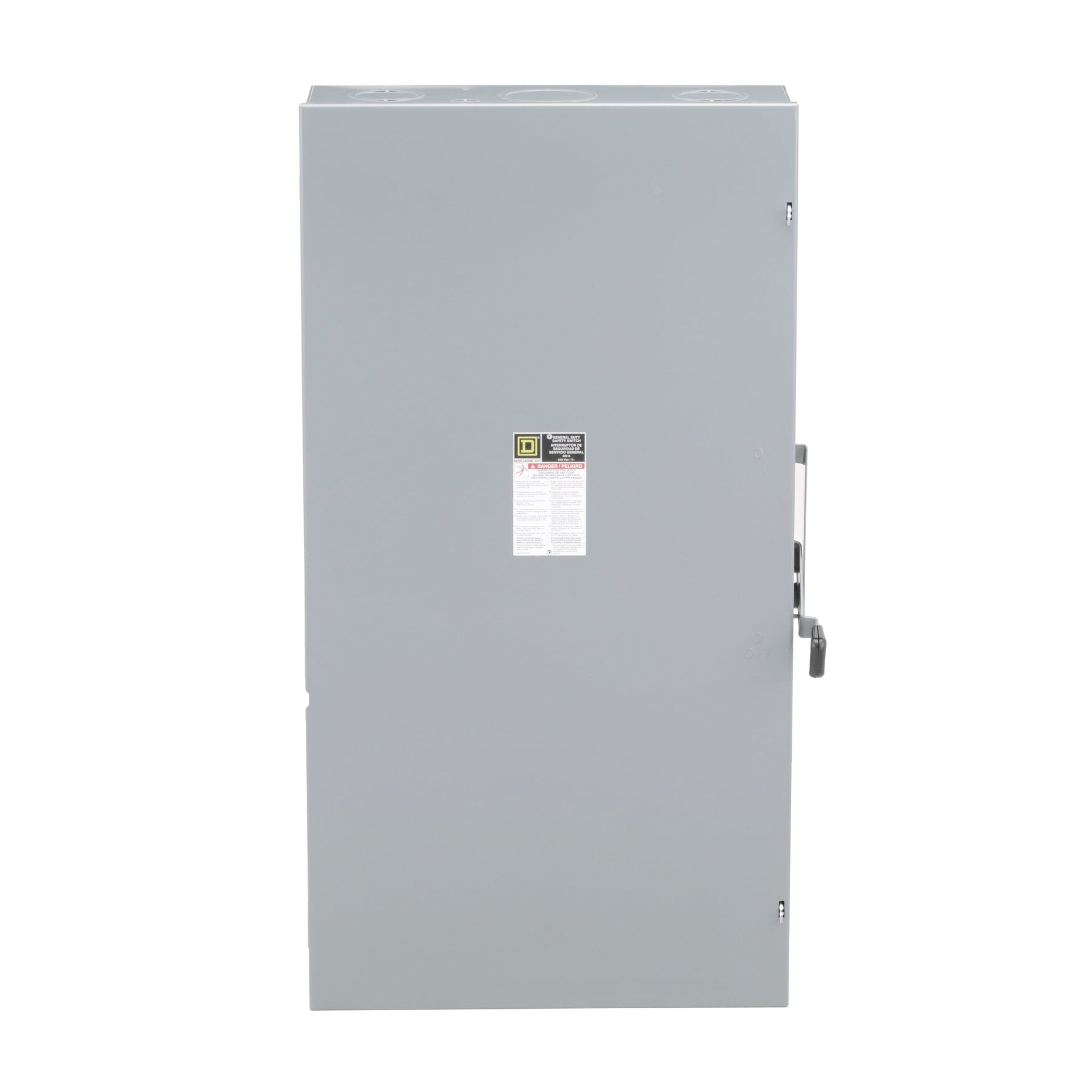

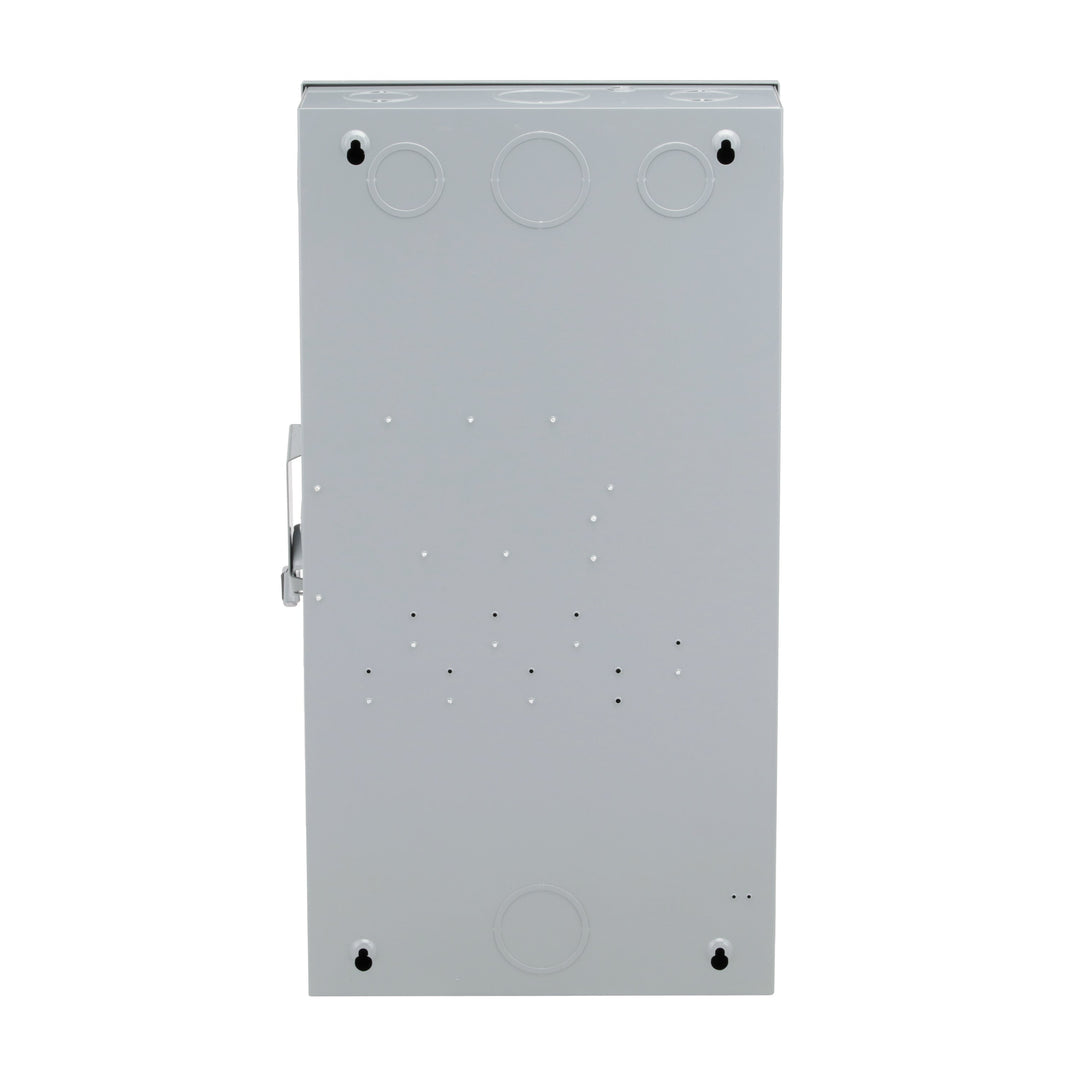

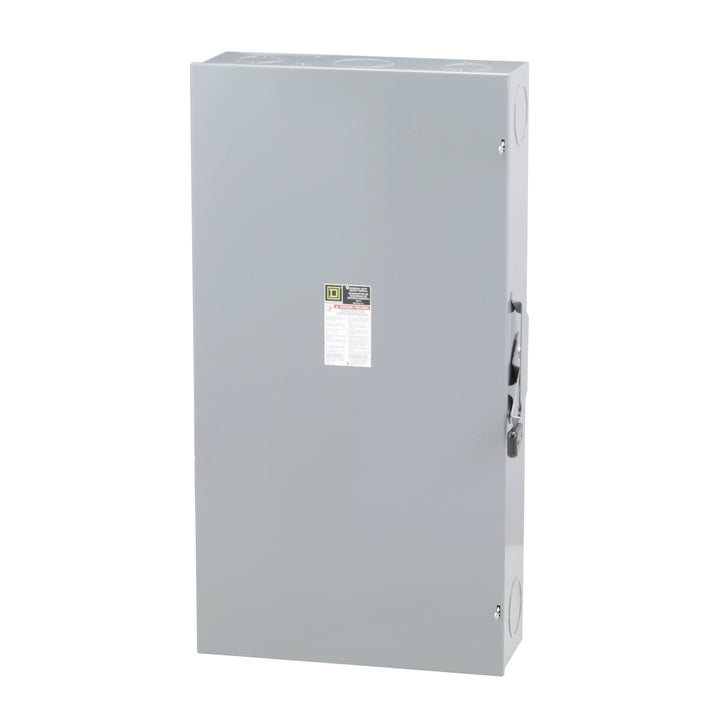

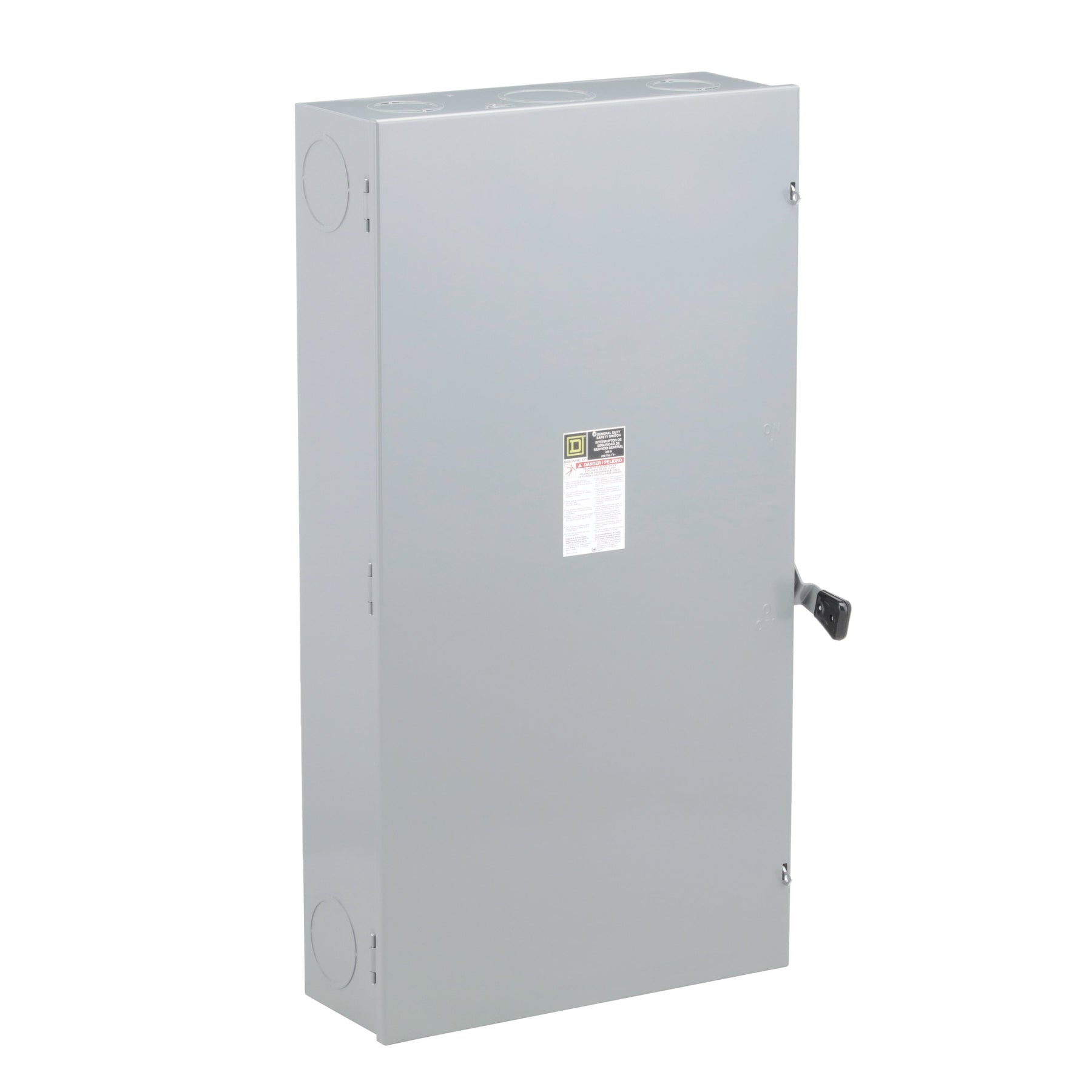

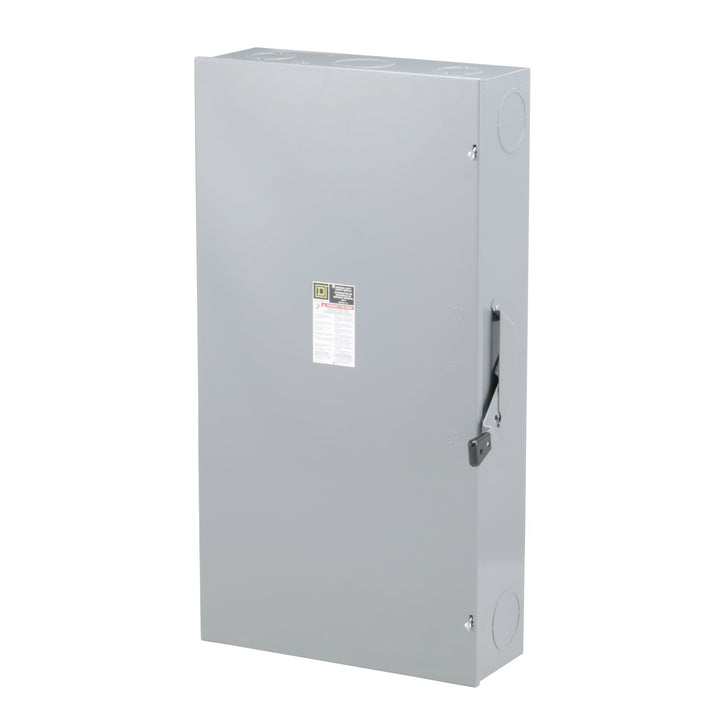

Square D D325N is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution systems. It features a 400A current rating and a 240V AC voltage rating, housed within a robust NEMA 1 enclosure measuring 1146.05 mm H x 631.95 mm W x 225.55 mm D and weighing 115 lb. The switch is UL listed and engineered for a high 100kA interrupting capacity at 240V, ensuring compliance with critical safety standards for protecting electrical equipment. Its three-pole, single-configuration design with Class R fuse compatibility is typically applied in motor control centers, industrial machinery, and main service disconnects where secure isolation is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series E, Type D
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Dimensions: 1146.05 mm H x 631.95 mm W x 225.55 mm D (45.12 in x 24.88 in x 8.88 in)
  • Standards: UL Listed
  • Applications: Main service disconnects, motor control centers, industrial power distribution
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Fuse Class: R
  • NEMA Rating: NEMA 1
  • Wire Size: AWG 1/0 to 600 kcmil Aluminum/Copper, AWG 1/0 to 300 kcmil Aluminum/Copper
  • Compatible Frames: RLF
  • Weight: 115 lb


Product Identification
  • UPC: 785901461555
  • GTIN: 00785901461555
