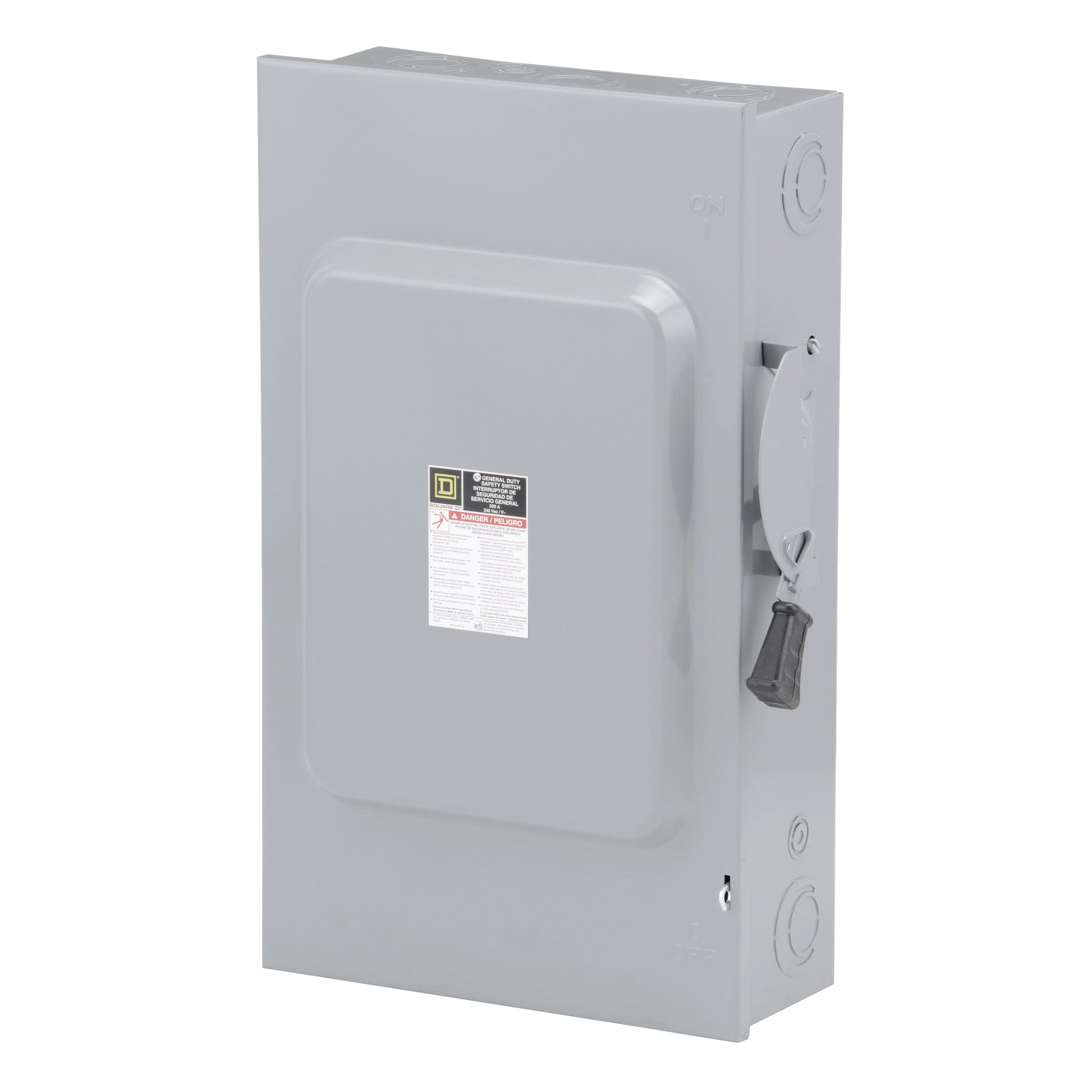

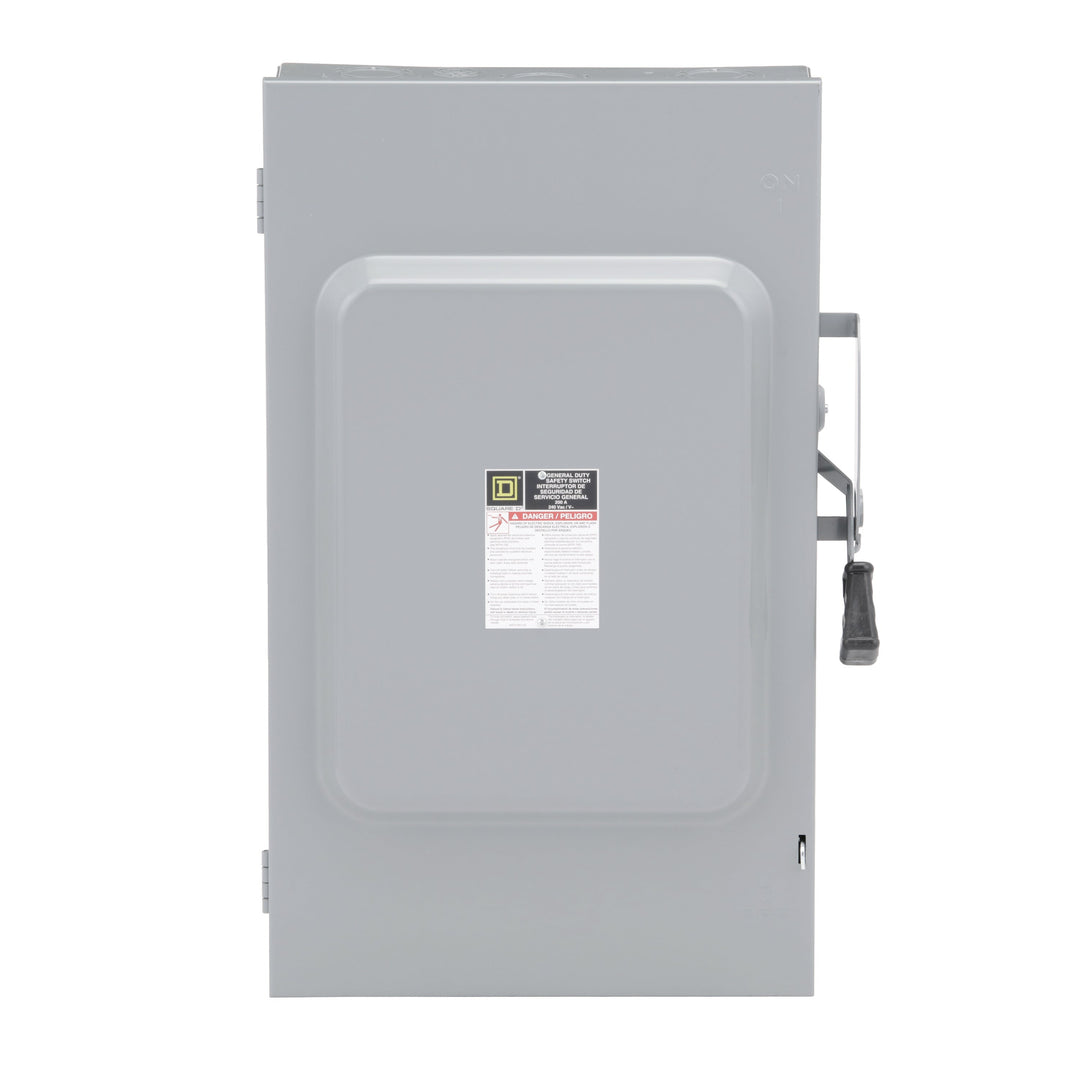

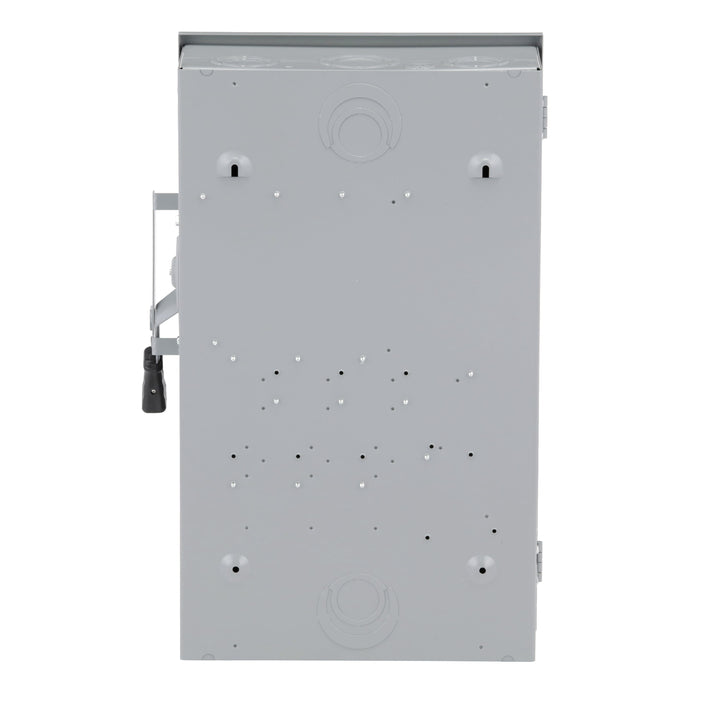

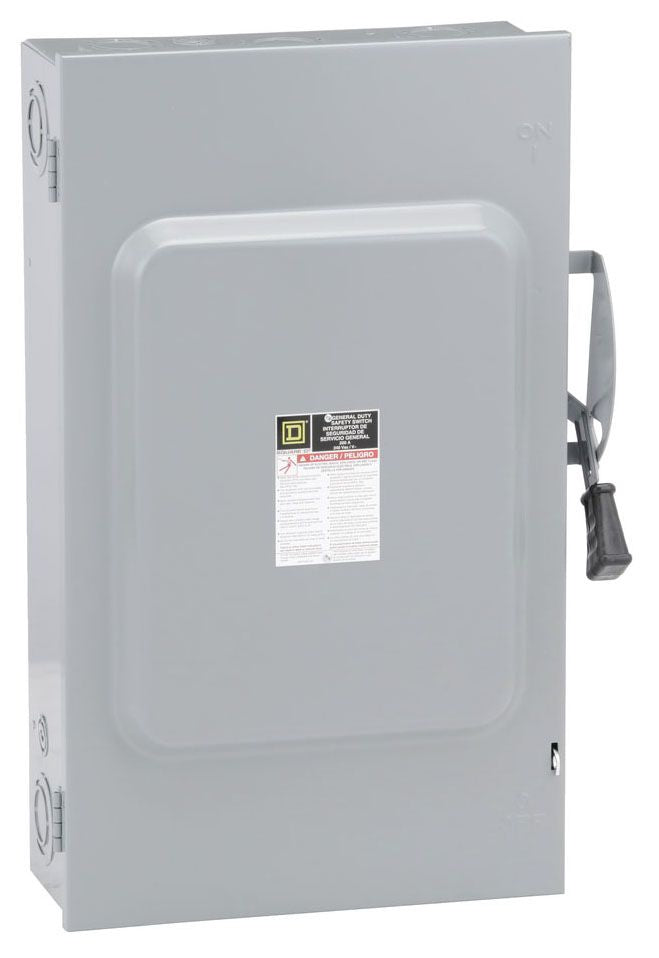

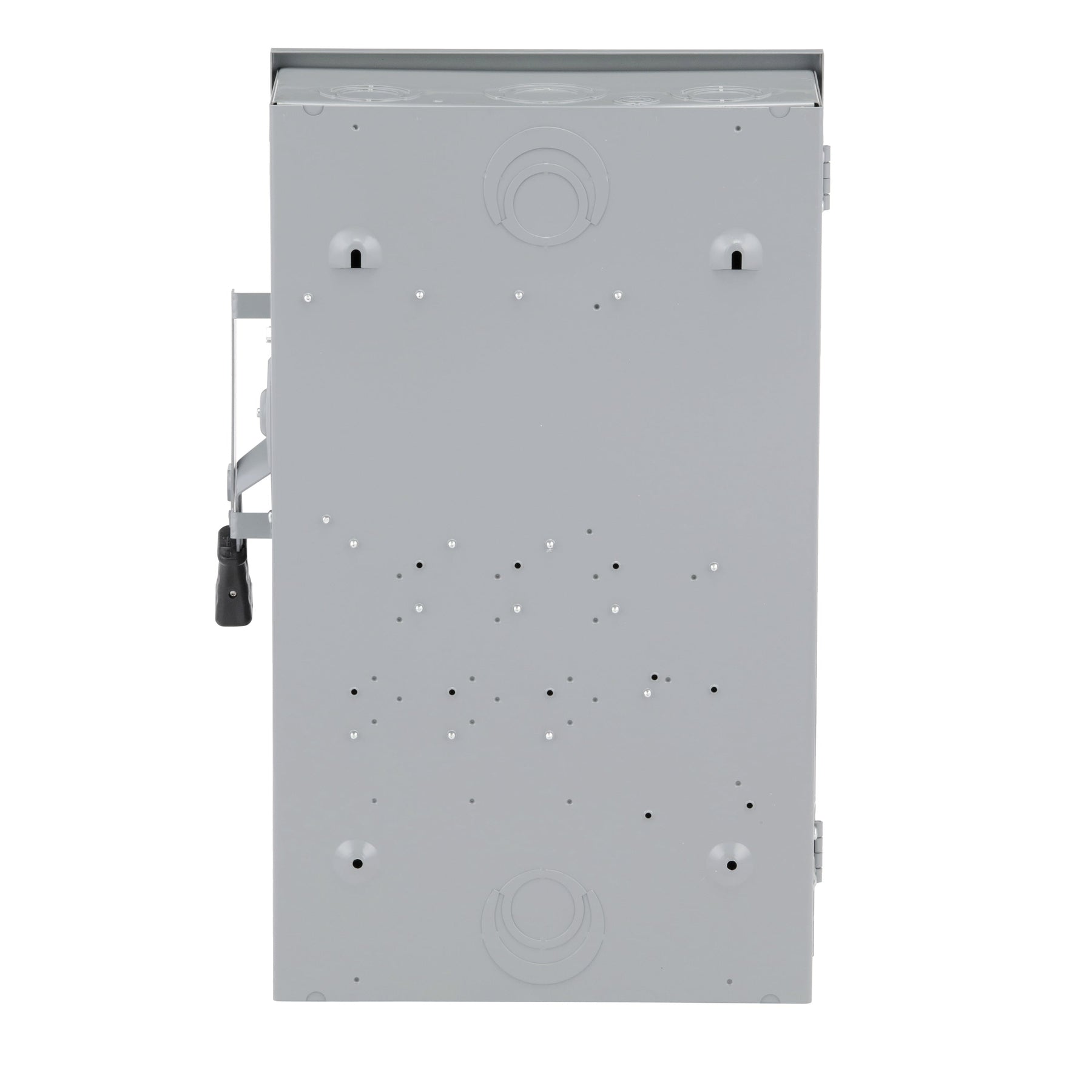

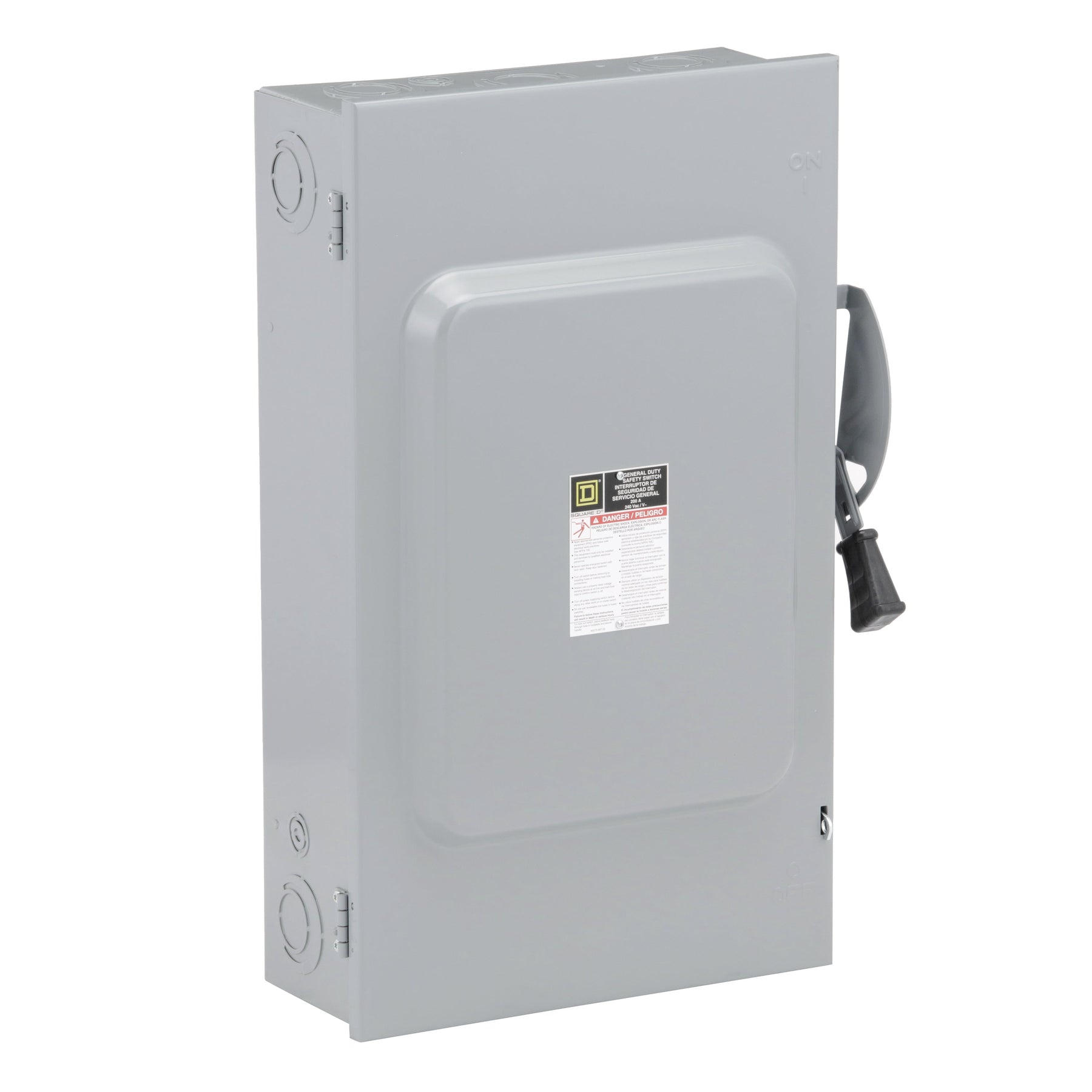

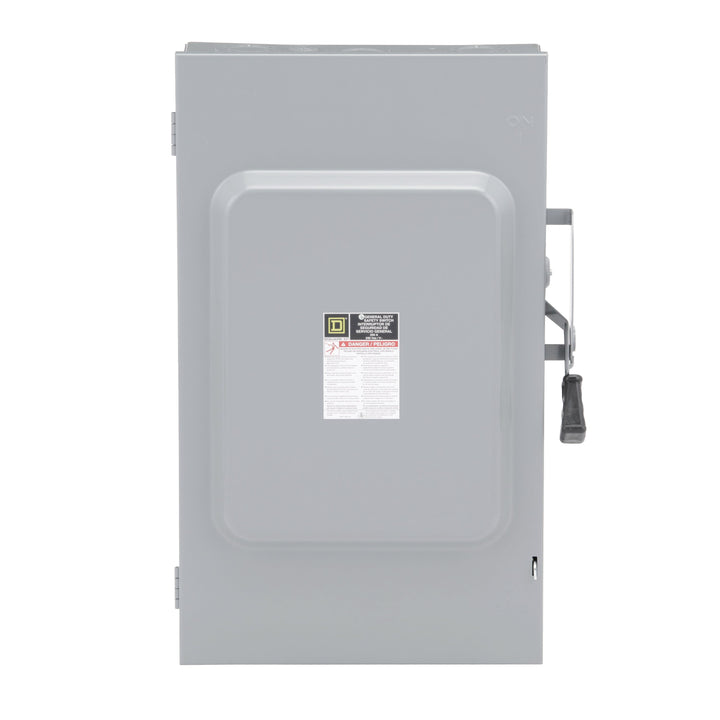

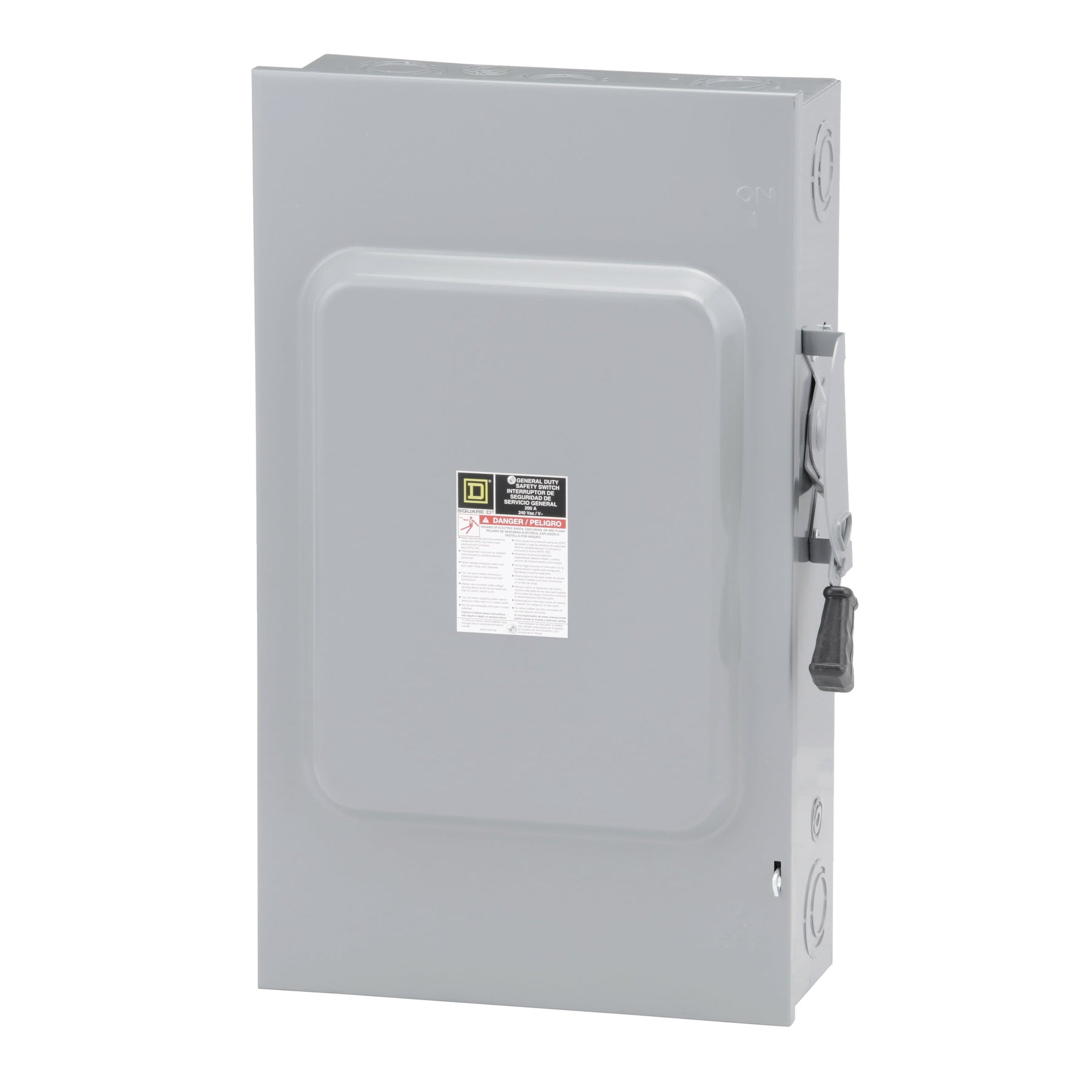

Square D D324N - Fusible Safety Switch 200A 240V 3P

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D D324N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 200A at 240V AC with an interrupting capacity of 100kA and features a robust NEMA 1 enclosure measuring 736.6 mm H x 482.6 mm W x 209.55 mm D. This UL-listed disconnect is constructed for use with Class R fuses and is compatible with NSE frames, ensuring reliable operation and personnel safety in demanding applications such as motor control centers and industrial machinery.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series E, Type D
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 736.6 mm H x 482.6 mm W x 209.55 mm D (29 in x 19 in x 8.25 in)
  • Weight: 43.25 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control, machinery
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 100kA @ 240V
  • Fuse Class: R
  • NEMA Rating: NEMA 1
  • Compatible Frames: NSE
  • Country of Origin: United States


Product Identification
  • UPC: 785901461470
  • GTIN: 00785901461470
