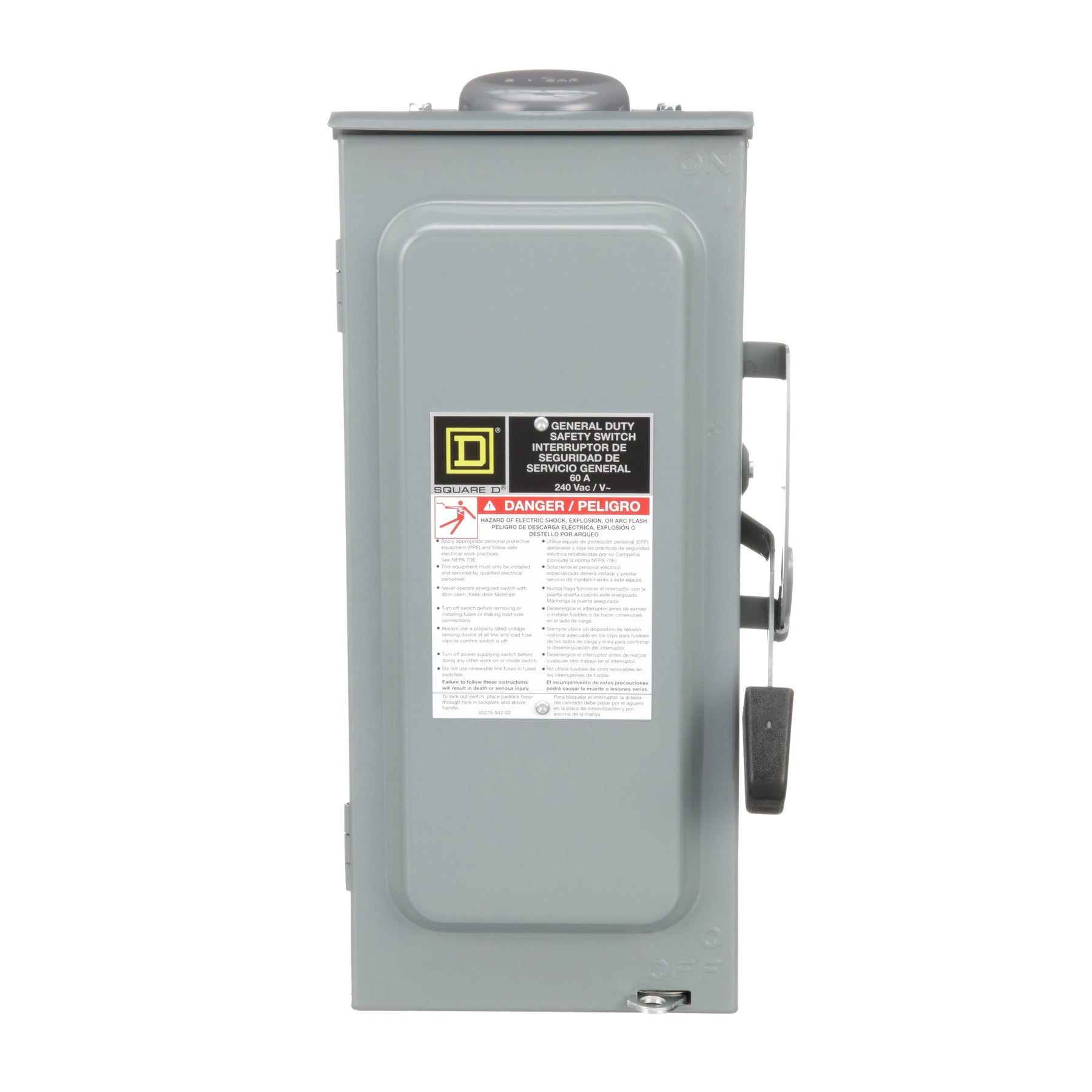

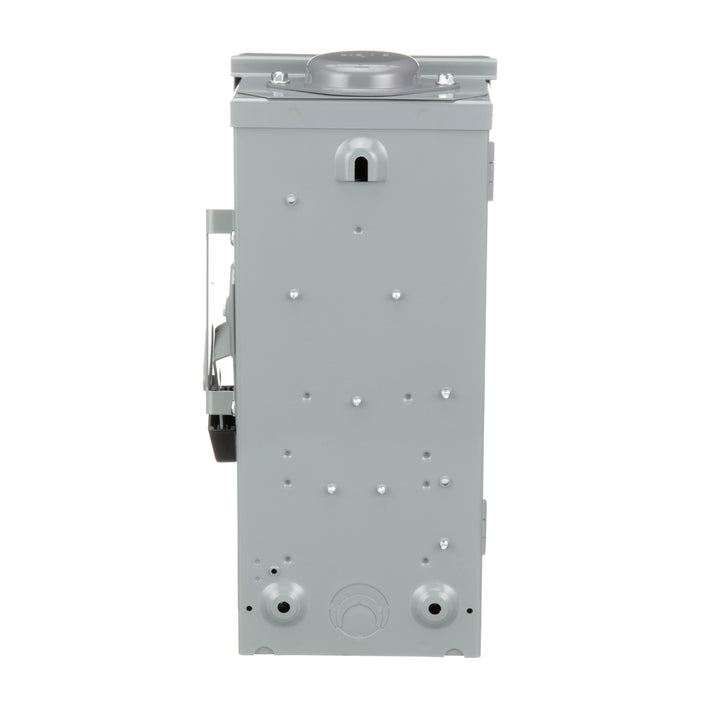

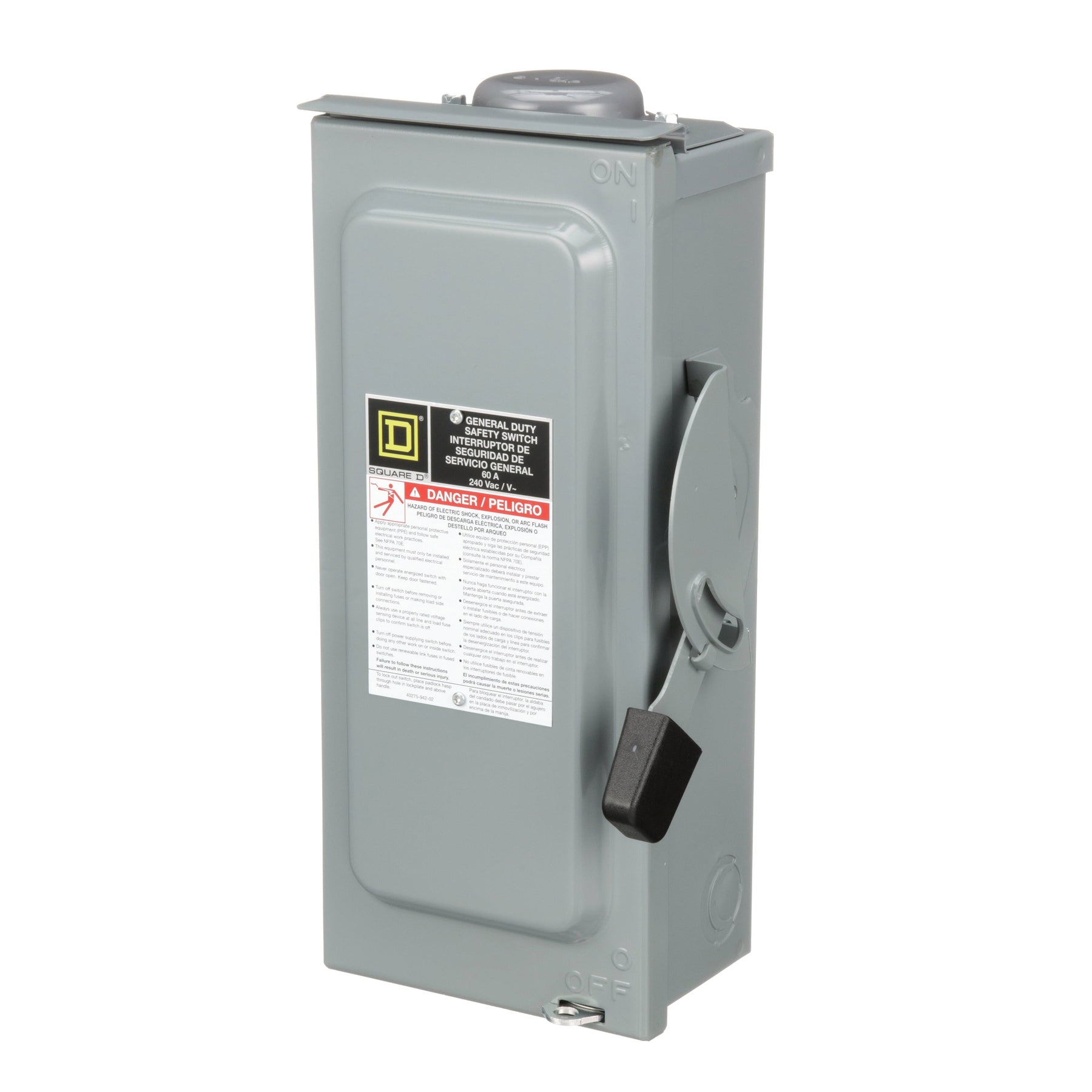

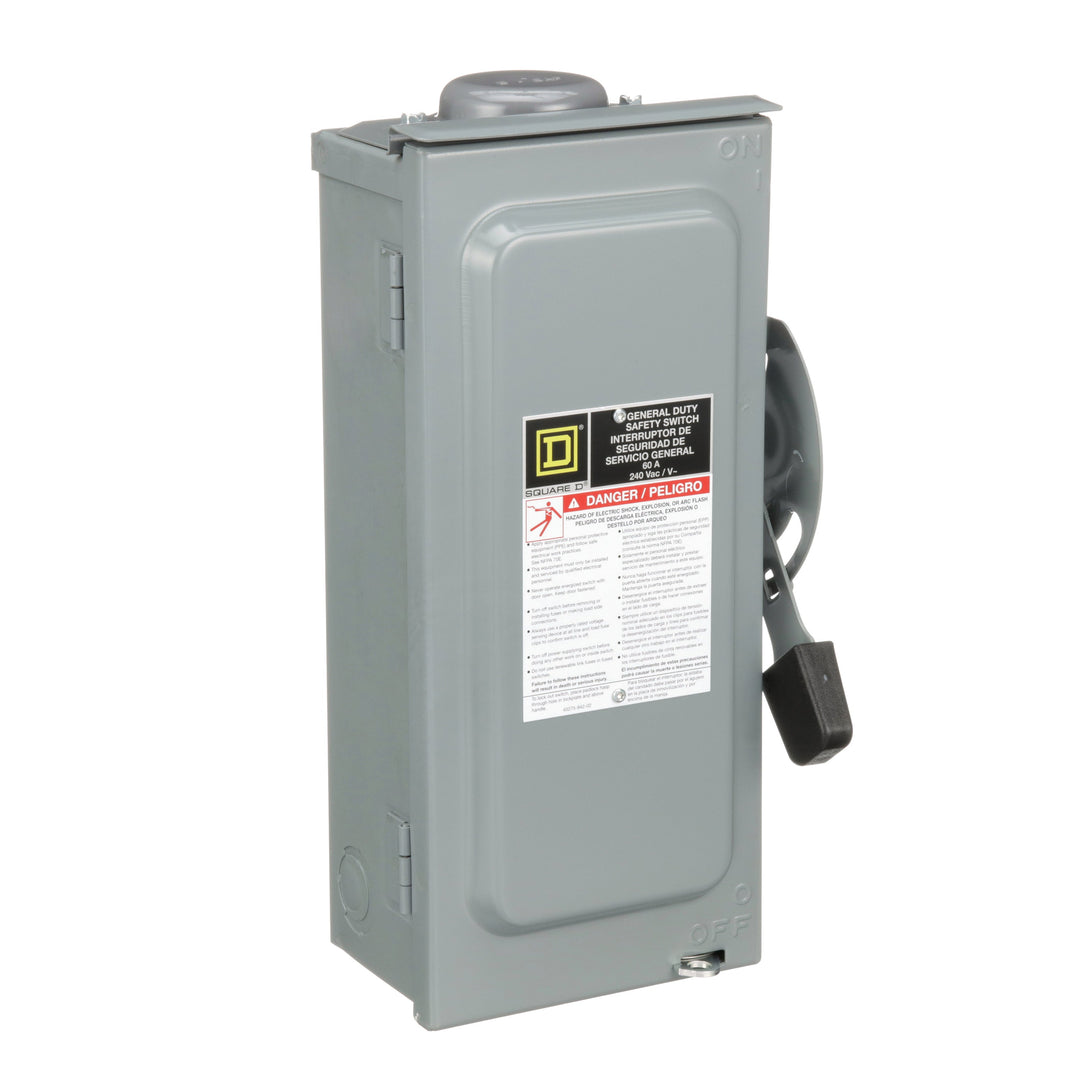

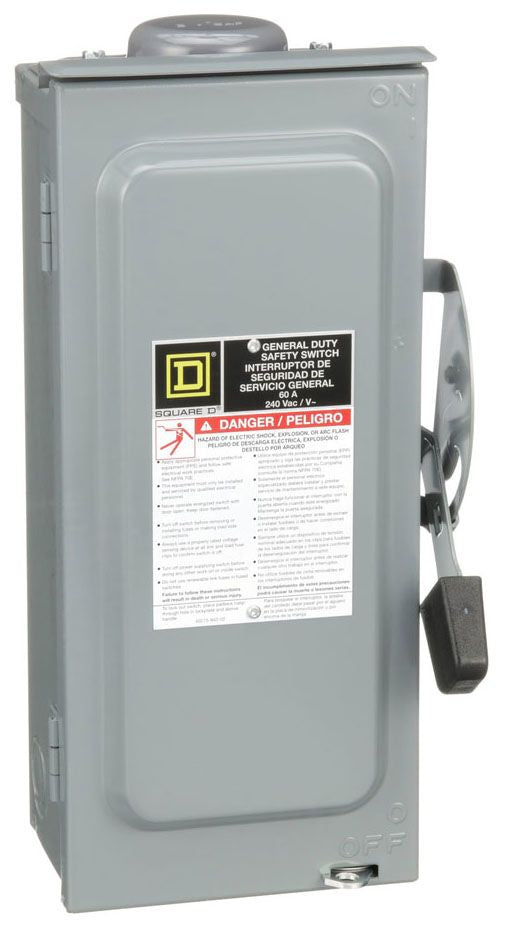

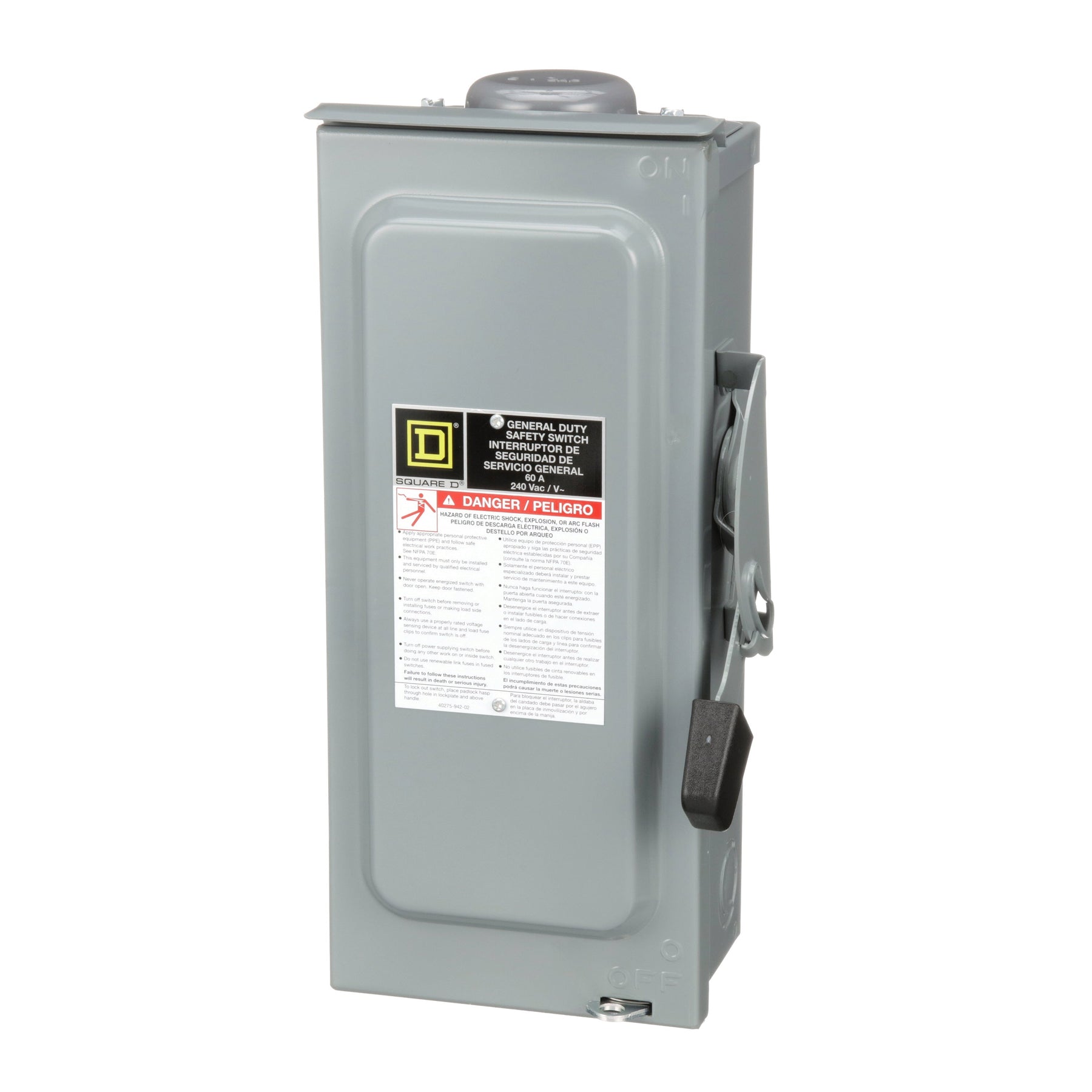

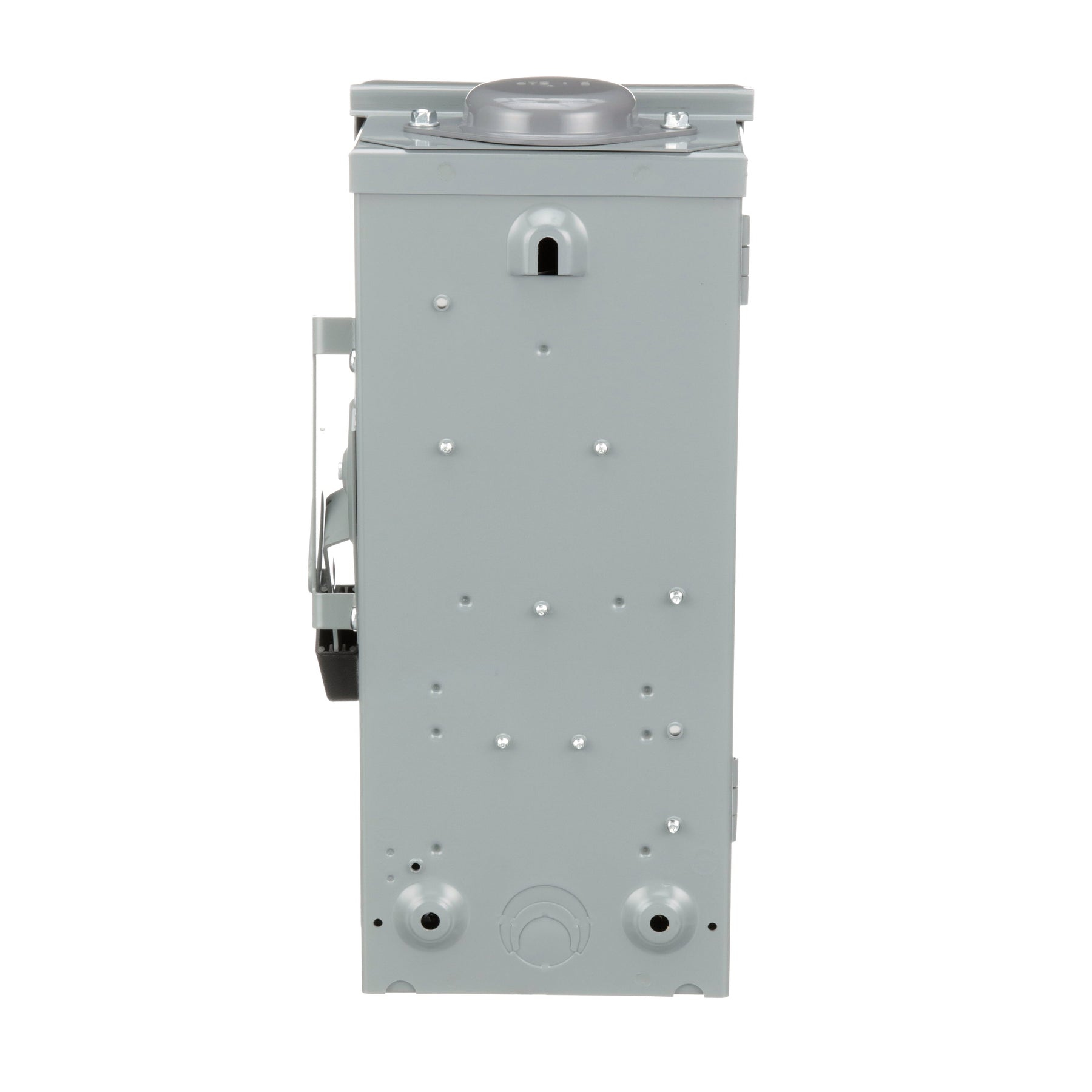

Square D D322NRB - Fusible Safety Switch 60A 240V 3P (NEMA 3R)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D D322NRB is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 60A at 240V AC with an interrupting capacity of 100kA, housed in a robust NEMA 3R enclosure measuring 377.95 mm H x 189.23 mm W x 123.70 mm D and weighing 8.589 lb for outdoor use. The switch is UL listed and accepts Class H, K, or R fuses, making it suitable for applications such as motor control centers, HVAC systems, and industrial machinery disconnects where reliable isolation is critical.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series F, Type D, single configuration
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 14.88 in (377.95 mm) H x 7.45 in (189.23 mm) W x 4.87 in (123.70 mm) D
  • Standards: UL listed, NEMA 3R enclosure rating
  • Applications: Industrial power disconnects, motor control, HVAC, machinery
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC rating: 100kA @ 240V
  • Fuse Class: H, K, R
  • Compatible Frames: NSE
  • Country of Origin: United States
  • Weight: 8.589 lb


Product Identification
  • UPC: 785901461289
  • GTIN: 00785901461289
