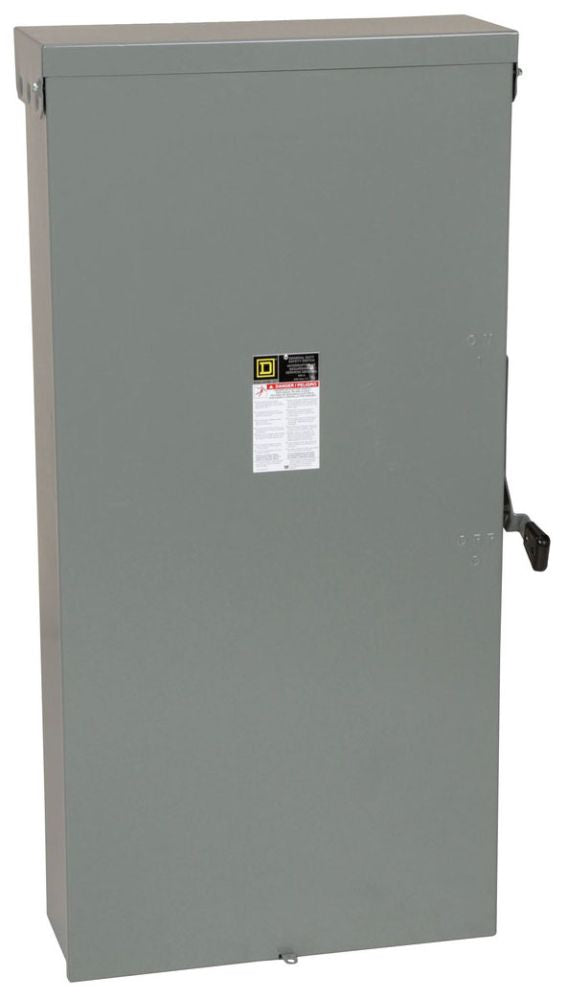

Square D D226NR - Fusible Safety Switch 600A 240V (NEMA 3R)

Square D
Price
Save $-1,317.53
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D D226NR is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and protection in industrial power distribution. It is rated for 600A at 240V AC/DC and features a robust NEMA 3R enclosure measuring 1247.9 mm H x 638.3 mm W x 225.55 mm D, constructed for durability. The switch is UL listed and complies with industry standards, offering a high interrupting capacity of 100kA at 240V. Its typical applications include service entrance equipment, motor control centers, and main disconnects where secure isolation is critical.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series E, Type D
  • Voltage Rating: 240V AC/DC
  • Current Rating: 600A
  • Configuration: Single, 2-pole
  • Dimensions: 1247.90 mm H x 638.30 mm W x 225.55 mm D (49.13 in x 25.13 in x 8.88 in)
  • Weight: 110 lb
  • Standards: UL listed, NEMA 3R enclosure rating
  • Applications: Main service disconnects, industrial power distribution, motor control
  • Switch Style: Fusible
  • Phase: 1
  • AIC Rating: 100kA @ 240V
  • Fuse Class: R
  • Wire Size: AWG 4 to 500 KCMil (Aluminum/Copper)
  • Compatible Frames: RLF
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901460855
  • GTIN: 00785901460855
