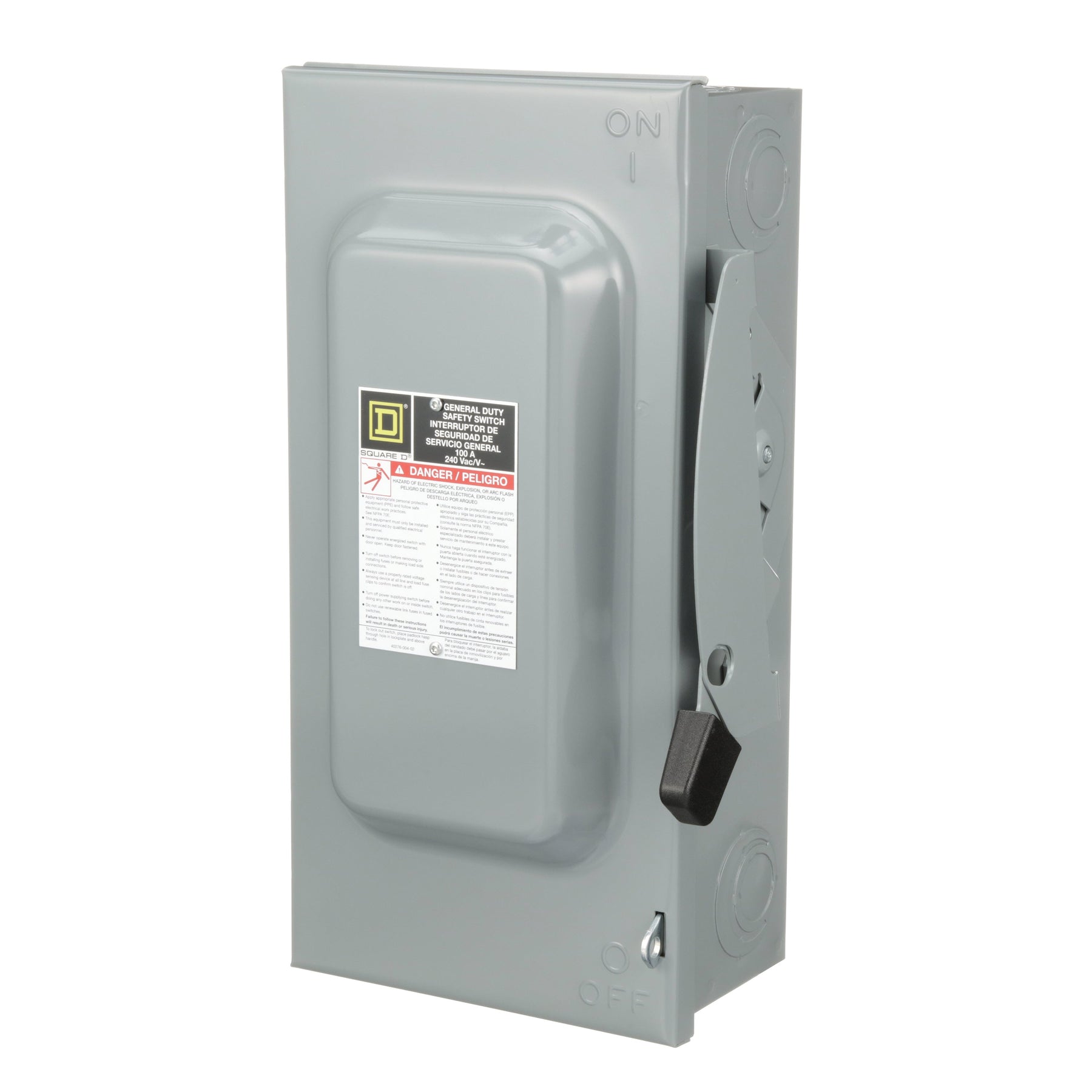

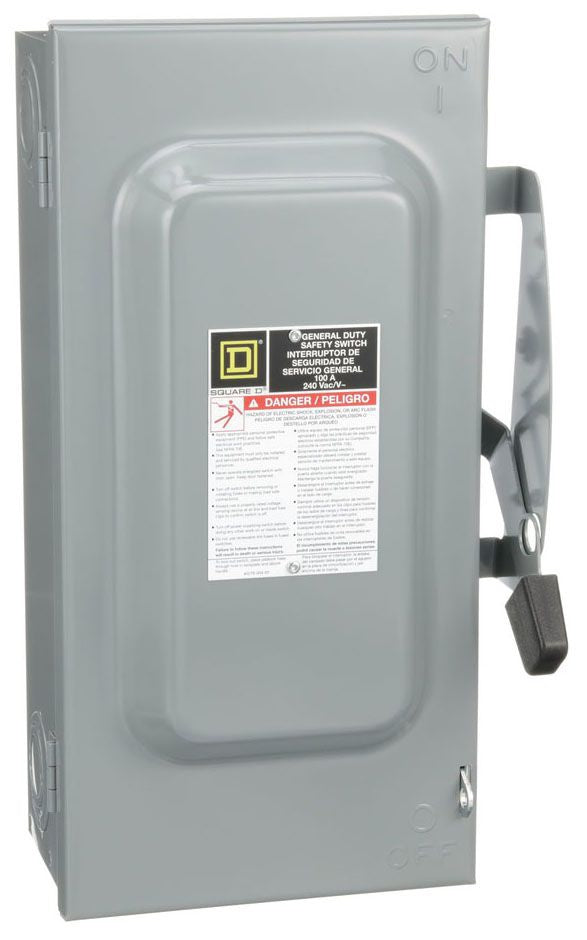

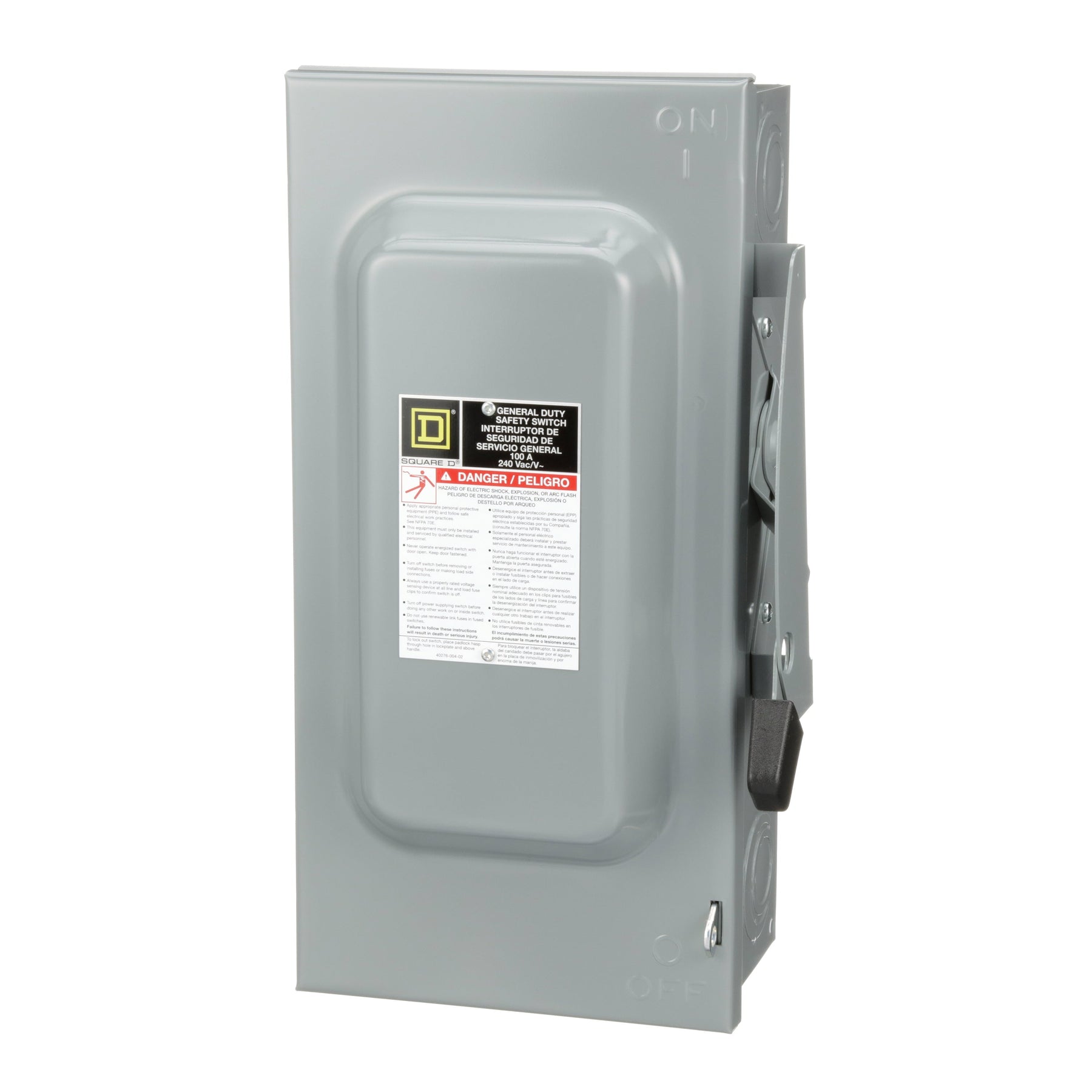

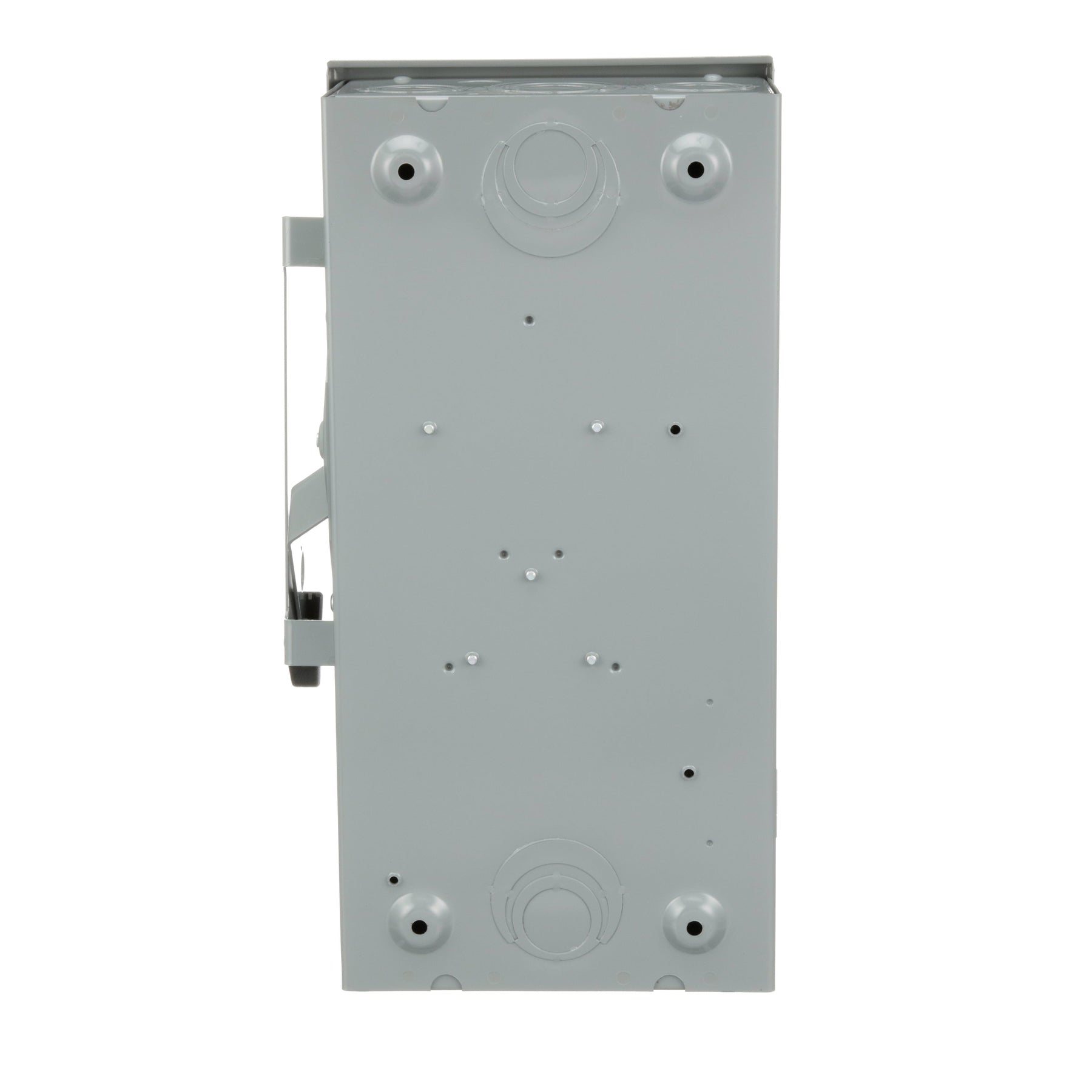

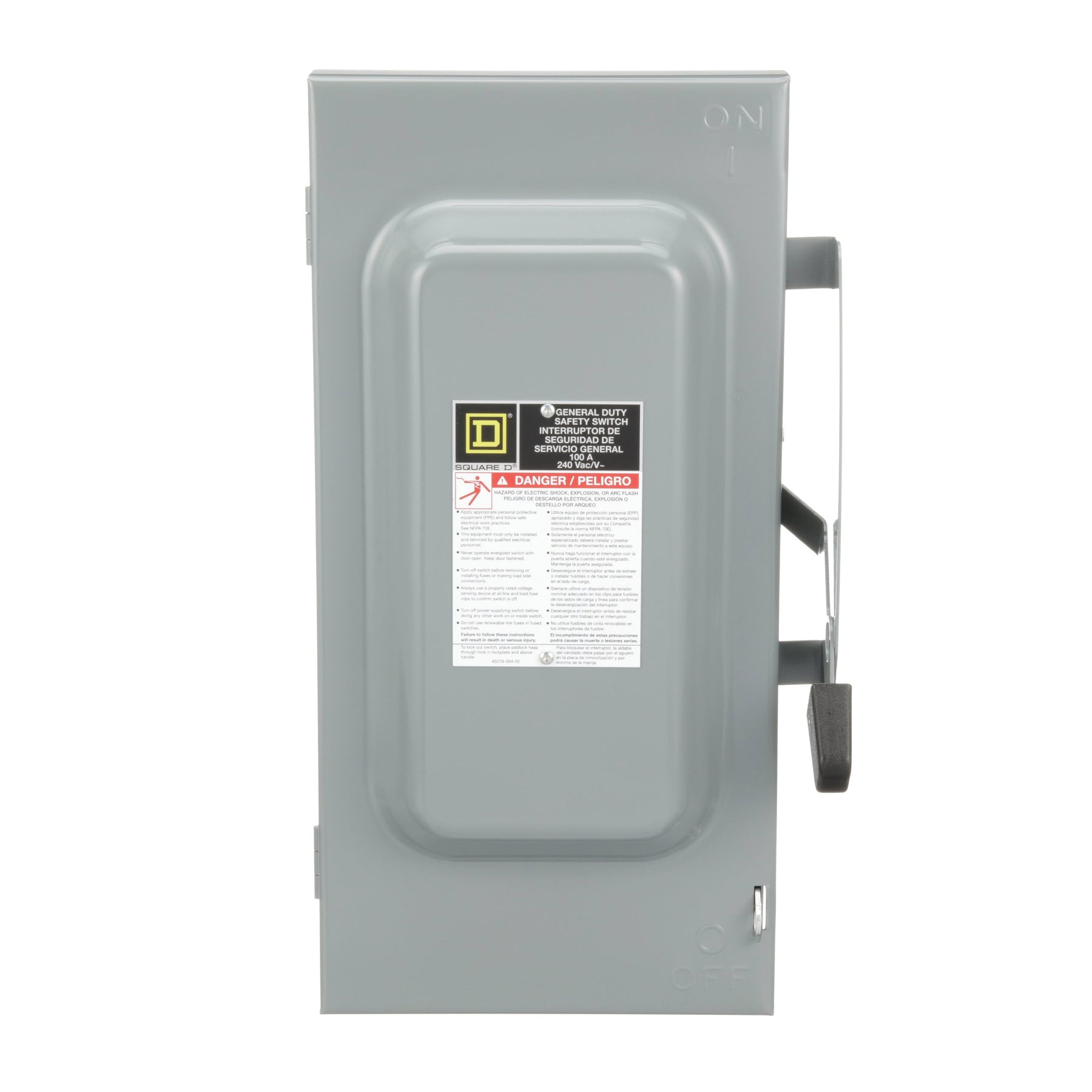

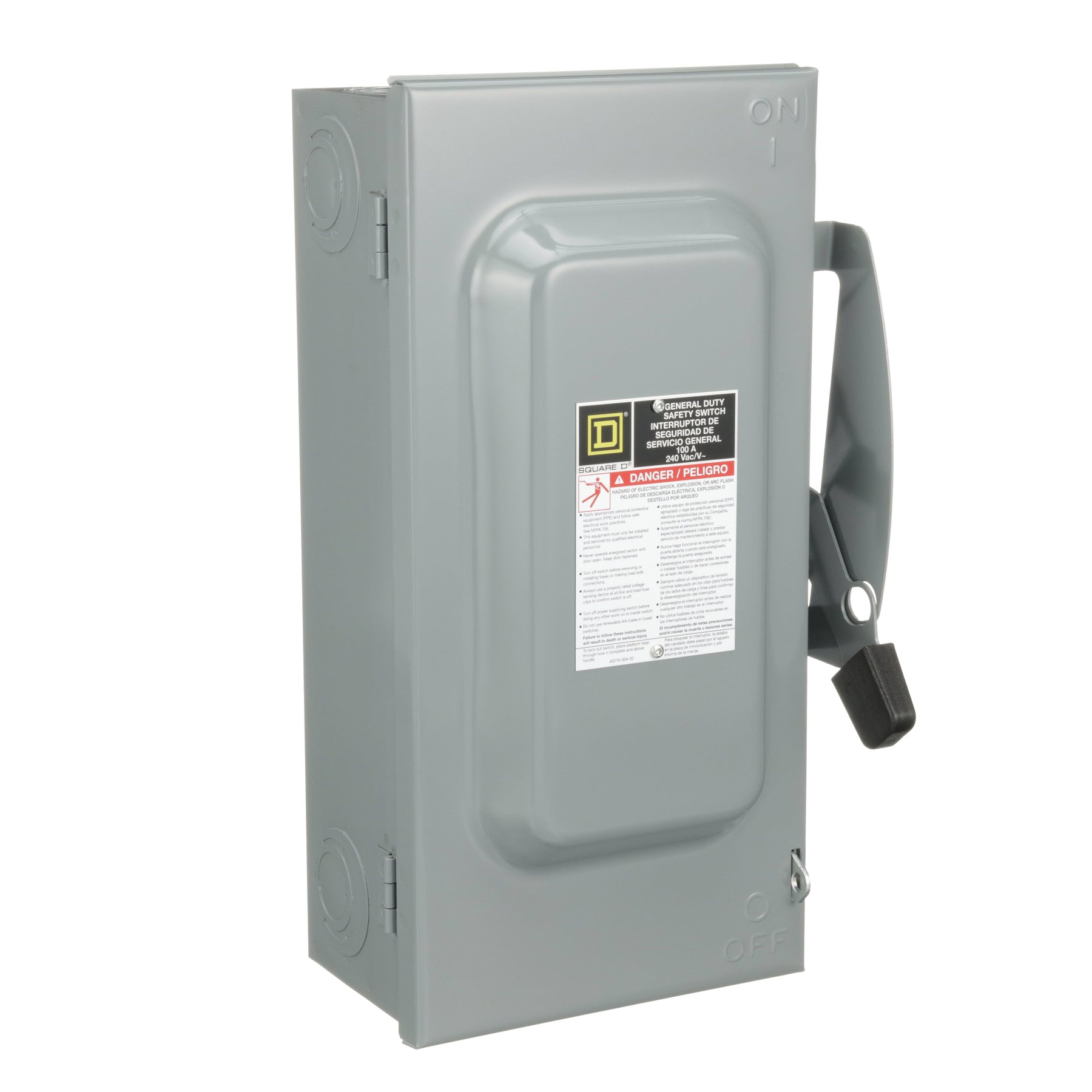

Square D D223N - Fusible Disconnect Switch 100A 240V (NEMA 1 Enclosure)

Square D D223N is a fusible safety disconnect switch designed for circuit protection and isolation in industrial applications. This 100A rated switch operates at 240V AC with a 100kA interrupting capacity and features a compact NEMA 1 enclosure measuring 10.56" x 6.5" x 17.5" (WxDxH) with rugged construction. UL listed for safety compliance, this Series F disconnect utilizes Class R fuses and is compatible with RLF frames for reliable performance. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring secure power isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 10.56 in x 6.5 in x 17.5 in (WxDxH)
• Standards: UL listed
• Applications: Industrial machinery, motor control centers, electrical distribution
• Switch Type: Disconnect
• Configuration: Single
• Poles: 2
• AIC rating: 100kA@240V
• Fuse Class: R
• Nema Rating: NEMA 1
• Phase: 1
• Compatible Frames: RLF
• Family: Series F
• Weight: 6.74 lb
• Country of Origin: United States

Product Identification

• UPC: 785901460688
• GTIN: 00785901460688
