Cutler Hammer CSH2200N - Molded Case Breaker 200A 2P (35kA AIC)
Cutler Hammer CSH2200N - Molded Case Breaker 200A 2P (35kA AIC)
Cutler Hammer CSH2200N - Molded Case Breaker 200A 2P (35kA AIC)
Cutler Hammer CSH2200N - Molded Case Breaker 200A 2P (35kA AIC)
Cutler Hammer CSH2200N - Molded Case Breaker 200A 2P (35kA AIC)
Cutler Hammer CSH2200N - Molded Case Breaker 200A 2P (35kA AIC)

Cutler Hammer CSH2200N - Molded Case Breaker 200A 2P (35kA AIC)

Cutler Hammer
Price
Save $703.76
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

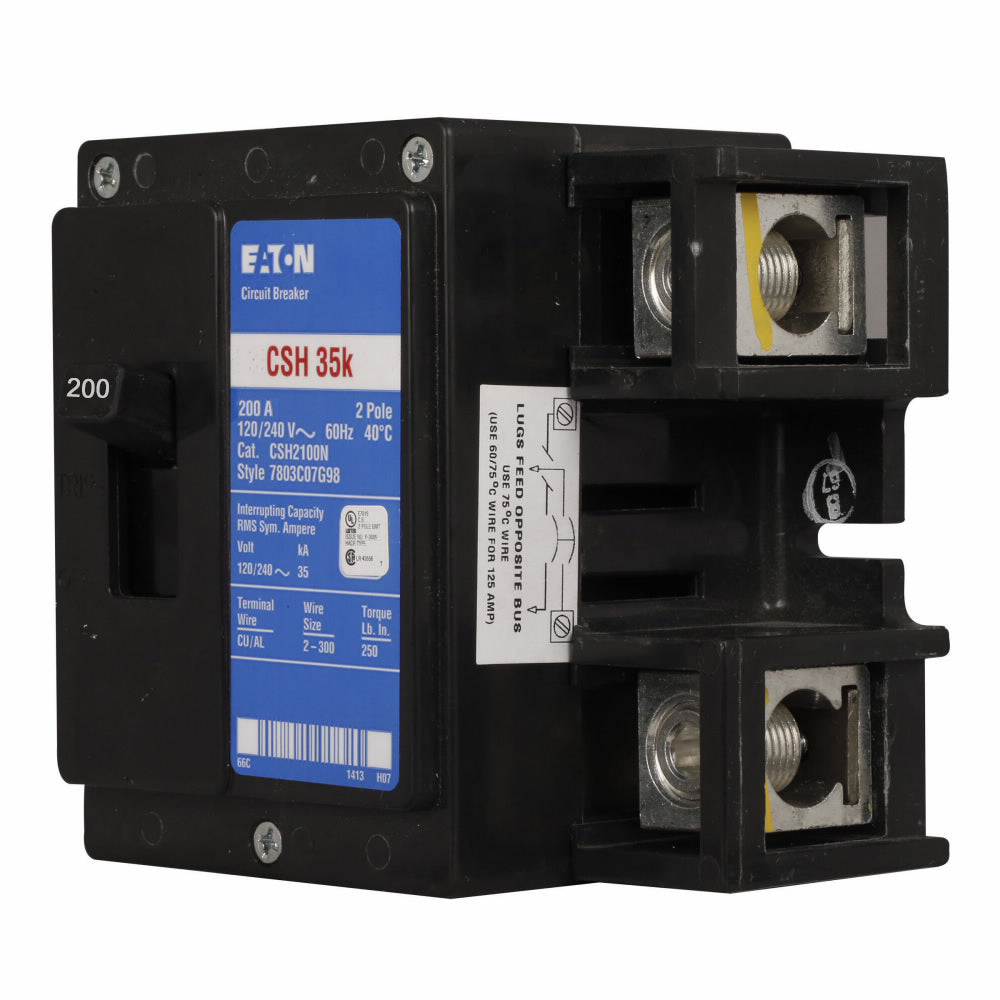

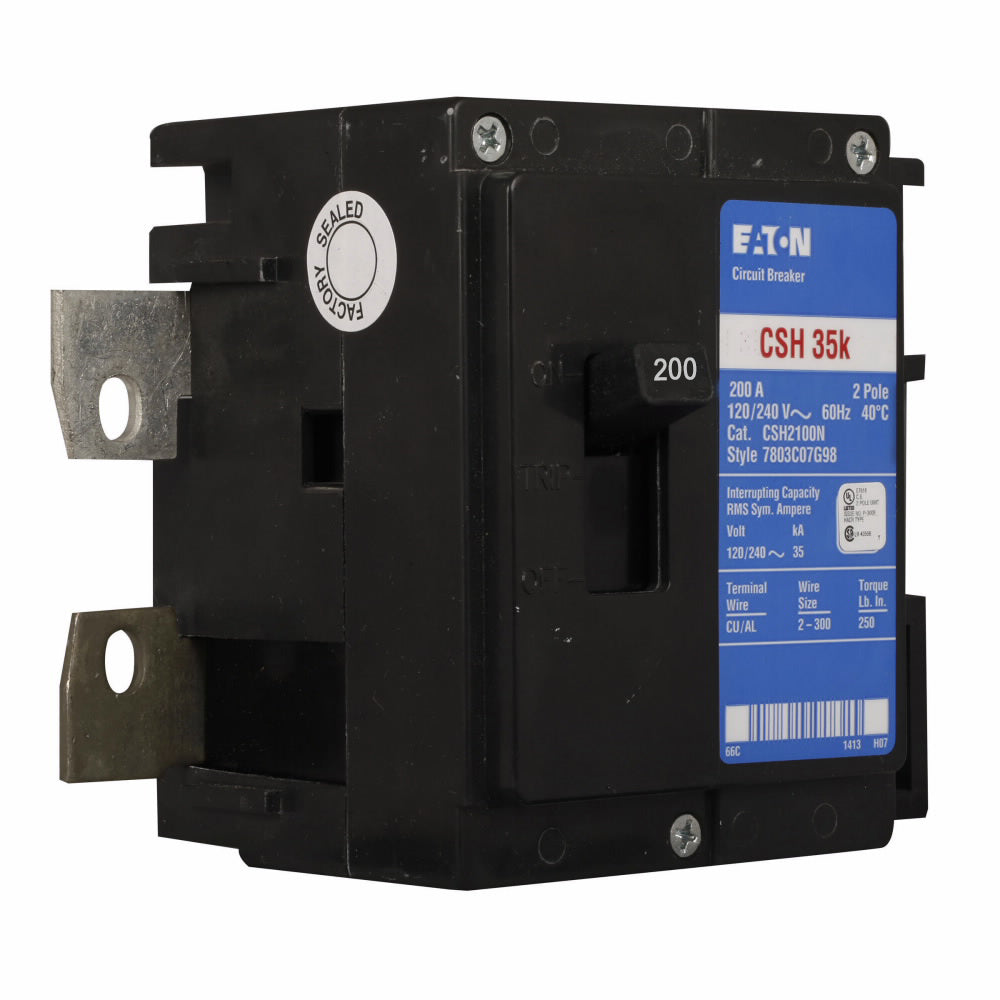

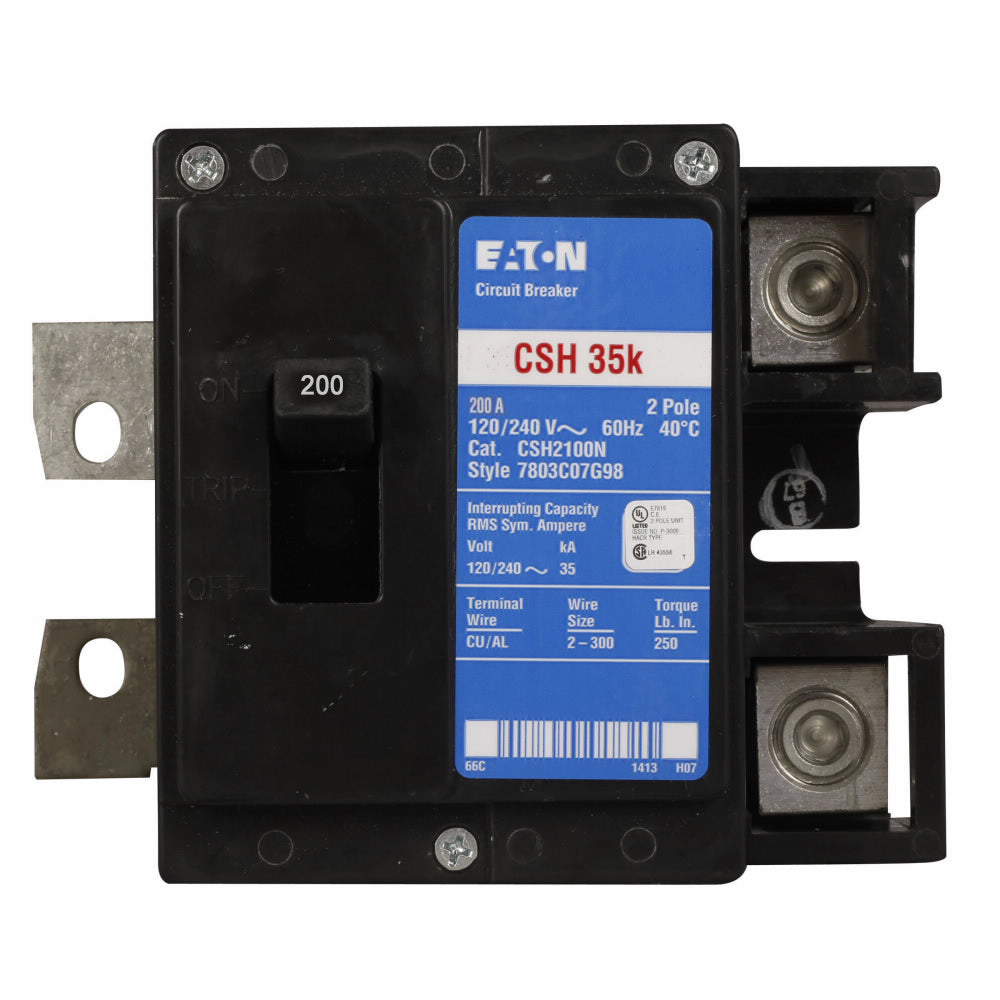

Cutler Hammer CSH2200N is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 200A current rating and a 240V AC voltage rating, housed in a compact plug-in configuration measuring 6.5" x 5" x 5" and weighing 2.8 lb. This thermal magnetic breaker is UL Listed and offers a 35kA interrupting capacity at 240V, ensuring compliance with critical safety standards. Its design supports typical applications in panelboards and switchboards, protecting conductors from size AWG 2 to 300 kcmil for both copper and aluminum.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 6.5 in (Depth) x 5 in (Height) x 5 in (Width)
  • Standards: UL Listed
  • Applications: Industrial and Commercial Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 200A
  • AIC Rating: 35kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: AWG 2 to 300 kcmil, Copper/Aluminum
  • Certification: UL Listed
  • Family: Type CH
  • Country of Origin: Dominican Republic
  • Weight: 2.8 lb


Product Identification
  • UPC: 782113099767
  • GTIN: 00782113099767
