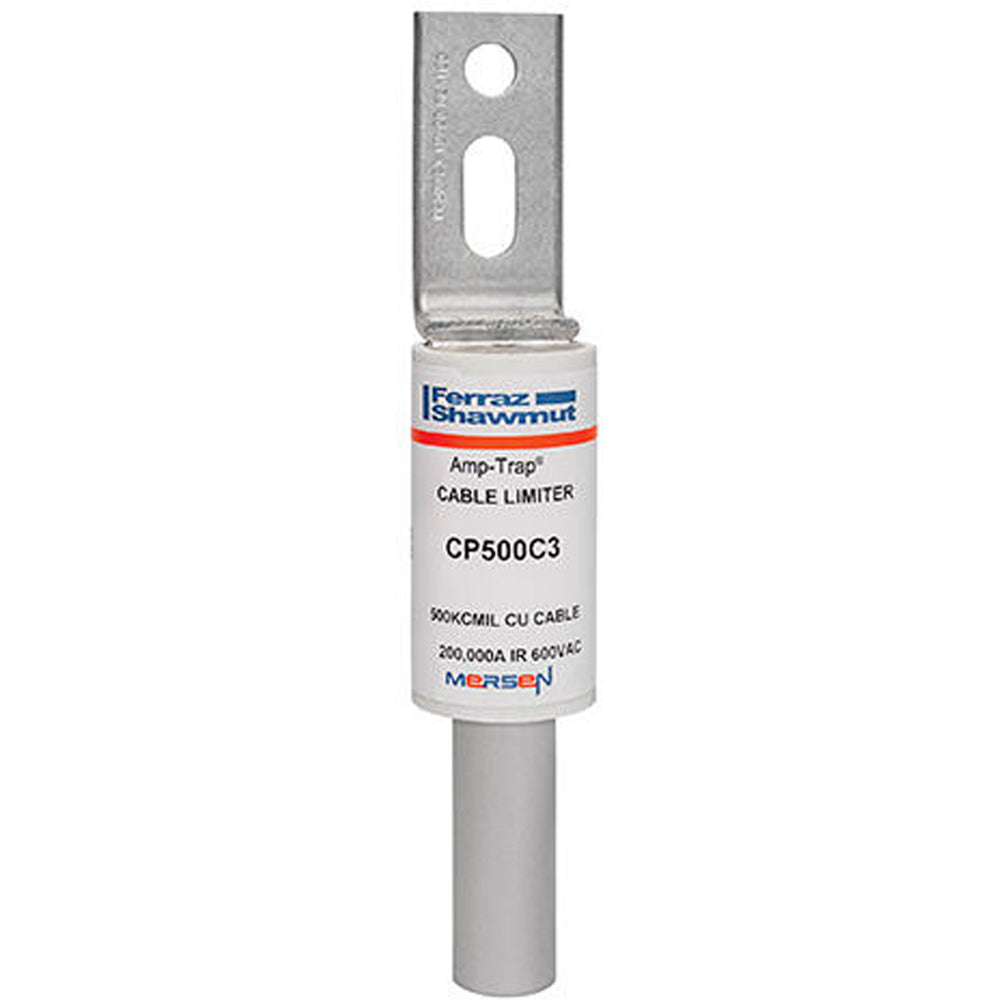

Mersen CP500C3 - Cable Protector Fuse 600V 200kA Interrupting Capacity (UL Listed)

The Mersen CP500C3 is a low-voltage cable protector fuse designed for safeguarding 500 kcmil conductors in industrial power distribution systems. Rated for 600V AC/DC applications with a 200kA interrupting capacity, this UL-listed (File E305297) fuse features a tubular/offset bolt connection and robust construction meeting stringent industry standards. Its 10-inch length and 5 lb weight provide durable protection for high-current circuits in manufacturing plants, data centers, and utility applications where reliable cable protection is critical.

Key Features & Specifications

• Type: CP Class cable protector fuse with tubular construction
• Voltage Rating: 600V AC/DC
• Current Rating: 500 kcmil conductor protection
• Dimensions: 10-inch length
• Standards: UL listed (File E305297)
• Applications: Industrial power distribution, manufacturing plants, data centers
• Class Rating: Cable Protector
• Connection: Tubular/Offset Bolt
• Wire Size: 500 kcmil
• AIC rating: 200kA@600V
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 78200193164
• GTIN: 00782001931643
