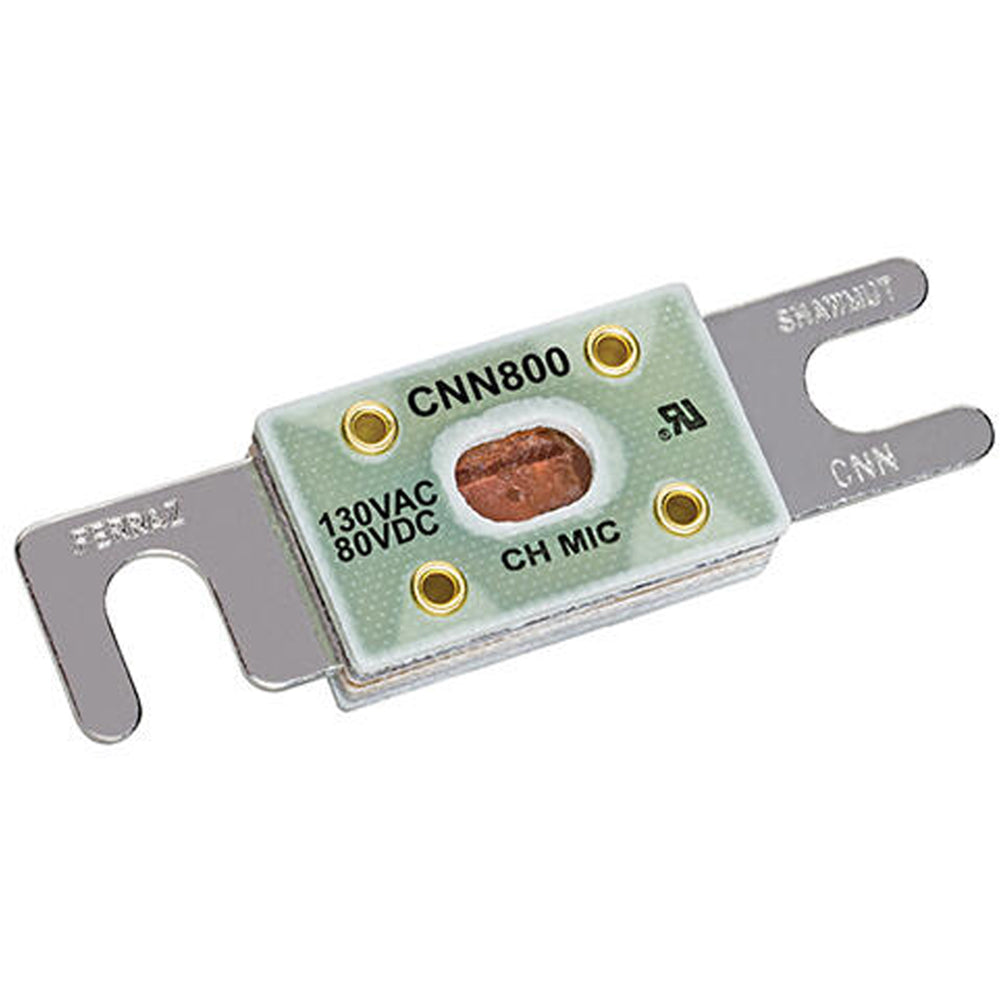

Appleton CNN800 - Class CNN Fuse 800A (2500kA AIC @ 130V AC)

Appleton CNN800 is a Class CNN fuse designed for circuit protection in industrial electrical systems, providing reliable overcurrent protection with a 2500kA interrupting rating at 130V AC. This single-barrel fuse features an 800A current rating and utilizes a forklift connection type for secure installation in rigid/IMC conduit applications. Constructed with durable materials, the unit measures 3/4" x 3-3/16" and weighs 5.19 lb, meeting UL 248-1 standards as a recognized component (File E60314 JFHR2). Typical applications include industrial power distribution systems where high fault current interruption is required.

Key Features & Specifications

• Type: Class CNN fuse, single barrel design
• Voltage Rating: 130V AC
• Current Rating: 800A
• Dimensions: 3/4" x 3-3/16"
• Weight: 5.19 lb
• Standards: UL Recognized Component To Standard 248-1, File E60314 JFHR2
• Applications: Industrial power distribution systems
• AIC Rating: 2500kA@130Vac
• Connection: Forklift
• Barrels: 1
• Certification: UL Recognized Component
• Additional Info: Rigid/IMC conduit accessory

Product Identification

• UPC: 687855949076
