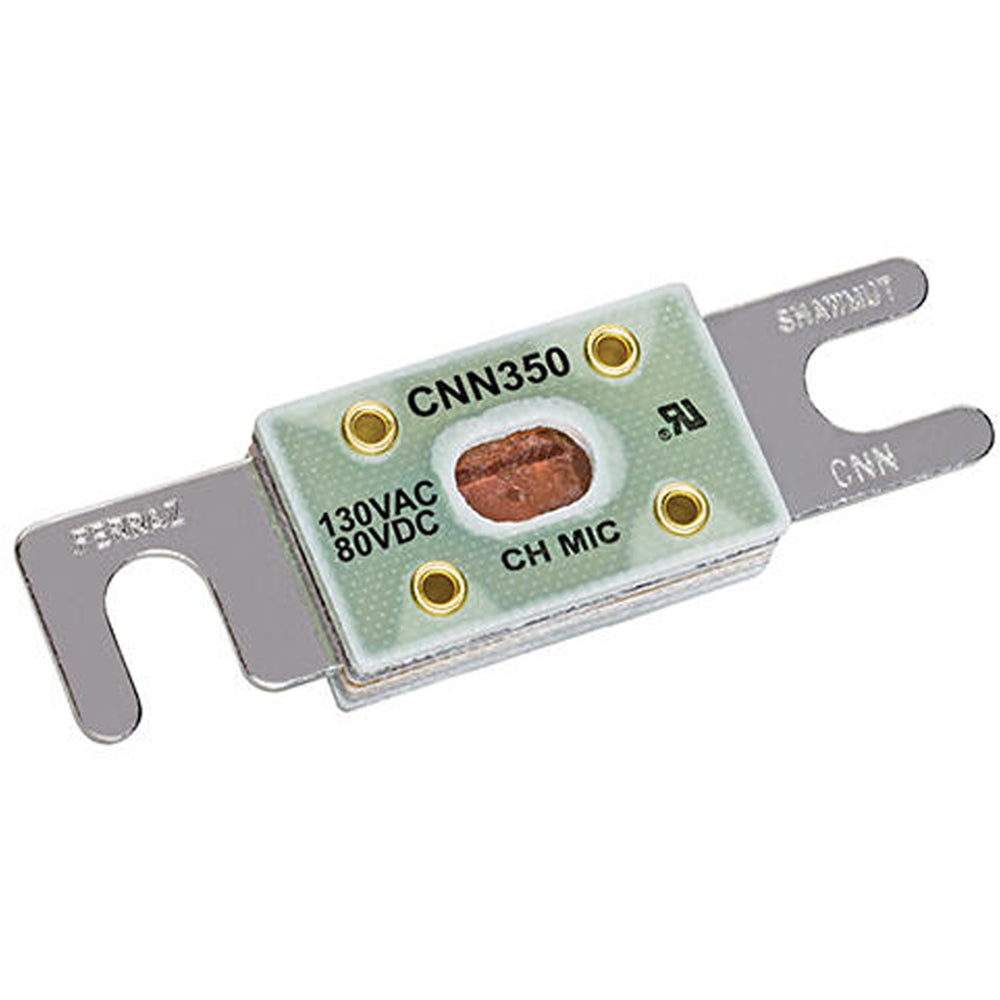

Littelfuse CNN350 - Low Voltage Fuse 350A@130V (2500kA AIC Rating)

Littelfuse CNN350 is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 350A current rating and 130V voltage rating with a compact 3/4" x 3-3/16" forklift connection design. The UL-recognized component meets standard 248-1 with a 2500kA@130Vac interrupting rating, constructed as a single-barrel fuse weighing 0.1 lb. Its current-limiting characteristics make it suitable for protecting electrical distribution systems, industrial controls, and power conversion equipment where high fault currents may occur.

Key Features & Specifications

• Type: CNN series current-limiting low-voltage fuse
• Voltage Rating: 130V AC
• Current Rating: 350A
• Dimensions: 3/4" x 3-3/16" x [depth not specified]
• Weight: 0.1 lb
• Connection: Forklift terminal
• Barrels: 1
• Certification: UL Recognized Component To Standard 248-1, File E60314 JFHR2
• AIC rating: 2500kA@130Vac
• Country of Origin: China

Product Identification

• UPC: 079458009088
