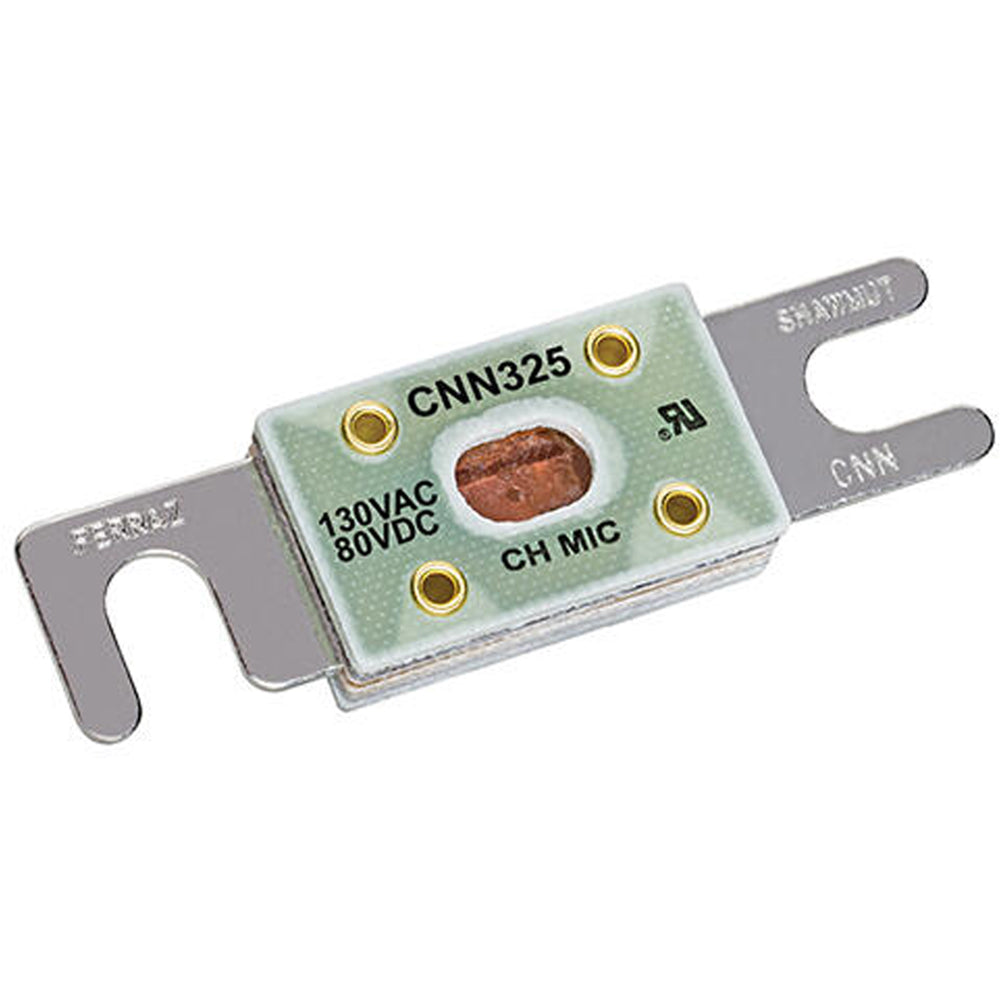

Littelfuse CNN325 - Low Voltage Fuse 325A (2500kA AIC @130V)

The Littelfuse CNN325 is a low-voltage current-limiting fuse designed for industrial circuit protection applications requiring high interrupting capacity. It features a 325A current rating with a 130V AC voltage rating and provides 2500kA interrupting capacity at rated voltage. The fuse measures 3/4" x 3-3/16" with a single barrel construction and forklift connection terminals, weighing 5.19 lb for robust industrial use. It carries UL recognition as a component to standard 248-1 under file E60314 JFHR2, ensuring compliance with North American safety requirements. Typical applications include protection of industrial control circuits, power distribution systems, and heavy equipment where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: CNN series current-limiting low voltage fuse with single barrel construction
• Voltage Rating: 130V AC
• Current Rating: 325A
• Dimensions: 3/4" x 3-3/16"
• Standards: UL Recognized Component to Standard 248-1, File E60314 JFHR2
• Applications: Industrial control circuits, power distribution systems, heavy equipment protection
• AIC rating: 2500kA@130Vac
• Connection: Forklift
• Barrels: 1
• Weight: 5.19 lb
• Family: CNN
• Country of Origin: China

Product Identification

• UPC: 079458009071
