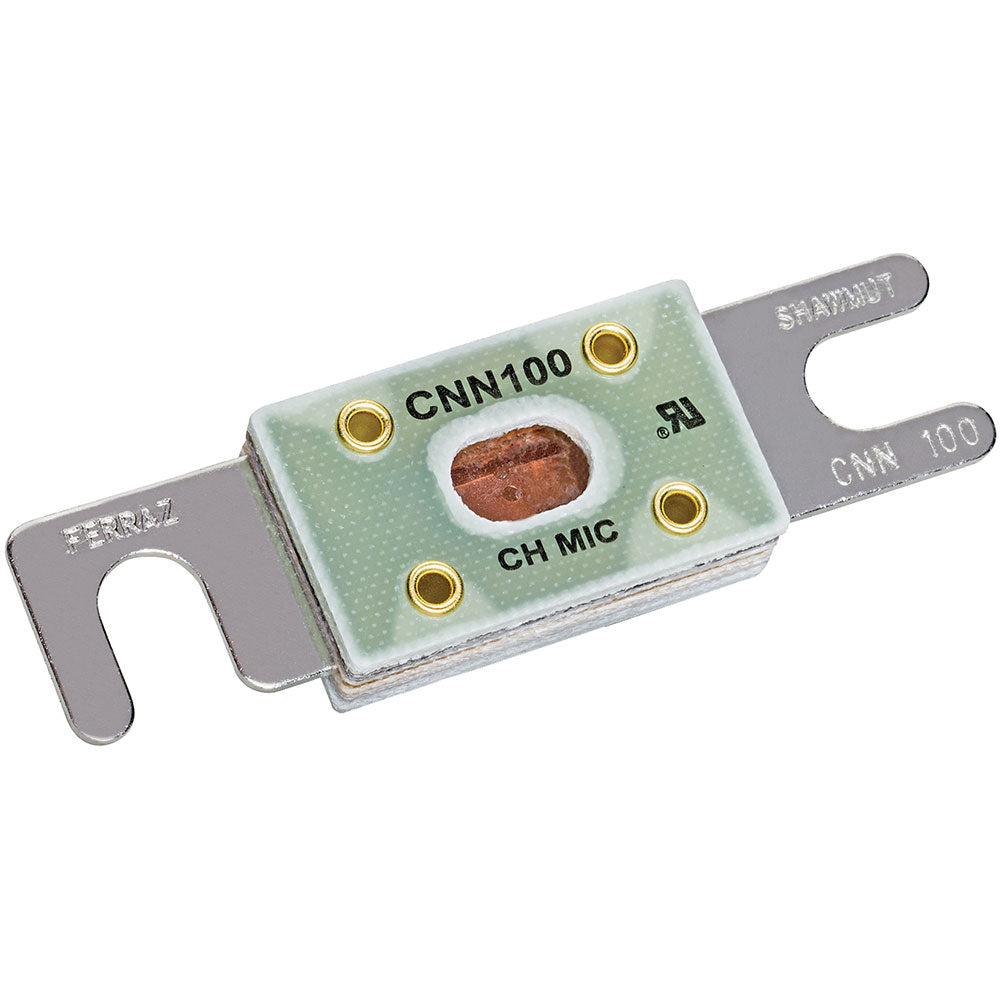

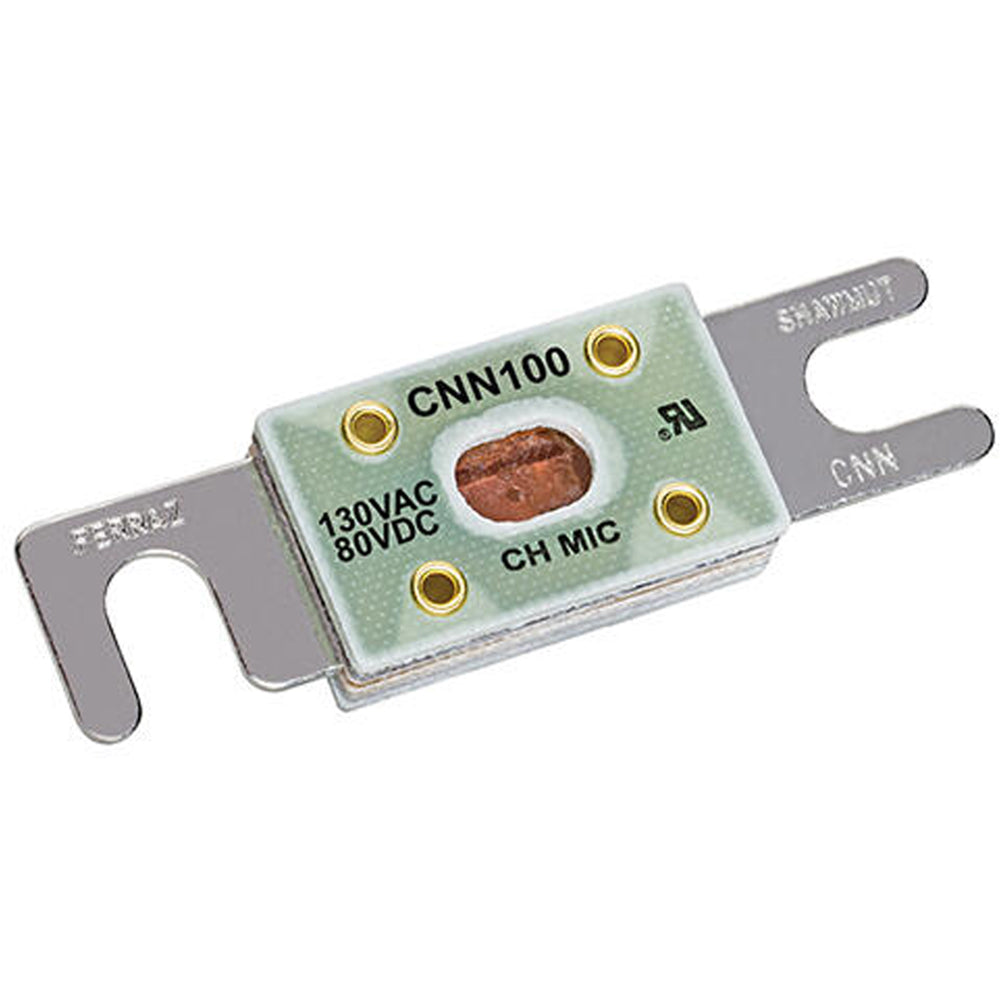

Appleton CNN100 - Cartridge Fuse 100A (130V AC/80V DC)

Mersen
Price
Save $908.20
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Appleton CNN100 is a cartridge fuse designed for high-current circuit protection in industrial applications, featuring a 100A current rating and dual voltage ratings of 130V AC or 80V DC. Its compact, single-barrel construction measures 0.94 inches in diameter by 0.59 inches in length and utilizes a forklift-style connection for secure installation. The fuse is UL Recognized as a component to standard 248-1 (File E60314 JFHR2) and offers an interrupting rating of 2500kA at 130V AC for reliable fault protection. It is typically employed in demanding environments such as power distribution systems, industrial controls, and heavy machinery.

Key Features & Specifications
  • Type: Cartridge fuse, single barrel, CNN family
  • Voltage Rating: 130V AC / 80V DC
  • Current Rating: 100A
  • Dimensions: 0.94 in Dia x 0.59 in L
  • Weight: 0.06 lb
  • Standards: UL Recognized Component to Standard 248-1, File E60314 JFHR2
  • AIC Rating: 2500kA @ 130V AC
  • Connection: Forklift
  • Barrels: 1
  • Country of Origin: China


Product Identification
  • UPC: 782001790448
  • GTIN: 00079458008982
