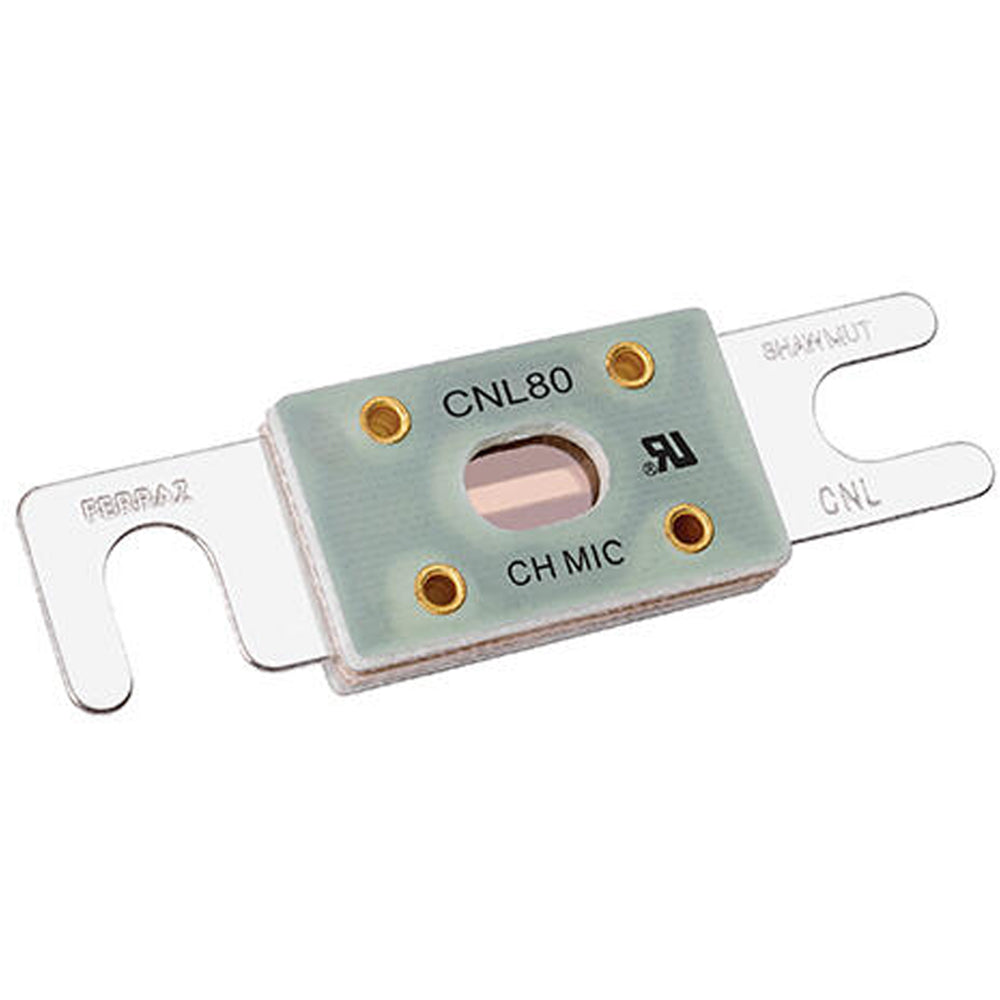

Mersen CNL80 - Low Voltage Fuse 80A (2500kA AIC @80V)

Mersen CNL80 is a low-voltage fuse designed for circuit protection in industrial power distribution systems. This 80V-rated fuse handles 80A continuous current with a 2500kA interrupting capacity at 80V AC/DC, featuring a compact 3/4" x 3-3/16" forklift connection design with single-barrel construction. UL Recognized to Standard 248-1 (File E60314 JFHR2), it provides reliable protection for material handling equipment, DC power systems, and industrial battery charging applications where high fault current interruption is critical.

Key Features & Specifications

• Type: CNL series low-voltage cartridge fuse with silver element
• Voltage Rating: 80V AC/DC
• Current Rating: 80A
• Dimensions: 3/4" x 3-3/16"
• Standards: UL 248-1 (File E60314 JFHR2)
• Applications: Industrial battery chargers, DC power systems, material handling
• AIC rating: 2500kA@80Vac/dc
• Connection: Forklift terminal
• Barrels: 1
• Certification: UL Recognized Component

Product Identification

• UPC: 78200179065
• GTIN: 00782001790653
