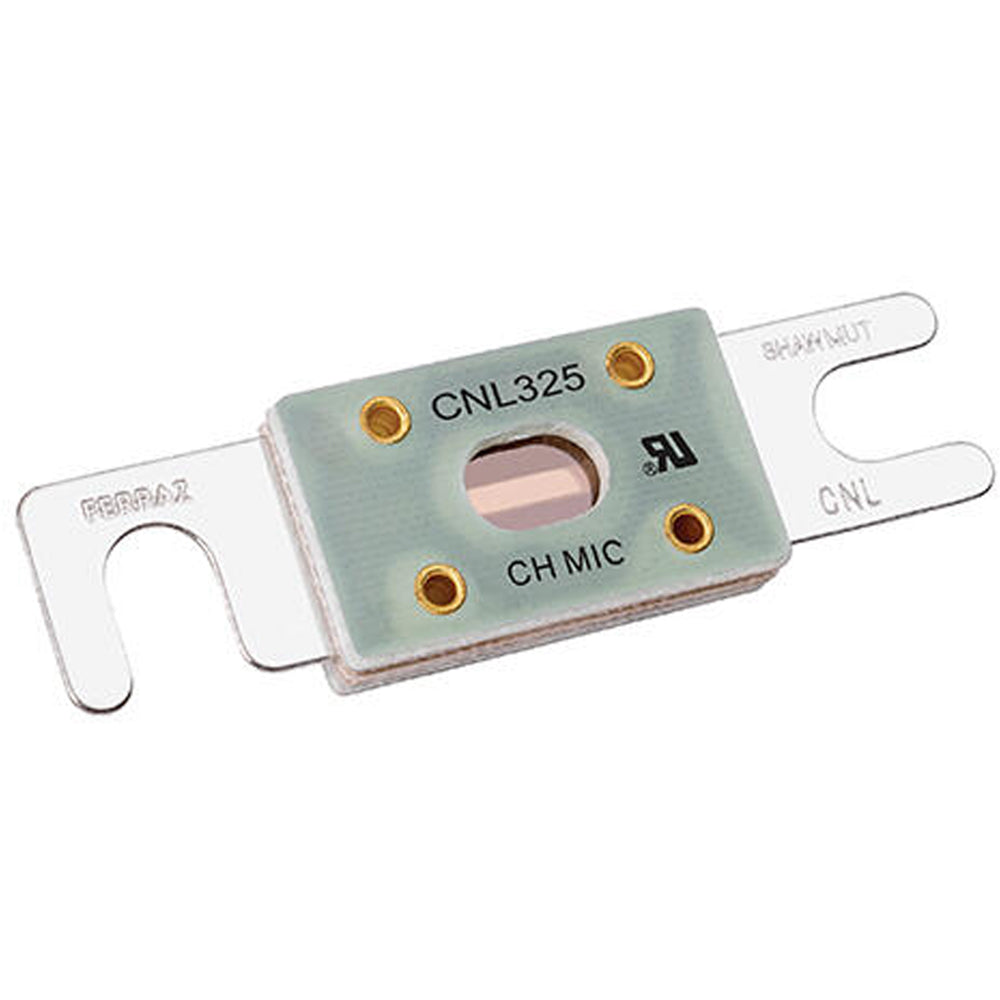

Littelfuse CNL325 - Low Voltage Fuse 325A@80V (2500kA AIC)

Littelfuse CNL325 is a low voltage fuse from the CNL Series designed for high-current circuit protection in industrial applications. It features an 80V AC/DC voltage rating with a 325A current rating and a 2500kA interrupting capacity, housed in a compact 3/4" x 3-3/16" forklift-connection barrel design weighing 2 lb. UL Recognized to Standard 248-1 (File E60314 JFHR2), this fuse provides reliable protection for power distribution systems, motor circuits, and heavy equipment requiring robust short-circuit interruption.

Key Features & Specifications

• Type: CNL Series low voltage fuse with single-barrel forklift connection
• Voltage Rating: 80V AC/DC
• Current Rating: 325A
• Dimensions: 3/4" x 3-3/16"
• Weight: 2 lb
• Standards: UL 248-1 (File E60314 JFHR2)
• AIC rating: 2500kA@80Vac/dc
• Connection: Forklift
• Barrels: 1
• Certification: UL Recognized Component

Product Identification

• UPC: 782001790769
