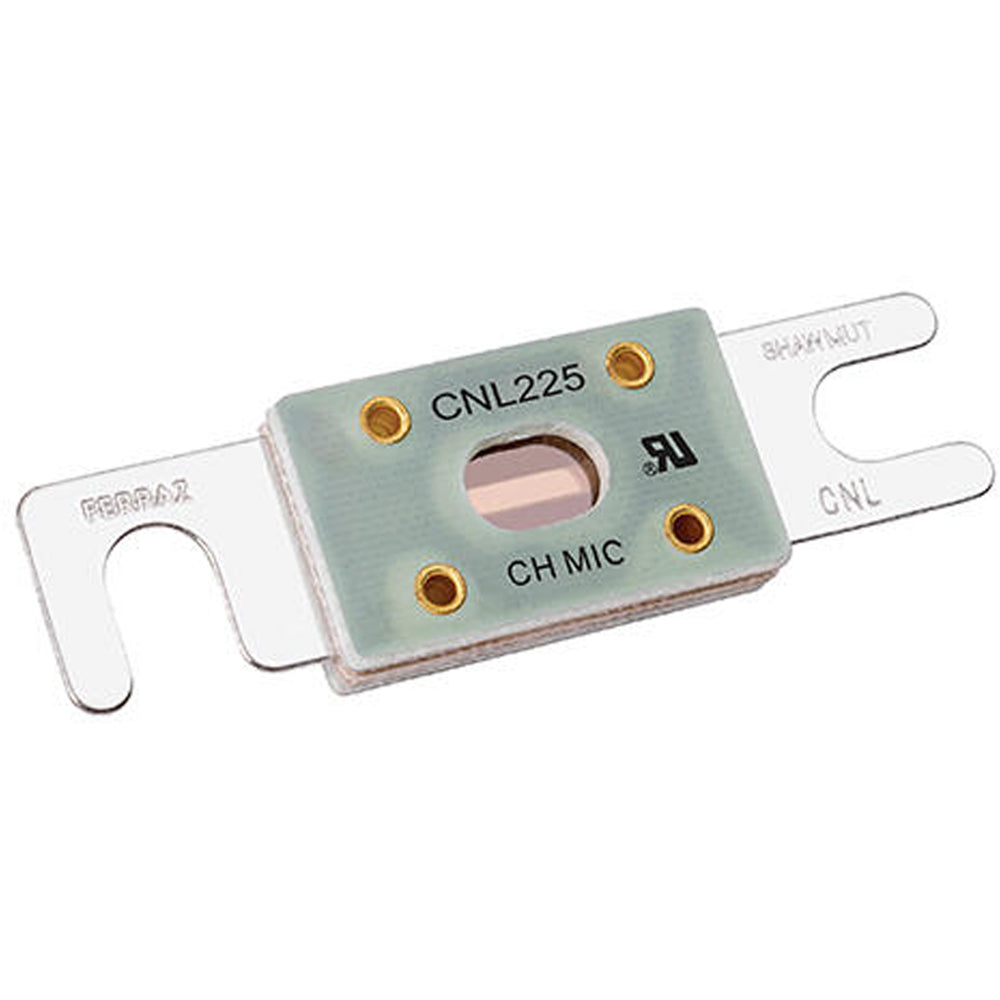

Littelfuse CNL225 - Low Voltage Fuse 225A (2500kA AIC @ 80V AC/DC)

Littelfuse CNL225 is a low-voltage fuse designed for high-current circuit protection in industrial applications. It features an 80V AC/DC voltage rating with a 225A current rating and 2500kA interrupting capacity, housed in a compact 3/4" x 3-3/16" forklift-connectable barrel construction. UL Recognized to Standard 248-1 (File E60314 JFHR2), this CNL Series fuse provides reliable protection for power distribution systems, motor circuits, and heavy equipment requiring robust short-circuit interruption.

Key Features & Specifications

• Type: CNL Series low-voltage current-limiting fuse
• Voltage Rating: 80V AC/DC
• Current Rating: 225A
• Dimensions: 3/4" x 3-3/16"
• Weight: 2 lb
• Connection: Forklift terminal
• Barrels: 1
• Certification: UL 248-1 (File E60314 JFHR2)
• AIC rating: 2500kA @ 80V AC/DC
• Standards: UL Recognized Component
• Applications: Industrial power distribution, motor protection, heavy equipment circuits

Product Identification

• UPC: 782001790721
