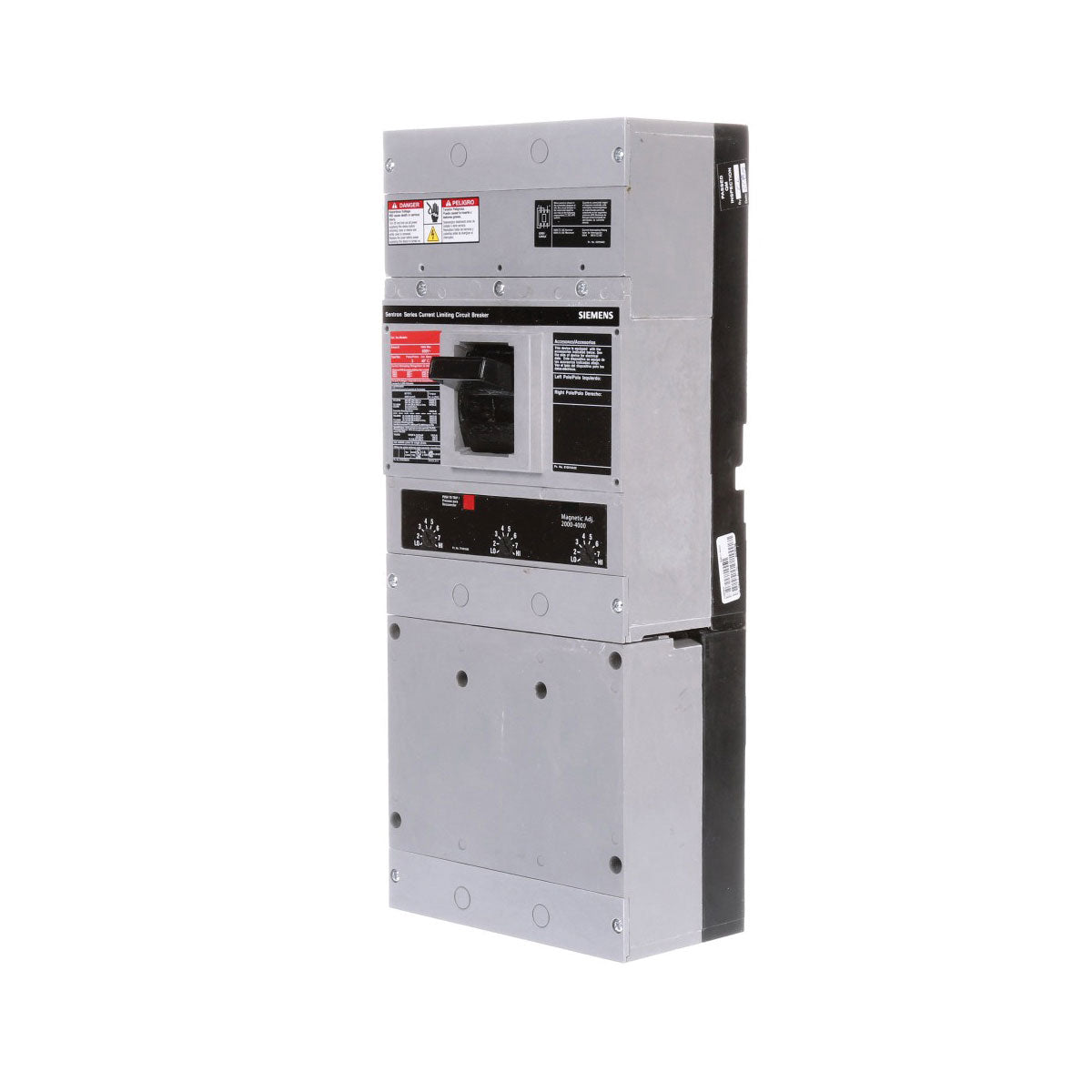

Siemens CJD63L400 - Molded Case Breaker 400A 3P (150kA AIC)
Siemens CJD63L400 - Molded Case Breaker 400A 3P (150kA AIC)

Siemens CJD63L400 - Molded Case Breaker 400A 3P (150kA AIC)

Siemens
Price
Save $11,040.43
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens CJD63L400 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection against short-circuit faults in three-phase industrial power distribution systems. It features a 400A current rating and a 600V voltage rating, housed within a robust JD frame with a bolt-on connection for secure installation. This breaker is constructed for demanding applications, supporting copper conductors from AWG 3/0 to 500 KCMIL and aluminum from AWG 4/0 to 500 KCMIL, and is compliant with relevant industry standards. Its 150kA interrupting capacity at 480V makes it suitable for protecting feeders and branch circuits in commercial and industrial panels, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection (Instantaneous Trip)
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Frame Size: JD Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 150kA at 480V
  • Phase: 3
  • Wire Size: AWG 3/0 to 500 KCMIL (Copper), AWG 4/0 to 500 KCMIL (Aluminum)
  • Weight: 33.001 lb
  • Standards: Designed to meet applicable UL and IEC standards
  • Applications: Industrial power distribution, panelboards, switchboards, motor control centers
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643213661
  • GTIN: 00783643213661
