Siemens CJD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens CJD63B200 - Molded Case Circuit Breaker 200A 600V 3P

Siemens CJD63B200 - Molded Case Circuit Breaker 200A 600V 3P

Siemens
Price
Save $12,684.25
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

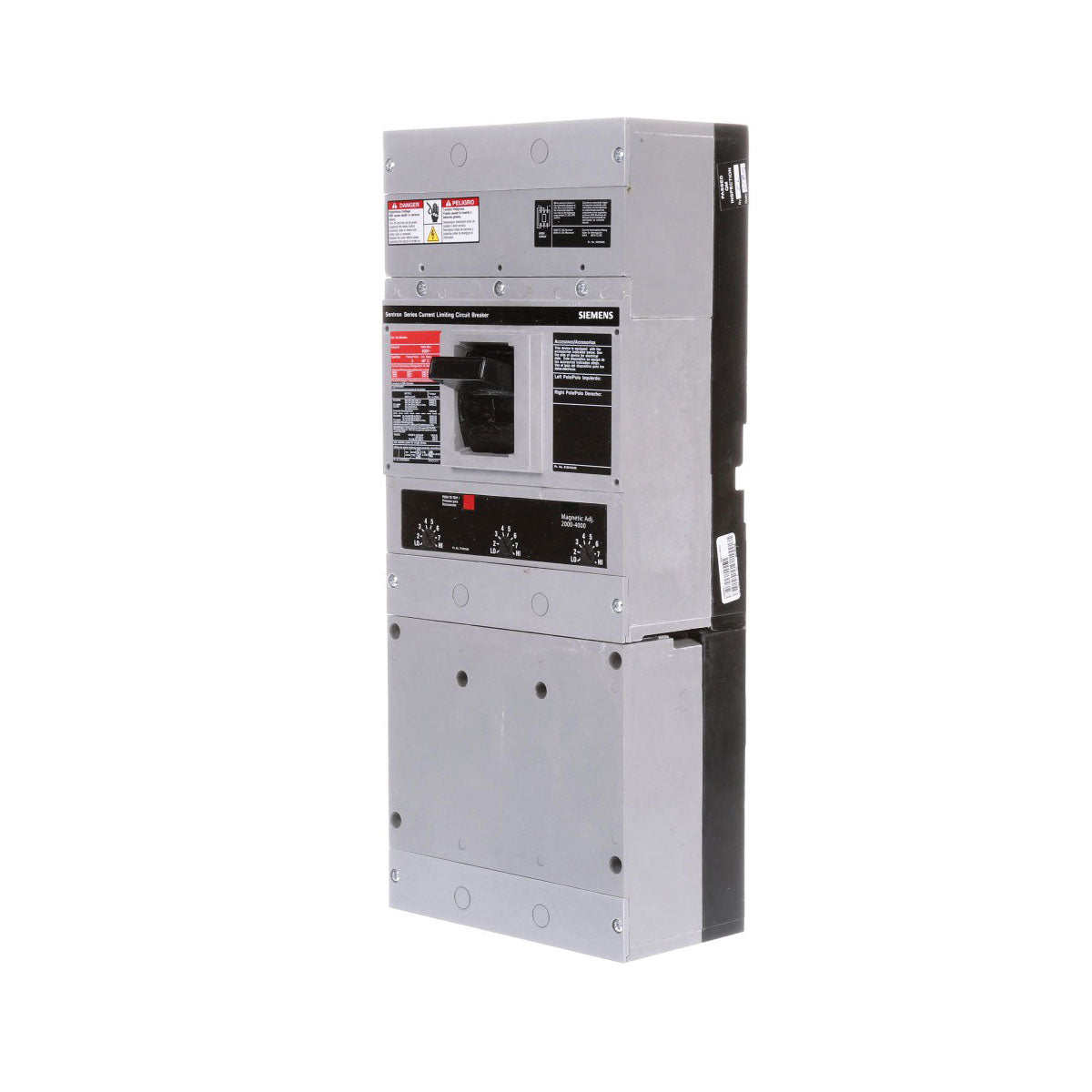

Siemens CJD63B200 is a molded case circuit breaker from the Sentron Series designed to provide reliable overcurrent and short-circuit protection for three-phase industrial power distribution systems. It features a 200A current rating and a 600V AC voltage rating, housed within a robust JD frame with a bolt-on connection for secure installation. This thermal magnetic breaker offers both long-time and instantaneous trip functions, operates within a temperature range of -25 to 70 °C, and is constructed to meet rigorous industry standards. Its 150kA interrupting capacity at 480V makes it suitable for protecting feeders and branch circuits in commercial and industrial panelboards, capable of handling copper conductors from 3/0 AWG to 500 KCMIL or aluminum from 4/0 AWG to 500 KCMIL.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Frame Size: JD Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 150kA at 480V
  • Phase: 3
  • Wire Size: 3/0 AWG-500 KCMIL (Copper), 4/0 AWG-500 KCMIL (Aluminum)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 32.9 lb
  • Standards: Designed to meet applicable industry standards for circuit protection
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643213562
  • GTIN: 00783643213562
