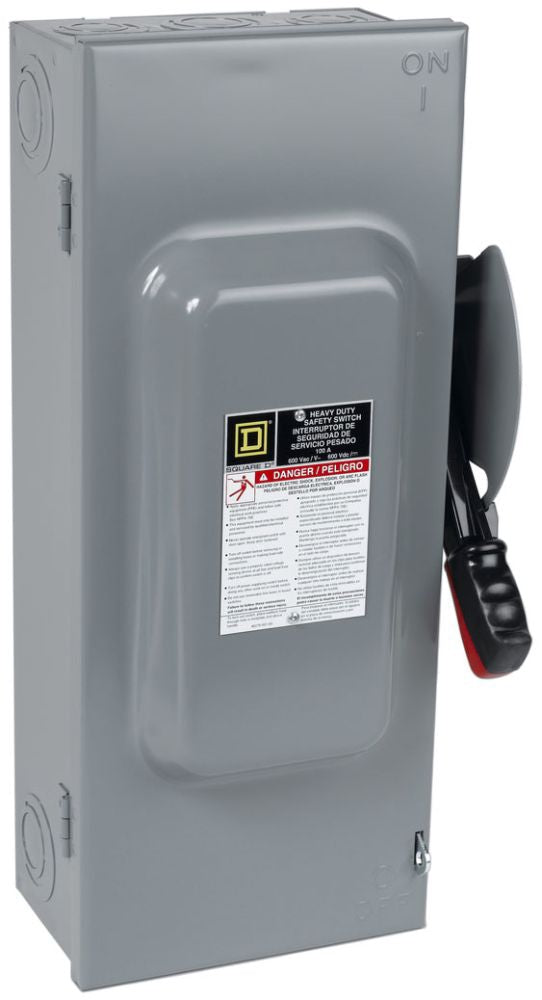

Square D CHU363 - Non-Fusible Disconnect Switch 600V 100A

Square D
Price
Save $7,238.94
/
Title
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D CHU363 is a heavy-duty industrial disconnect switch designed for safely isolating three-phase electrical circuits up to 100A. It provides reliable load break protection with a 600V AC voltage rating and a robust, non-fusible switch mechanism housed in a NEMA Type 1 enclosure for indoor use. The unit features a compact, single-configuration design measuring 539.75 mm H x 260.35 mm W x 162.05 mm D and weighing 16.691 lb, constructed for durability and compatibility with RLF panel frames. Manufactured to stringent industry standards in the United States as part of the Series F family, this disconnect is engineered for integration into motor control centers, industrial machinery, and power distribution panels where a visible means of disconnection is required.

Key Features & Specifications
  • Type: CHU Series, Non-Fusible Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Dimensions: 21.25 in (539.75 mm) H x 10.25 in (260.35 mm) W x 6.38 in (162.05 mm) D
  • Weight: 16.691 lb
  • NEMA Rating: 1
  • Switch Style: Non-Fusible
  • Compatible Frames: RLF
  • Family: Series F
  • Country of Origin: United States


Product Identification
  • UPC: 785901385424
  • GTIN: 00783643232952
