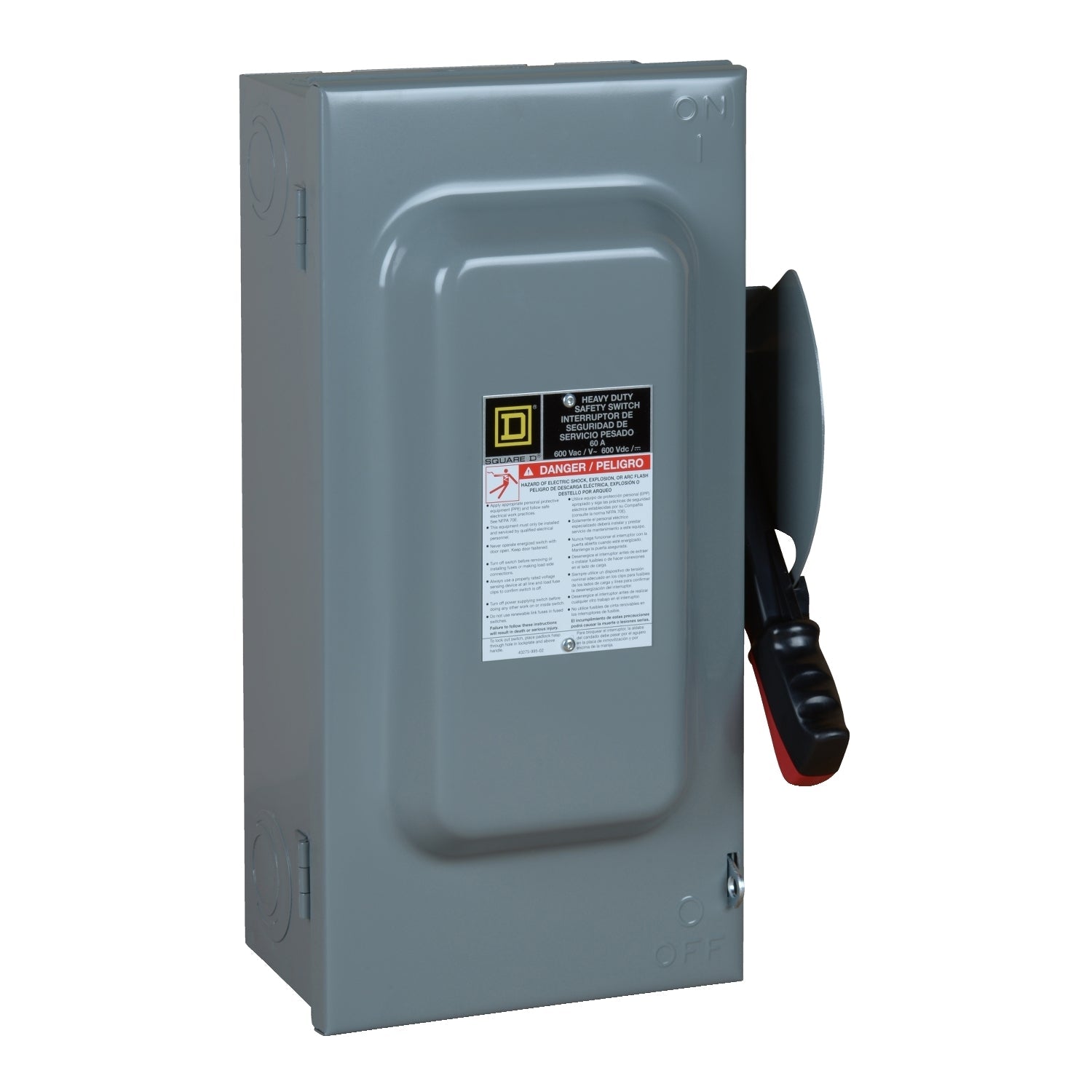

Square D CHU362 - Heavy-Duty Disconnect Switch 600V 60A (3-Pole, RLF Frame Compatible)

Square D CHU362 is a heavy-duty disconnect switch designed for industrial power distribution systems, providing reliable circuit isolation and safety. This 600V-rated switch handles up to 60A current in three-phase configurations, housed in a compact 419.1mm x 112.78mm x 78.49mm (HxWxD) enclosure weighing 6.71 lb. The CHU362 meets rigorous industrial standards with its rugged construction and is compatible with RLF frame systems, making it suitable for motor control centers and power distribution panels.

Key Features & Specifications

• Type: CHU series heavy-duty safety disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 16.5 in (419.10 mm) H x 4.44 in (112.78 mm) W x 3.09 in (78.49 mm) D
• Weight: 6.71 lb
• Configuration: Single
• Poles: 3
• Phase: 3
• Compatible Frames: RLF
• Standards: Industrial-grade compliance
• Applications: Motor control centers, power distribution panels

Product Identification

• UPC: 078590199455
• GTIN: 00785901994558
