Square D CHU361 - Disconnect Switch 30A 600V 3-Pole

Square D
Price
Save $-328
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

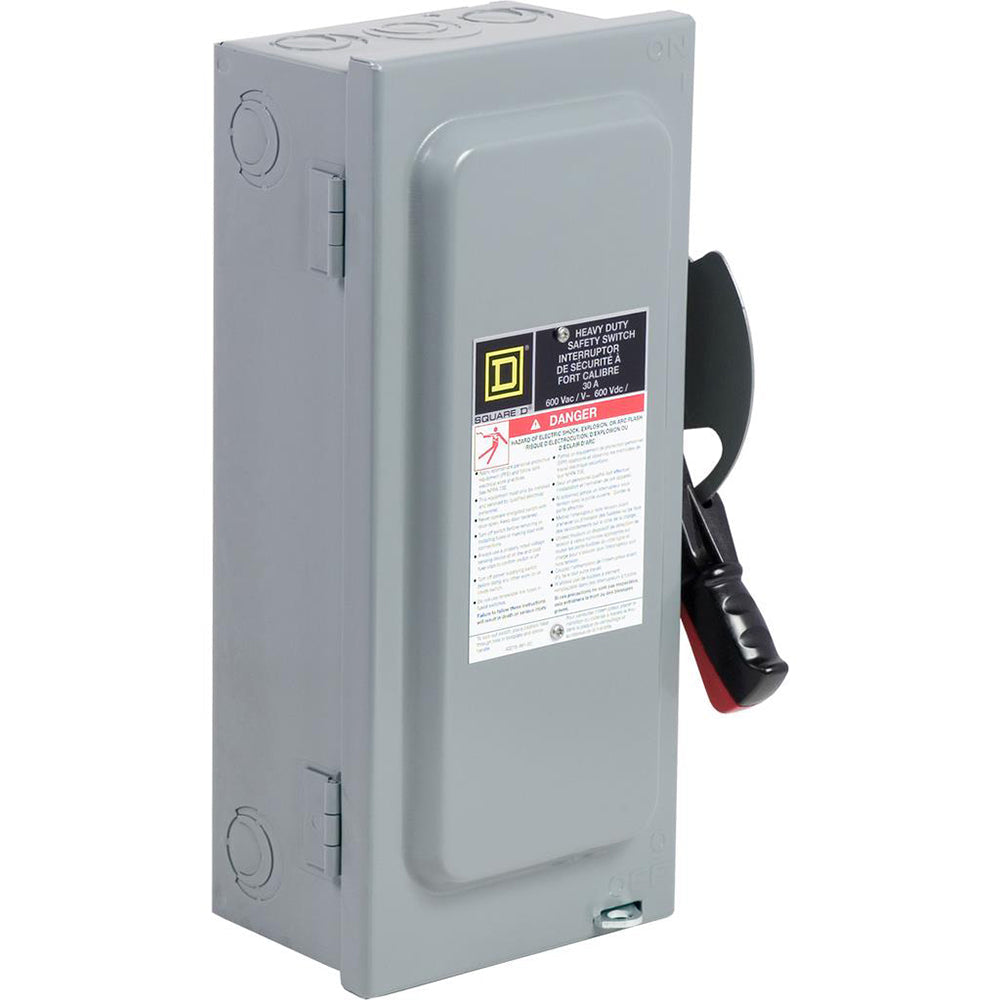

Square D CHU361 is a heavy-duty safety disconnect switch designed for providing visible isolation and protection in industrial power distribution systems. It features a 600V AC voltage rating and a 30A current rating, engineered for three-phase applications with a three-pole, single-configuration design. The unit is constructed with robust materials, measuring 370.84 mm H x 191.77 mm W x 123.70 mm D and weighing 7.769 lb, and is built to comply with rigorous industrial safety standards. This disconnect is compatible with RLF frames and is typically applied in motor control centers, industrial machinery, and panelboards where reliable circuit isolation is required.

Key Features & Specifications
  • Type: CHU Series F, Heavy-Duty Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Dimensions: 14.60 in (370.84 mm) H x 7.55 in (191.77 mm) W x 4.87 in (123.70 mm) D
  • Weight: 7.769 lb
  • Compatible Frames: RLF
  • Standards: Meets applicable industrial safety standards
  • Applications: Motor Control Centers (MCCs), Industrial Machinery, Panelboards


Product Identification
  • UPC: 078590199451
  • GTIN: 00785901994510
