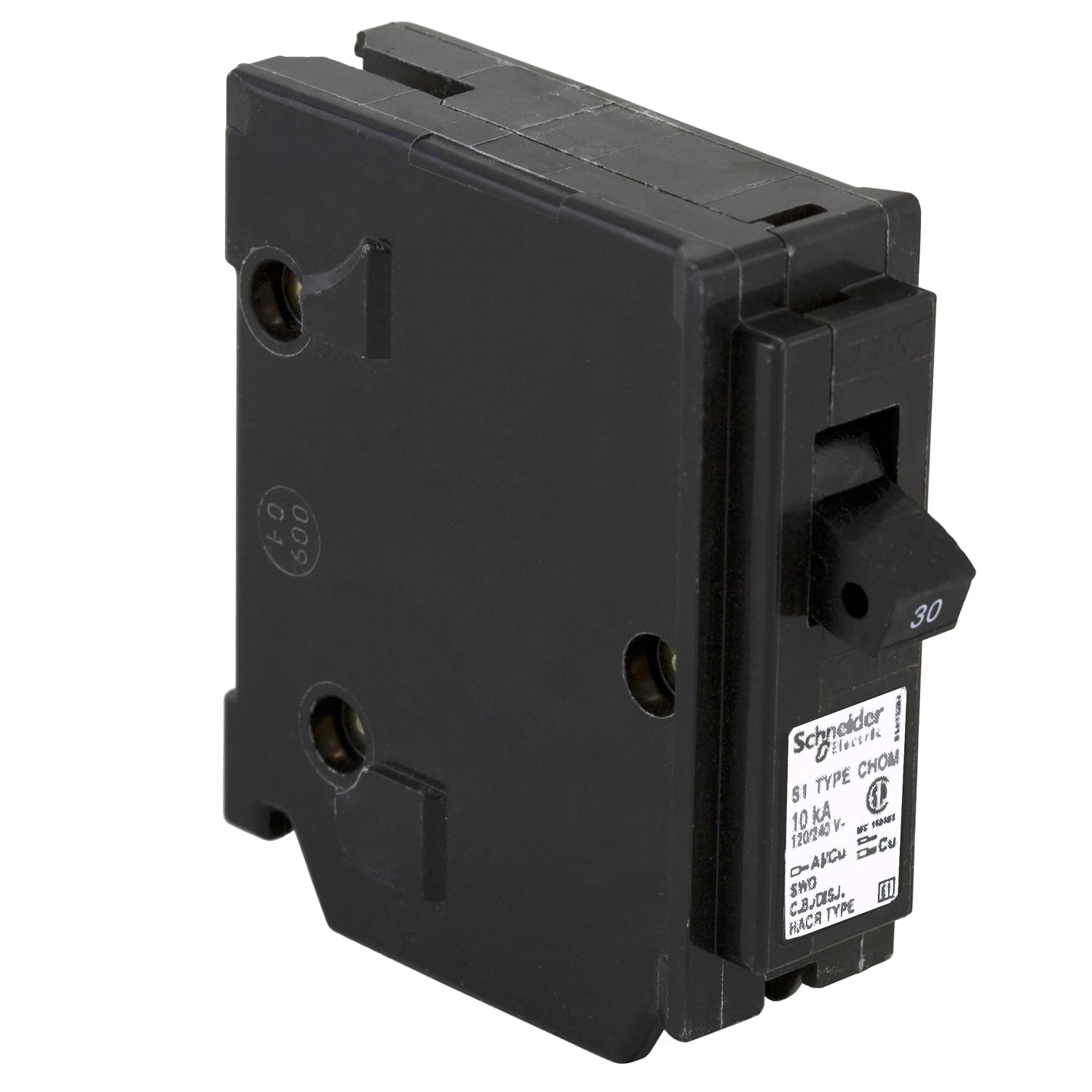

Schneider Electric CHOM130 is a single-pole, plug-in molded case circuit breaker designed for branch circuit protection in residential and light commercial electrical panels. It provides a 30A current rating and 120V voltage rating with thermal-magnetic protection featuring long-time and instantaneous (LI) trip functions for reliable overload and short-circuit protection. The unit features compact dimensions of 78.49 mm depth by 112.78 mm width, a weight of 0.33 lb, and is constructed for use with aluminum or copper wire sizes from AWG 14 to AWG 8. It is CSA certified and rated for operation in ambient temperatures up to 40 °C, with an interrupting capacity of 10kA at 120V in single-phase systems.

Key Features & Specifications
  • Type: HOM (Homeline) Molded Case Circuit Breaker, Plug-In Connection, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Dimensions: 78.49 mm (3.09 in) Depth x 112.78 mm (4.44 in) Width
  • Standards: CSA Certified
  • Applications: Residential and Light Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: 40 °C (104 °F)
  • Phase: 1
  • Amperage: 30A
  • AIC rating: 10kA @ 120V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Wire Size: AWG 14 to AWG 8 (Aluminum/Copper)
  • Certification: CSA
