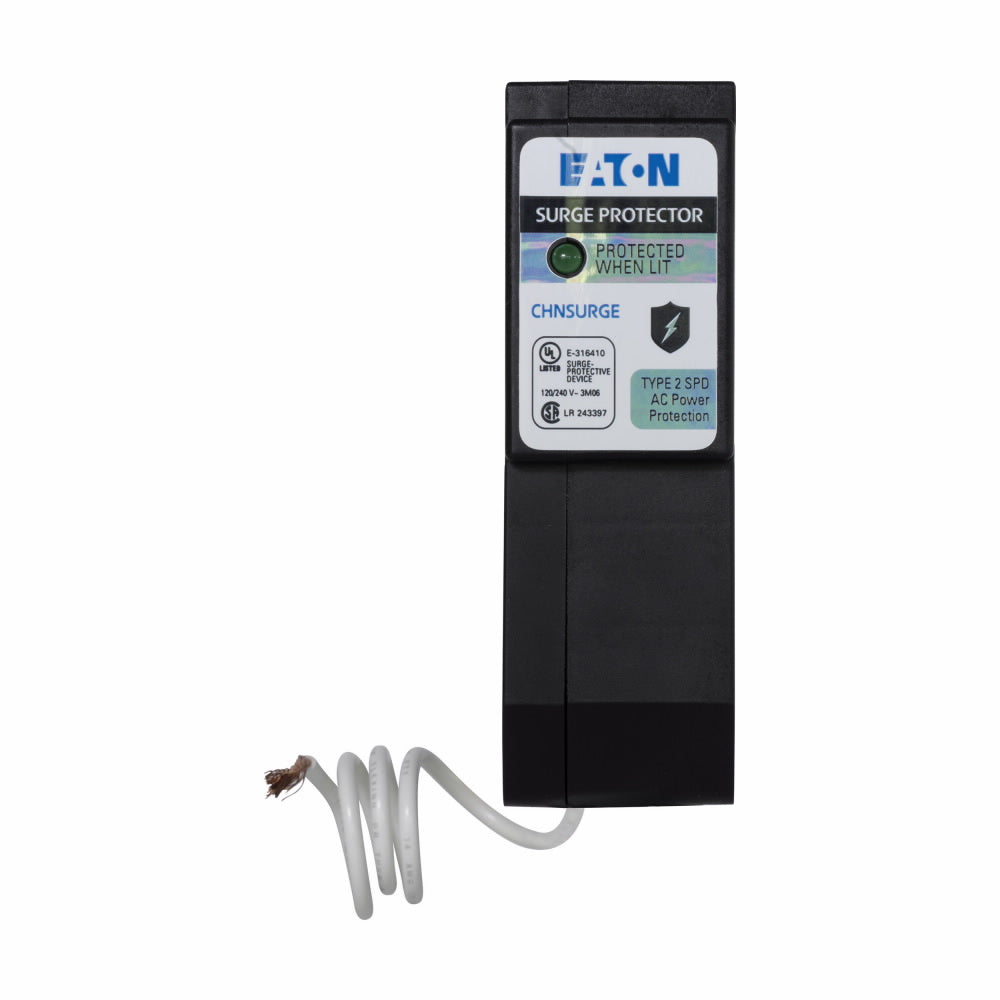

Eaton CHNSURGE - CH Surge Protective Device 600V 18kA
CHNSURGE Eaton Fuse & Protection Surge Protection Devices - Essential Electric Supply
Eaton CHNSURGE - CH Surge Protective Device 600V 18kA

Eaton CHNSURGE - CH Surge Protective Device 600V 18kA

Eaton
Price
Save $-93.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton CHNSURGE is a Type CH surge protective device designed for protecting 120/240V single-phase electrical systems from transient overvoltages. It is rated for 600V and features a 10 kA interrupting rating at 120V, with a nominal discharge current of 3 kA and a surge current capacity of 18 kA per phase. The device measures 3.5 in x 2.4 in x 6.1 in (Length/Depth x Height x Width), weighs 0.45 lb, and utilizes a plug-in connection type for installation. It is certified to cUL and UL 1449 standards, ensuring compliance with industry safety requirements. This unit is suitable for residential and facility applications, offering protection modes for line-to-neutral and line-to-line configurations.

Key Features & Specifications
  • Type: CH Surge Protective Device
  • Voltage Rating: 120/240 VAC single-phase
  • Poles: 2
  • Surge Current Capacity: 18 kA per phase
  • Nominal Discharge Current (In): 3 kA
  • Short-Circuit Current Rating (SCCR): 10 kA at 120V
  • Connection Type: Plug-In
  • Protection Modes: Line-to-Neutral (L-N), Line-to-Line (L-L)
  • Maximum Continuous Operating Voltage (MCOV): 150 V L-N, 300 V L-L
  • Dimensions: 3.5 in x 2.4 in x 6.1 in (Length/Depth x Height x Width)
  • Weight: 0.45 lb
  • Certification: cUL; Certified UL 1449
  • Frequency: 50/60 Hz


Product Identification
  • UPC: 786689353650
  • GTIN: 00786689353650
