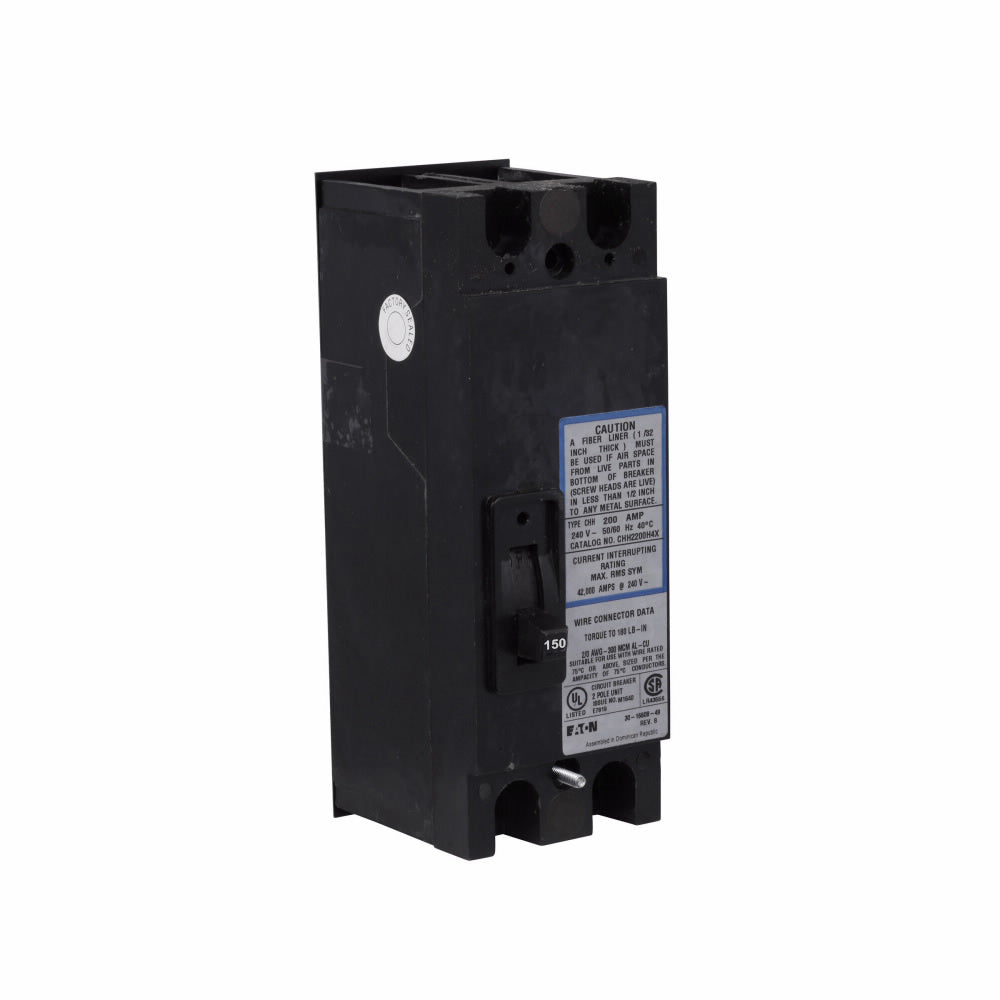

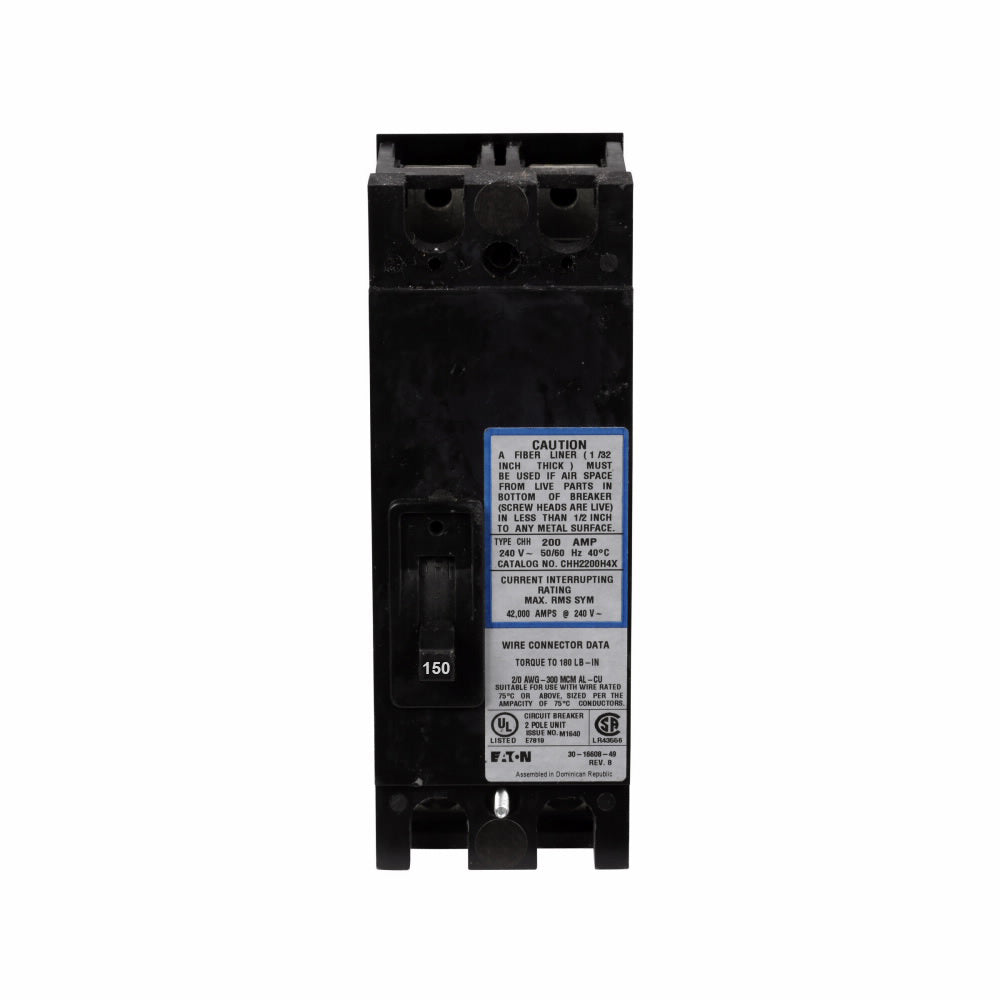

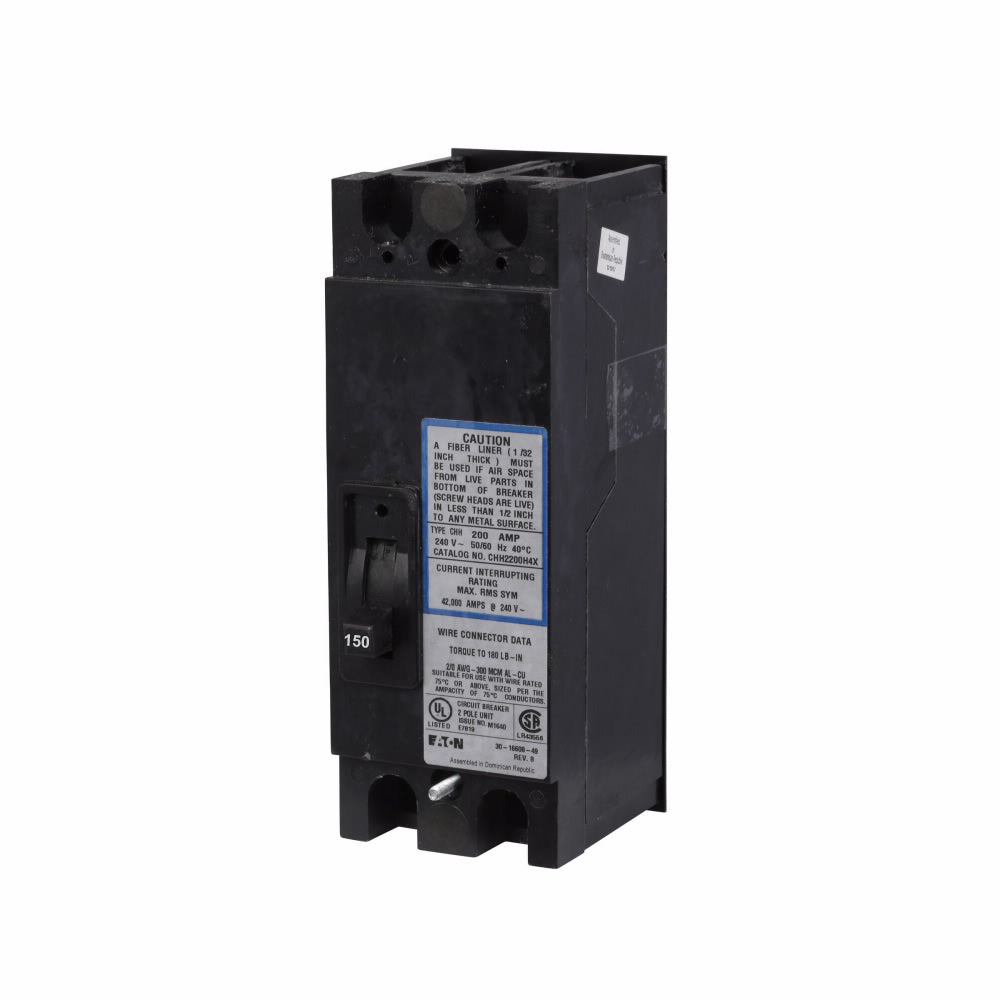

Cutler Hammer CHH2150H4X - Molded Case Breaker 150A 240V 2-Pole
Cutler Hammer CHH2150H4X - Molded Case Breaker 150A 240V 2-Pole
Cutler Hammer CHH2150H4X - Molded Case Breaker 150A 240V 2-Pole
Cutler Hammer CHH2150H4X - Molded Case Breaker 150A 240V 2-Pole
Cutler Hammer CHH2150H4X - Molded Case Breaker 150A 240V 2-Pole
Cutler Hammer CHH2150H4X - Molded Case Breaker 150A 240V 2-Pole

Cutler Hammer CHH2150H4X - Molded Case Breaker 150A 240V 2-Pole

Cutler Hammer
Price
Save $1,512.45
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer CHH2150H4X is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It is rated for 150A at 240V AC in a single-phase configuration, featuring a robust thermal-magnetic trip unit for both long-time and instantaneous protection with an interrupting capacity of 42kA. The breaker is constructed with a compact, bolt-on connection design, measuring 9" x 5.5" x 4.5" (LxHxW) and weighing 4.5 lb, and is built to operate reliably in ambient temperatures from -25°C to 70°C (-13°F to 158°F). This unit is UL-certified, ensuring compliance with industry safety standards for integration into panelboards and switchgear. Its design is suitable for protecting feeders, branch circuits, and equipment in manufacturing facilities, data centers, and commercial buildings.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 150A
  • Dimensions: 9 in x 5.5 in x 4.5 in (Length/Depth x Height x Width)
  • Standards: UL Certified
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Phase: 1
  • AIC Rating: 42kA @ 240V
  • Poles: 2
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Connection: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 4.5 lb
  • Family: CHH Series


Product Identification
  • UPC: 782113032153
  • GTIN: 00782113032153
