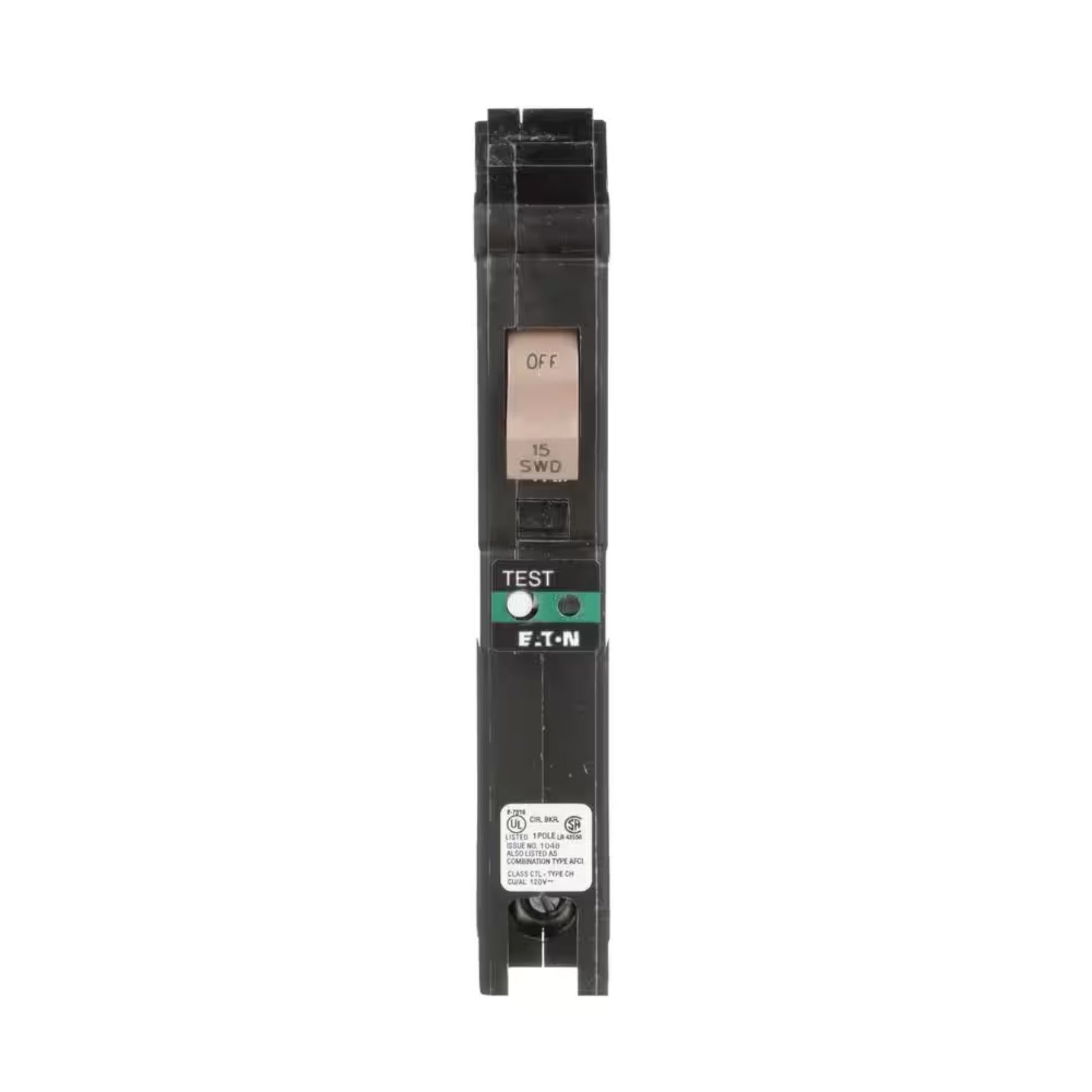

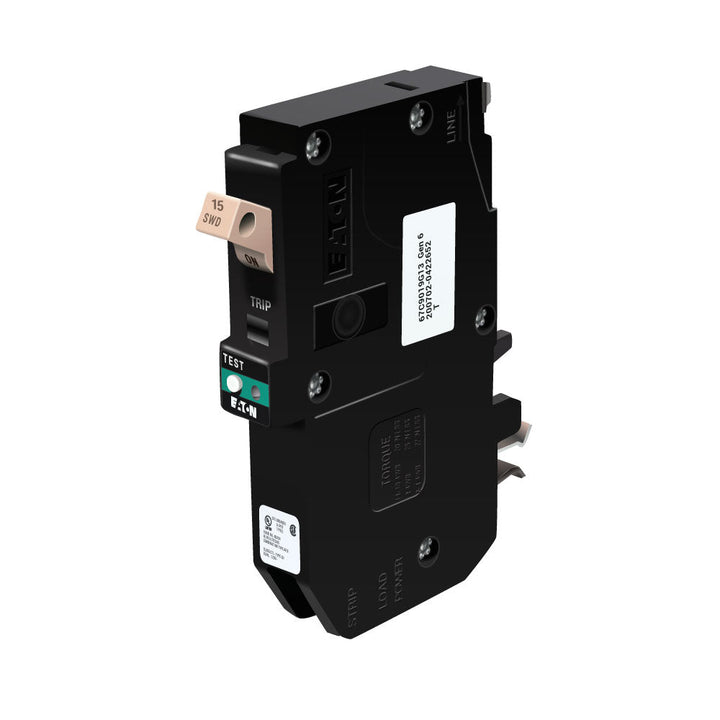

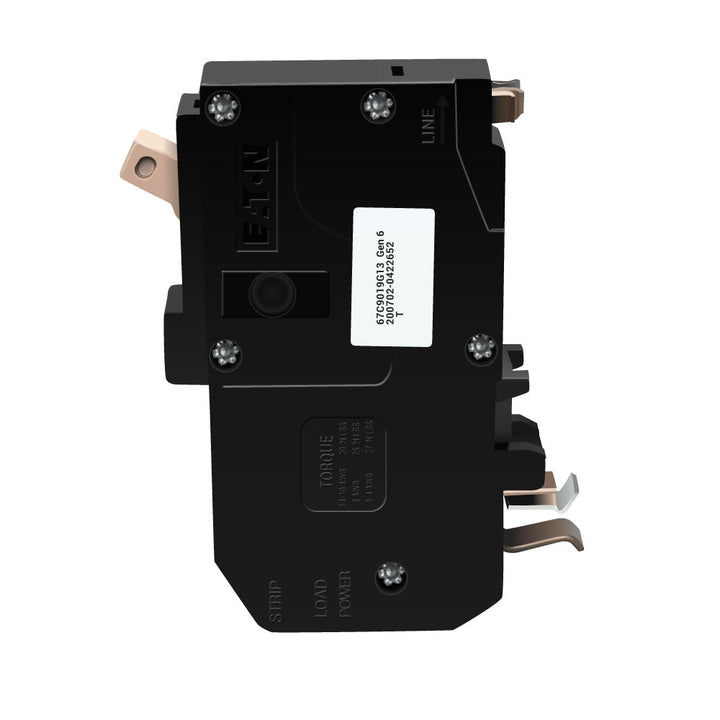

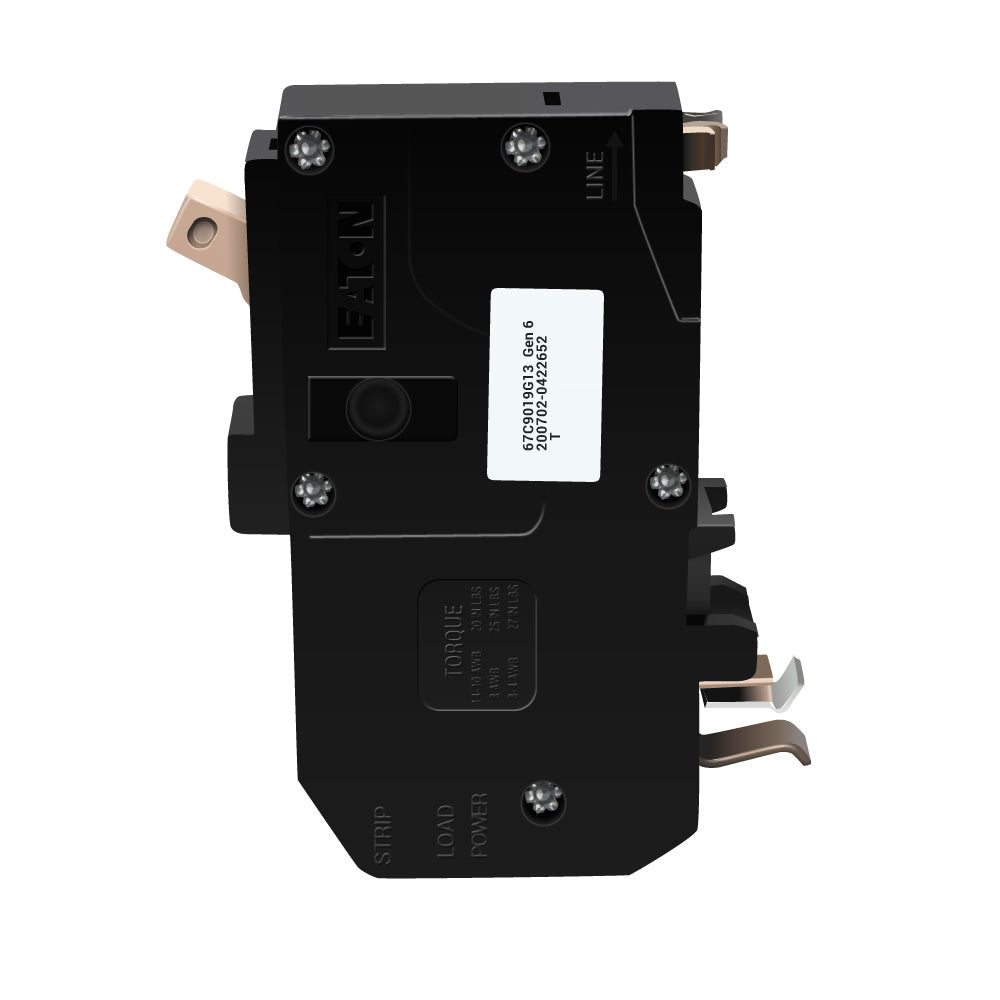

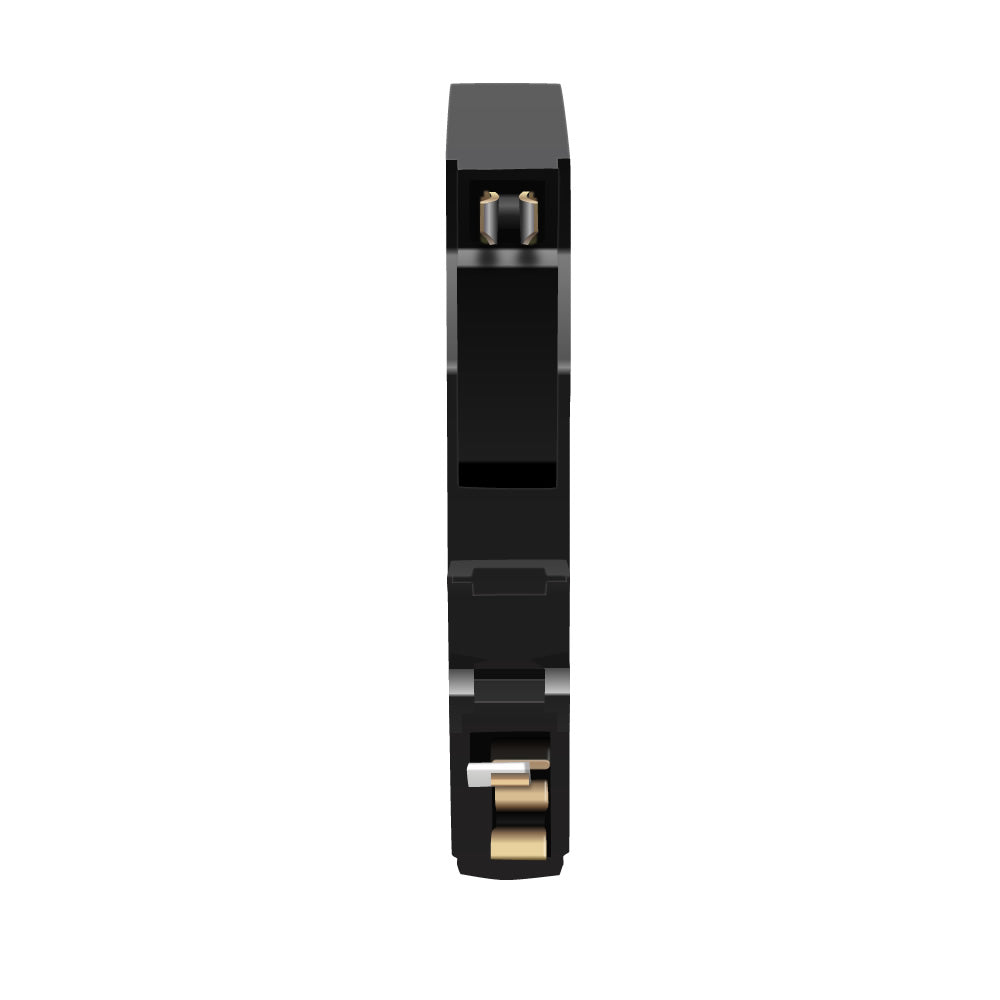

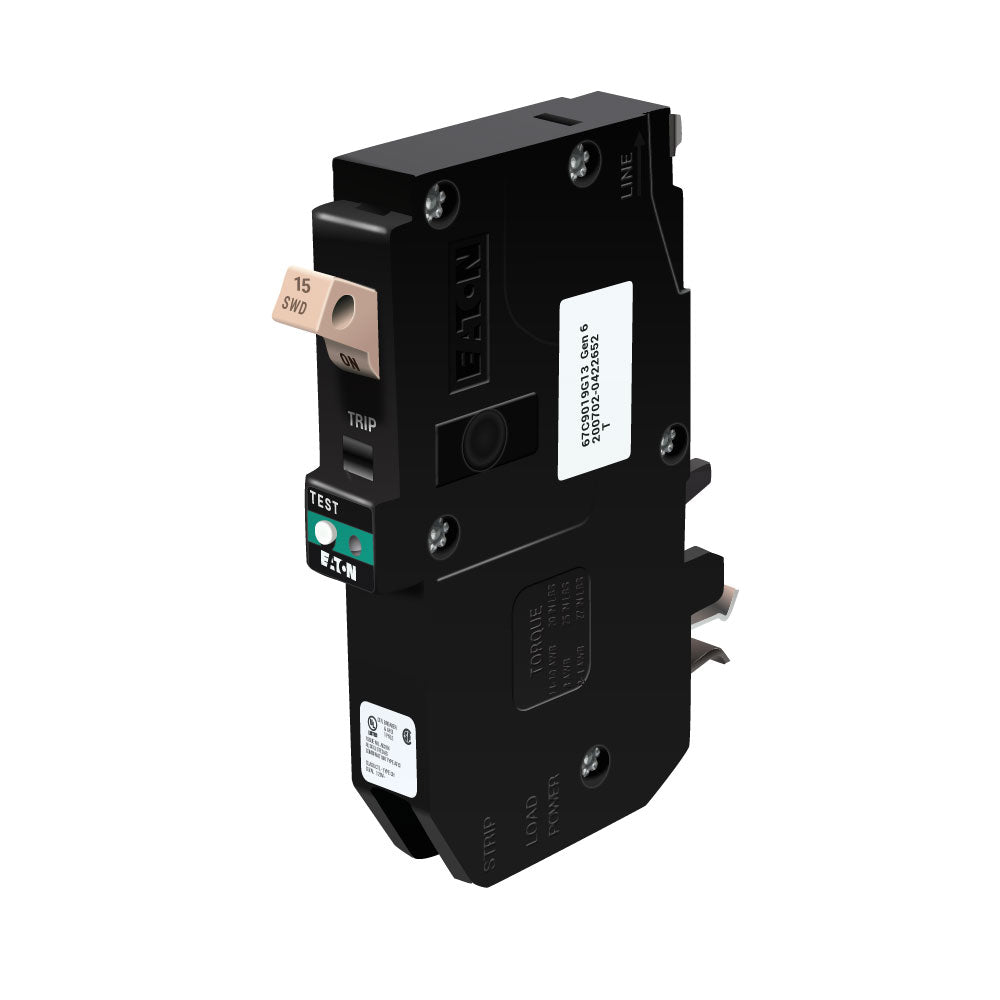

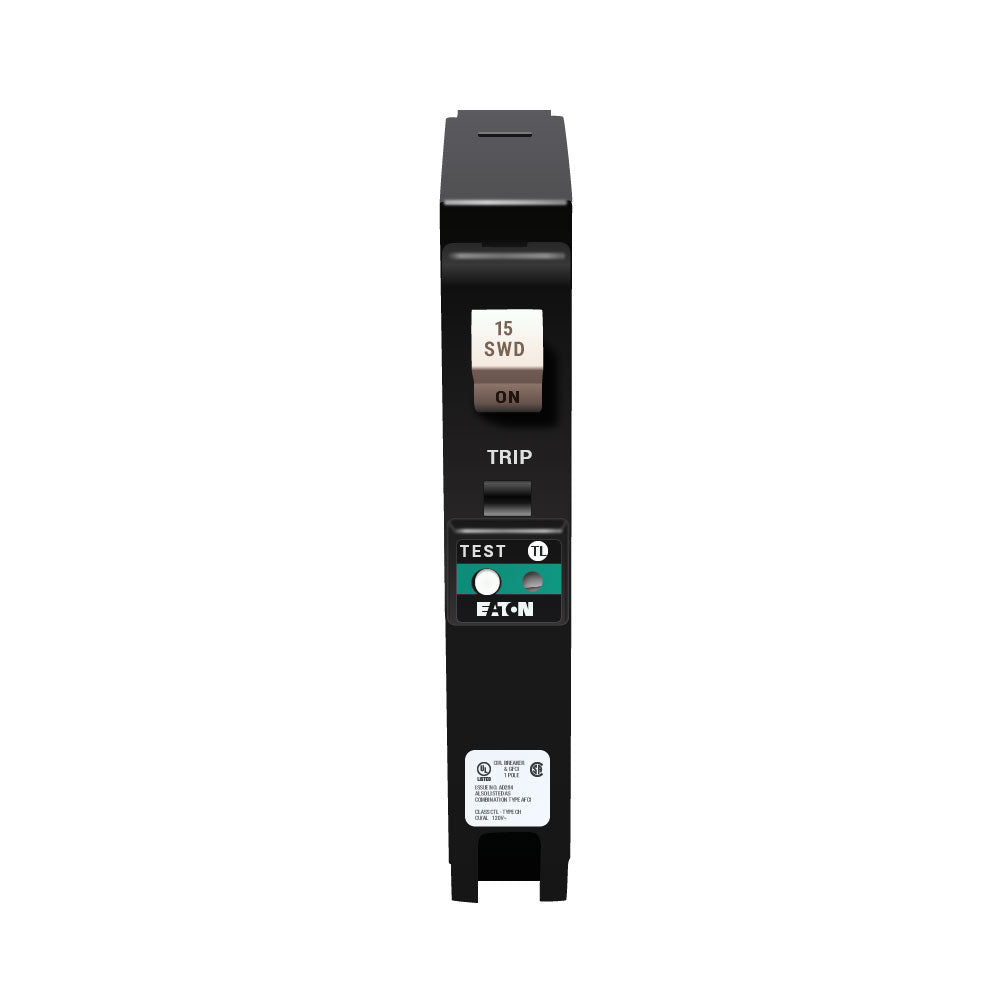

Cutler Hammer CHFP115AF - AFCI Breaker 15A 1-Pole 120V

Price
Regular price $31.48
Regular price $563.20 Sale price $31.48
Save $531.72
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
The Cutler Hammer CHFP115AF is a single-pole, plug-in arc fault circuit interrupter (AFCI) breaker designed to provide enhanced protection against arc faults and overloads in 120V AC residential branch circuits. It features a 15A thermal-magnetic trip with long-time and instantaneous (LI) functions and a 10kA interrupting rating at 120V, housed in a compact CH-frame design measuring 3.5" x 1.2" x 6.1" and weighing 0.45 lb. This breaker is constructed for plug-in installation in Type CH loadcenters, utilizes a pigtail connection, and accepts wire sizes from 14 to 6 AWG. It is certified to UL 489 and is HACR rated for heating, air conditioning, and refrigeration equipment, with an operational temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: CH-Frame, Plug-In, Molded Case Circuit Breaker with Arc Fault (AFCI) Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Trip Type: Thermal-Magnetic with Arc Fault (AFCI)
  • Interrupting Rating (AIC): 10kA @ 120V
  • Poles: 1
  • Phase: 1
  • Connection: Plug-In with Pigtail Terminal
  • Functions: Long-Time and Instantaneous (LI) Overload Protection
  • Wire Size Range (MCM): 14 AWG to 6 AWG
  • Dimensions: 3.5 in L x 1.2 in H x 6.1 in W
  • Weight: 0.45 lb
  • Panel Compatibility: Type CH Loadcenters
  • Standards & Certification: UL 489, HACR Rated
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)


Product Identification
  • UPC: 786689058920
  • GTIN: 00786689058920
