Cutler Hammer
Price
Save $458.65
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

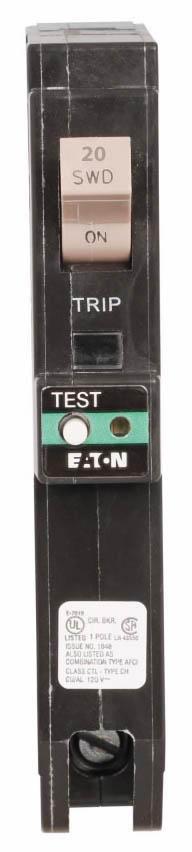

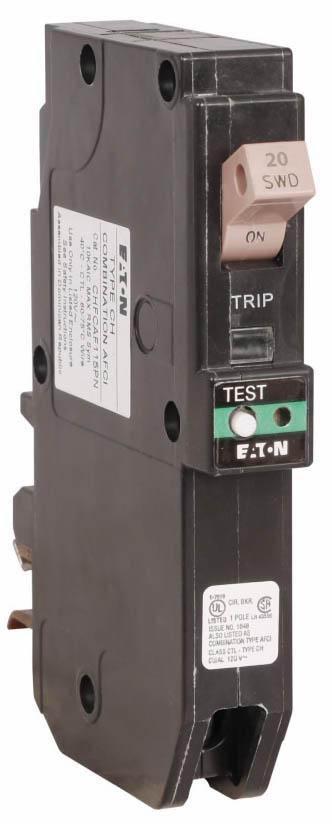

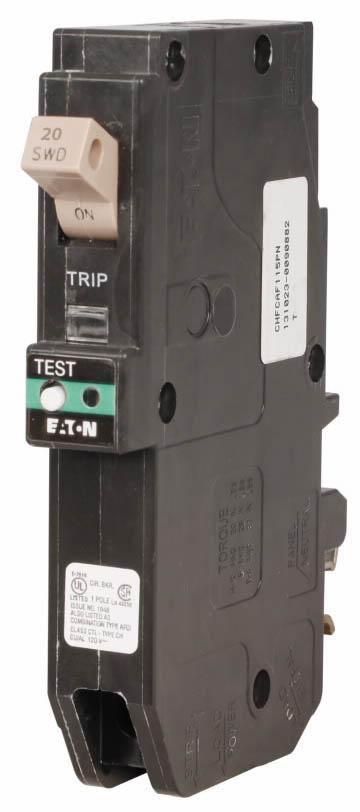

The Cutler Hammer CHFCAF120PN is a single-pole, molded case circuit breaker designed to provide reliable overcurrent protection for 120V AC branch circuits. It features a 20A current rating and a 10kA interrupting capacity at 120V, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection against overloads and short circuits. The compact, plug-in unit measures 3.5" x 3" x 1" and is constructed for operation in temperatures ranging from -25°C to 70°C (-13°F to 158°F). This UL-listed breaker is engineered for compliance with industry safety standards and is typically applied in industrial control panels, HVAC systems, and machinery requiring dedicated circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 3.5 in (L) x 3 in (H) x 1 in (W)
  • Standards: UL Certified
  • Applications: Industrial Control Panels, HVAC, Machinery Branch Circuits
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Certification: UL
  • Country of Origin: United States
  • Family: CH Series
  • Item Subcategory: Molded Case


Product Identification
  • UPC: 786685546209
  • GTIN: 00786685546209
