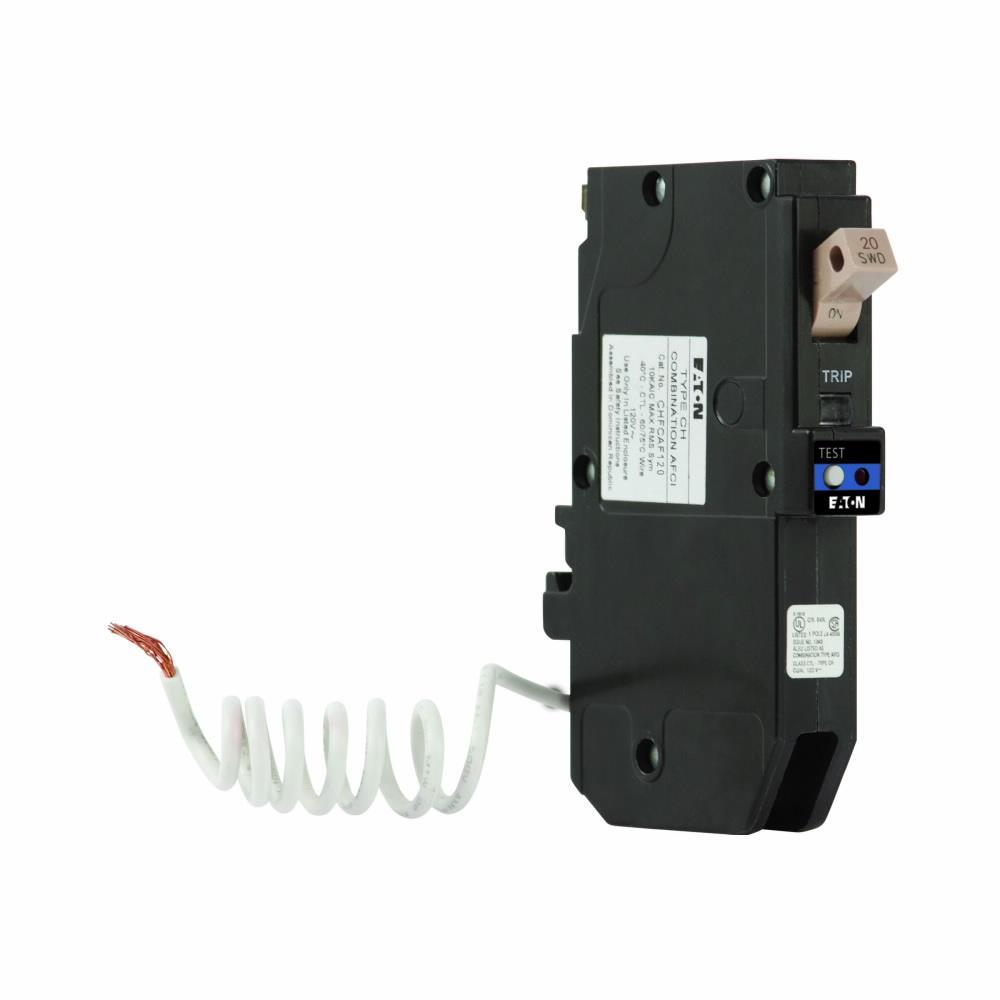

Eaton Cutler Hammer CHFCAF120 is a single-pole, plug-in molded case circuit breaker designed to provide reliable overcurrent protection for 120VAC branch circuits in residential and light commercial Type CH loadcenters. It features a 20A current rating and a 10kA interrupting capacity at 120V, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous response to overloads and short circuits. The compact unit measures 6" x 1.25" x 3.5" (L x H x W), weighs 0.5 lb, and features a pigtail terminal connection for simplified wiring. It is UL Listed and HACR rated for safety compliance, ensuring dependable performance in panelboard applications requiring single-phase protection.

Key Features & Specifications
  • Type: Single-pole, plug-in, thermal-magnetic molded case circuit breaker
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 6 in x 1.25 in x 3.5 in (Length/Depth x Height x Width)
  • Standards: UL Listed, HACR Rated
  • Applications: Branch circuit protection in Type CH loadcenters
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: CH
  • Breaker Type: CH
  • Phase: 1
  • AIC rating: 10kA@120V
  • Connection: Plug-In
  • Panel Type: Type CH Loadcenters
  • Terminal Connection: Pigtail
  • Certification: UL Listed, HACR Rated
  • Weight: 0.5 lb


Product Identification
  • UPC: 78668554618
  • GTIN: 00786685546186
