Eaton Cutler-Hammer CHF230ST - 2-Pole Circuit Breaker (30A, 10kA)
Eaton Cutler-Hammer CHF230ST - 2-Pole Circuit Breaker (30A, 10kA)

Eaton Cutler-Hammer CHF230ST - 2-Pole Circuit Breaker (30A, 10kA)

Cutler Hammer
Price
Save $188.80
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price

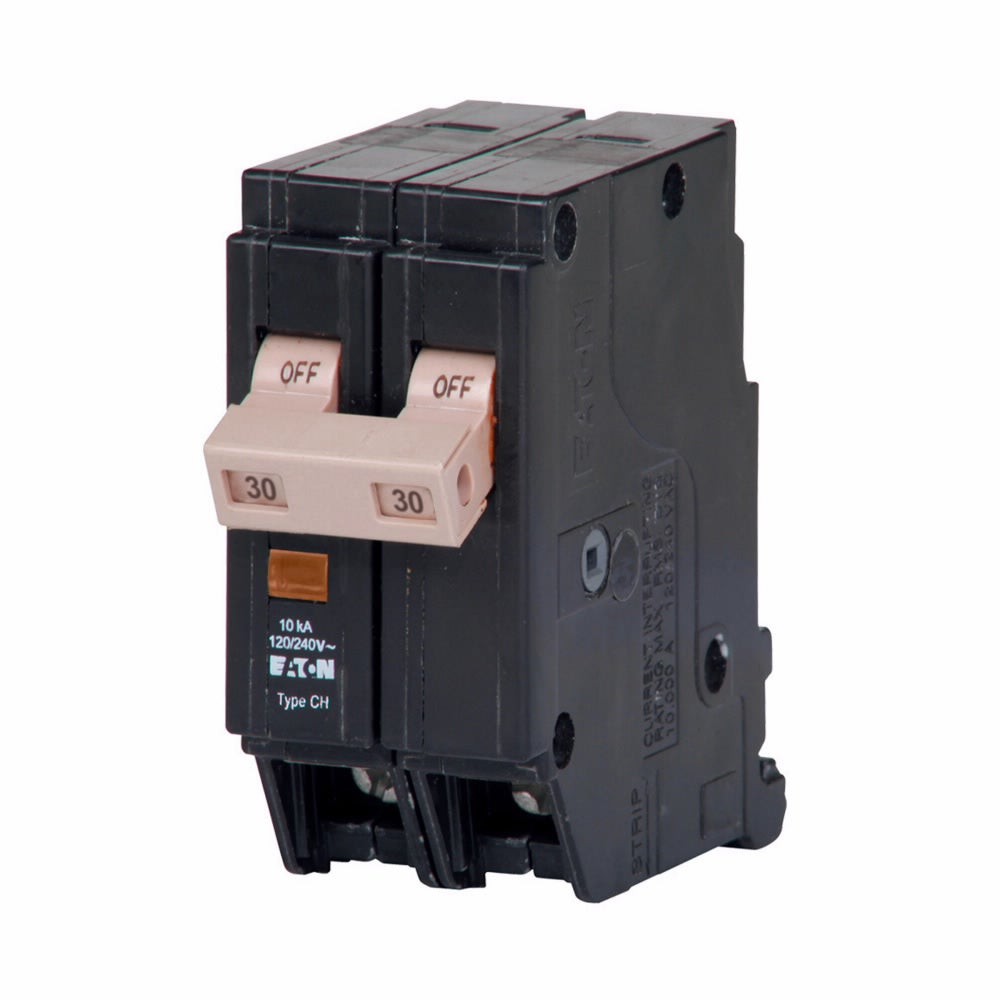

Eaton Cutler-Hammer CHF230ST is a two-pole, plug-in molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for 240VAC single-phase branch circuits. It features a 30A continuous current rating and a 10kA interrupting capacity at 240V, utilizing a thermal-magnetic trip unit for both long-time delay and instantaneous response to fault conditions. The unit is constructed with a compact CH frame, measures 4.8" x 3.5" x 3.5" (L x H x W), weighs 1 lb, and accepts copper or aluminum conductors from 14 AWG to 8 AWG. This breaker is UL-certified and is typically applied in industrial control panels, HVAC systems, and machinery where robust circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 4.8 in (Length/Depth) x 3.5 in (Height) x 3.5 in (Width)
  • Standards: UL Certified
  • Applications: Industrial Control Panels, HVAC, Machinery
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 30A
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: CH
  • Trip Type: Thermal-Magnetic
  • Wire Size: 14 AWG to 8 AWG, 14 AWG to 10 AWG, CU/AL
  • Certification: UL
  • Family: CH Series
  • Weight: 1 lb


Product Identification
  • UPC: 786685384849
