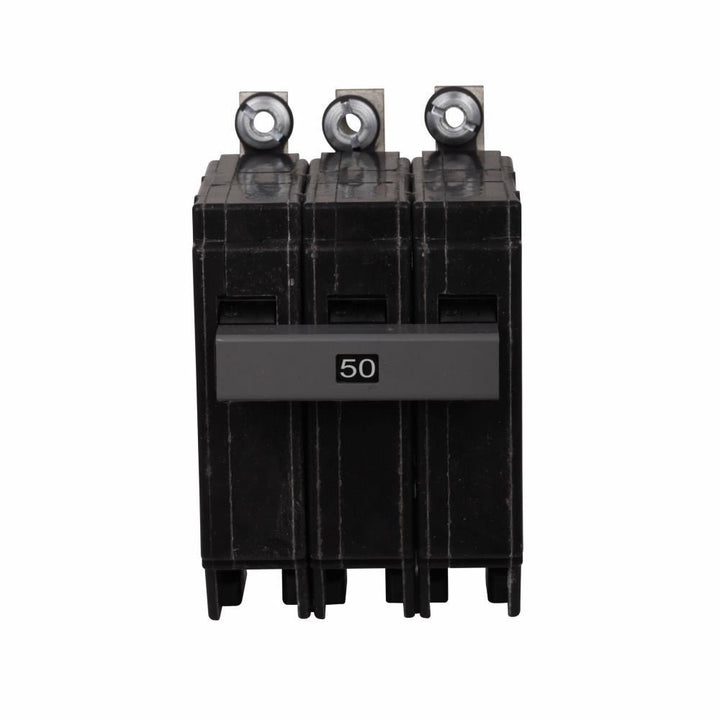

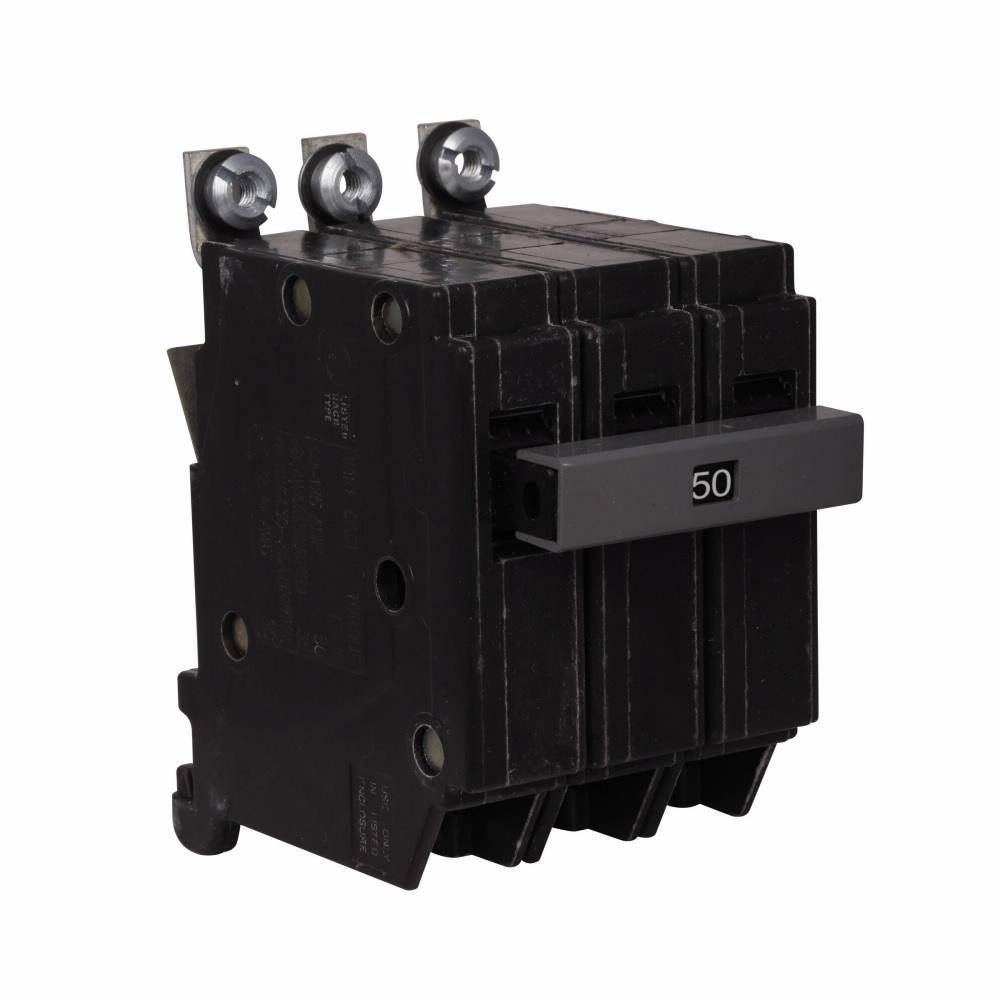

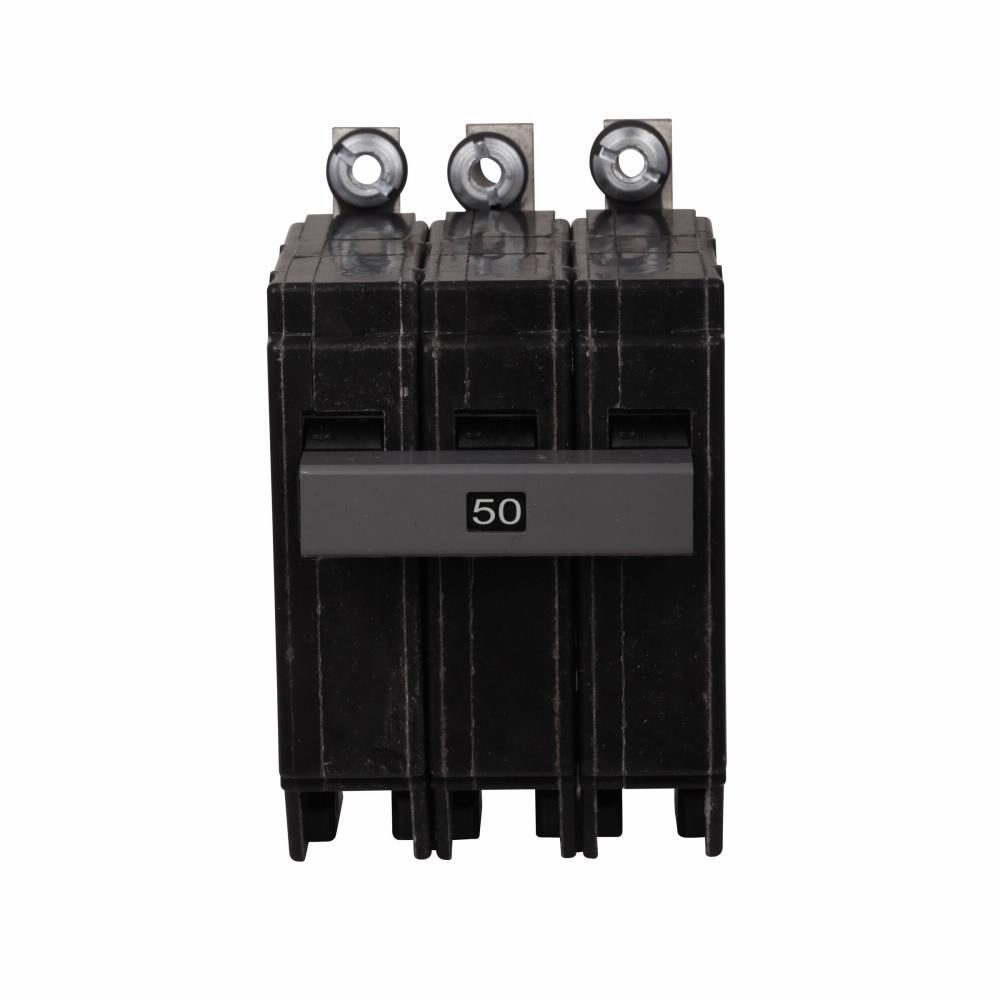

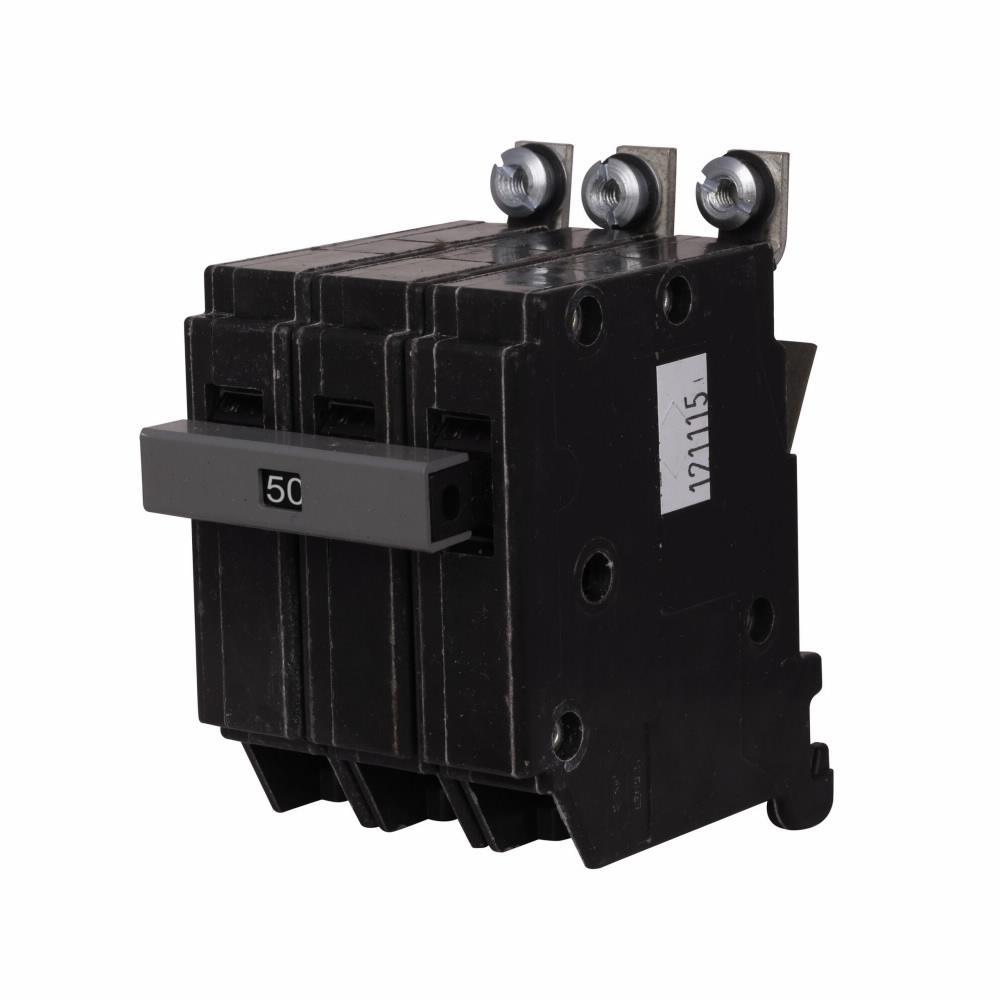

Cutler Hammer CHB350 - Molded Case Breaker 50A 3P (10kA AIC)
Cutler Hammer CHB350 - Molded Case Breaker 50A 3P (10kA AIC)
Cutler Hammer CHB350 - Molded Case Breaker 50A 3P (10kA AIC)
Cutler Hammer CHB350 - Molded Case Breaker 50A 3P (10kA AIC)
Cutler Hammer CHB350 - Molded Case Breaker 50A 3P (10kA AIC)
Cutler Hammer CHB350 - Molded Case Breaker 50A 3P (10kA AIC)

Cutler Hammer CHB350 - Molded Case Breaker 50A 3P (10kA AIC)

Cutler Hammer
Price
Save $235.72
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Cutler Hammer CHB350 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 50A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 1.5" x 0.2" x 1.1" (L x H x W) and weighing 0.05 lb. The breaker is UL 489 certified and utilizes a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions to ensure coordinated protection. It is engineered for industrial and commercial applications, capable of interrupting faults up to 10kA at 240V AC and accommodating conductors from 10 to 1/0 AWG for aluminum or copper wiring.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 50A
  • Dimensions: 1.5 in (L) x 0.2 in (H) x 1.1 in (W)
  • Standards: UL 489
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 3
  • Amperage: 50A
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Wire Size: 10-1/0 AWG (Aluminum/Copper)
  • Certification: UL 489
  • Weight: 0.05 lb


Product Identification
  • UPC: 782113112633
  • GTIN: 00782113112633
